APPLCAITION
It is suitable for food packaging, hardware packaging, medical supplies packaging, daily necessities packaging, electrical components packaging, chemical products packaging, sports goods packaging and other regular objects packaging, and can be customized according to customer needs.
TECHNICAL PARAMETERS

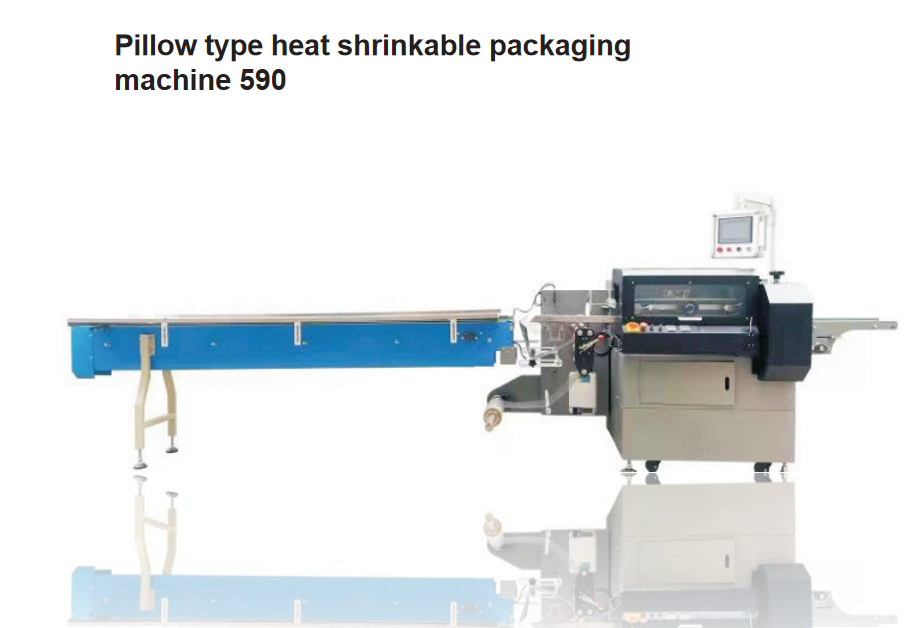

Type ：DMZB -590RSMX
Film width：Max：585mm
Bag length：100 -6000mm
Bag with：70- 195mm
Product height：Max：130mm
Film roll diameter：Max：320mm
Packaging rate：20- 120bag/min
Power：220V，50/60Hz，5KW
Machine size：( L)5100×(W) 1200×( H) 1780mm
Machine weight：600Kg
PERFORMANCE CHARACTERISTICS
-Three servo control, bag length can be set and cut immediately, no need to adjust idling, one step in place, saving time and membrane.
-Man machine interface, convenient and fast parameter setting..
-Fault self diagnosis function, with clear fault display.
-High sensitivity photoelectric eye color mark tracking and digital input of sealing and cutting position make the sealing and cutting position more accurate.
-Independent PID control of temperature, better suitable for various packaging materials.
-Positioning stop function, no knife sticking, no waste of coating.
-The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
-All controls are realized by software, which is convenient for function adjustment and technical upgrading and never lags behind.
