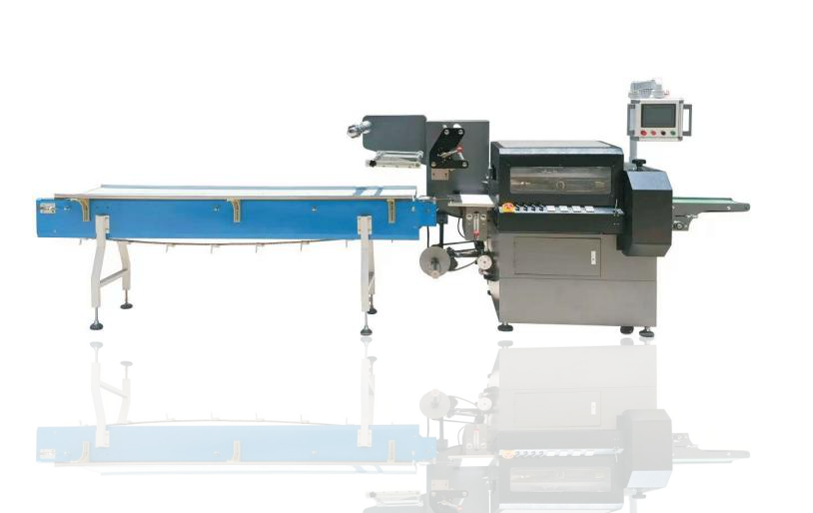

Pillow type heat shrinkable packaging machine 590

Pillow type heat shrinkable packaging machine 590

APPLCAITION

It is suitable for food packaging, hardware packaging, medical supplies packaging, daily necessities packaging, electrical components packaging, chemical products packaging, sports goods packaging and other regular objects packaging, and can be customized according to customer needs

TECHNICAL PARAMETERS

Type ：DMZB -590RSM

Film width：Max：585mm

Bag length：100 -6000mm

Bag with：70- 195mm

Product height：Max：120mm

Film roll diameter：Max：320mm

Packaging rate：20- 120bag/min

Power：220V，50/60Hz，5KW

Machine size：( L)5100×(W) 1200×( H) 1780mm

Machine weight：600Kg

PERFORMANCE CHARACTERISTICS

-Three servo control, bag length can be set and cut immediately, no need to adjust idling, one step in place, saving time and membrane.

-Man machine interface, convenient and fast parameter setting..

-Fault self diagnosis function, with clear fault display.

-High sensitivity photoelectric eye color mark tracking and digital input of sealing and cutting position make the sealing and cutting position more accurate.

-Independent PID control of temperature, better suitable for various packaging materials.

-Positioning stop function, no knife sticking, no waste of coating.

-The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

-All controls are realized by software, which is convenient for function adjustment and technical upgrading and never lags behind.
