Mortar delivery pump

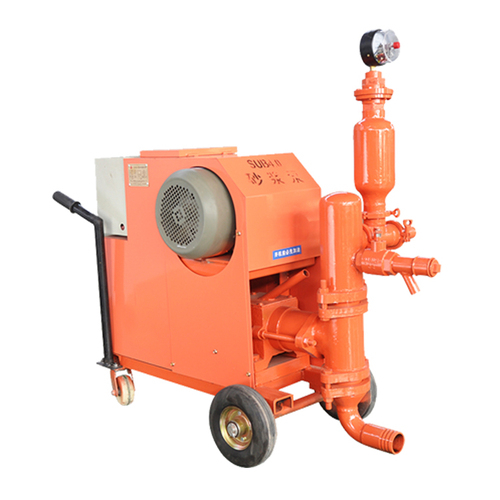

SUB4.0-mortar pump

Summary: This machine is a new generation of mortar conveying product that has been comprehensively developed for many years. It mainly has the advantages of small volume, light weight, large displacement, large pressure, large passing particles, etc. It is an ideal mortar conveying equipment with stable operation, material saving, energy saving and convenient handling. It is mainly used for anchor cables, anchor rods, grouting, foundations, bridges, tunnel grouting and various grouting materials.

Grout output: 4m ³/ h

Horizontal conveying distance: 150m

Vertical conveying distance: 80m

Working pressure: 6 MPa

Main engine power: 5.5kw

Operating weight: 260kg

appearance：1100*450*800

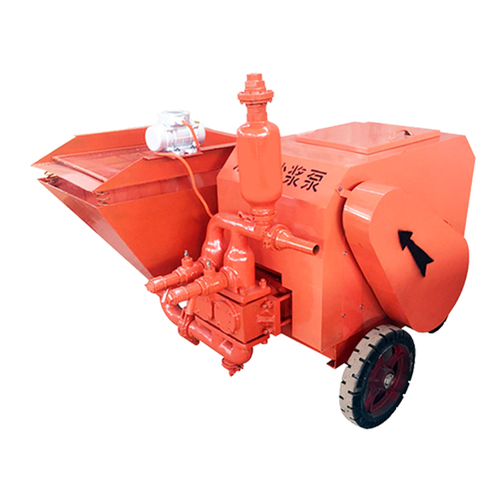

SUB-8.0C-type mortar delivery pump

Summary: This product is a plug type mortar delivery pump improved by our factory with the introduction of advanced German technology. It has the characteristics of high pressure, no pulse, high production efficiency, wide range of application, advanced technology, simple operation, flexible movement, compact structure and easy maintenance.

Grout output: 4-8m ³/ h

Horizontal conveying distance: 250-300m

Vertical conveying distance: 60m

Working pressure: 8 MPa

Operating weight: 960kg

Mortar ratio: 1:2.5

Grouting power: 3kw

Vibrator: 0.75kw
