Radar Level Transmitter

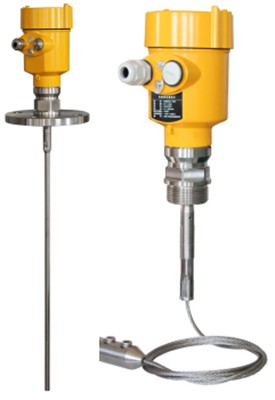

Guided wave radar level transmitter

Guided wave radar transmitter is a measuring instrument based on the principle of time travel, the radar waves travel at the speed of light, the running time can be through the electronic components are converted into level signals. Probe a high-frequency pulse and along with the cable or rod probe propagation, when the pulse meets the material surface is reflected back by the receiver instrument within the receiving and the distance signal into a signal.

Suitable for Medium: Liquid, solid powder
Application: Liquid and solid powder measure,
complicated process conditions
Explosion-proof Grade: Exia IIC T6 Ga/Exd IIC T6 Gb
Measuring Range: 30m
Frequency: 500MHz-1.8GHz
Antenna: Single cable or single rod antenna
Accuracy: ±10mm
Process Temperature:（-40～250）℃
Process pressure:（-0.1～4）MPa
Signal output:（4～20）mA/HART
The Scene Display: Four LCD/Can be programmed
Power Source: Two-wire (DC24V)
Four-wire（DC24V/AC220V）
Shell: Aluminum /Plastic
Connection: Flange (optional) / Thread
