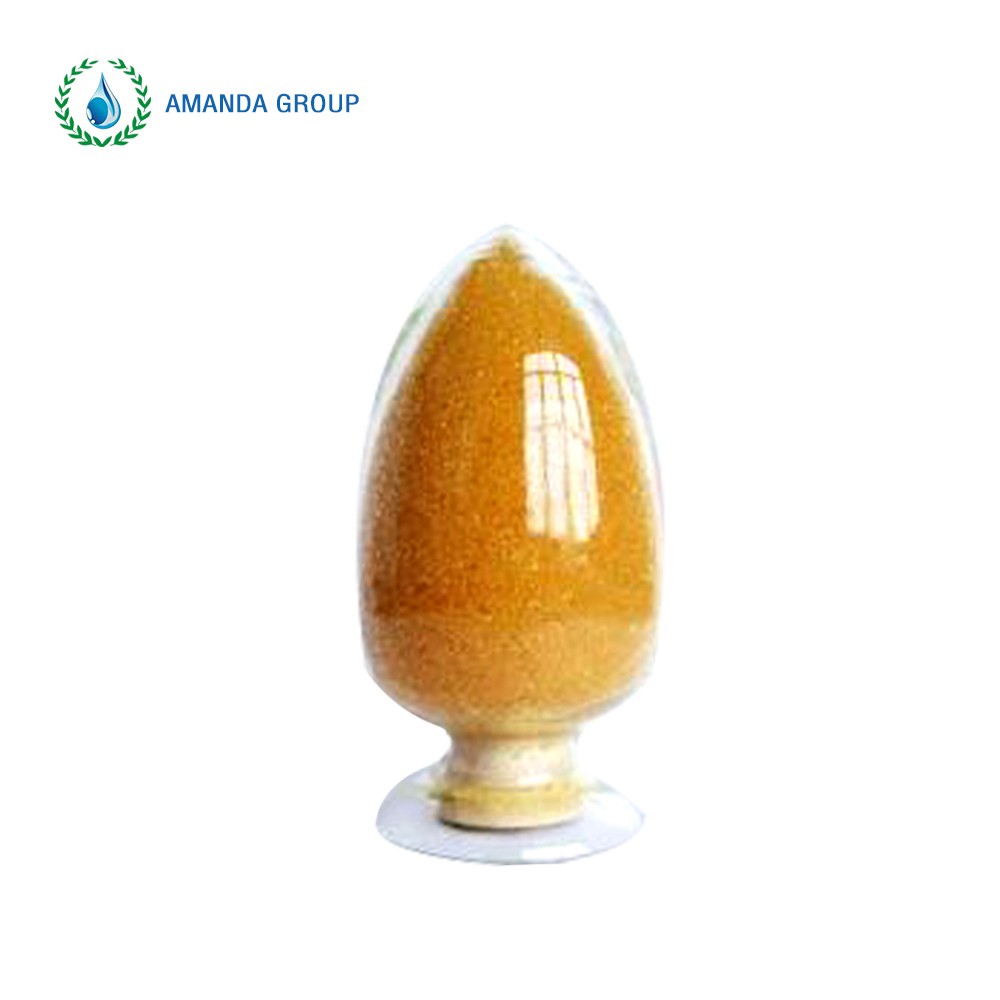

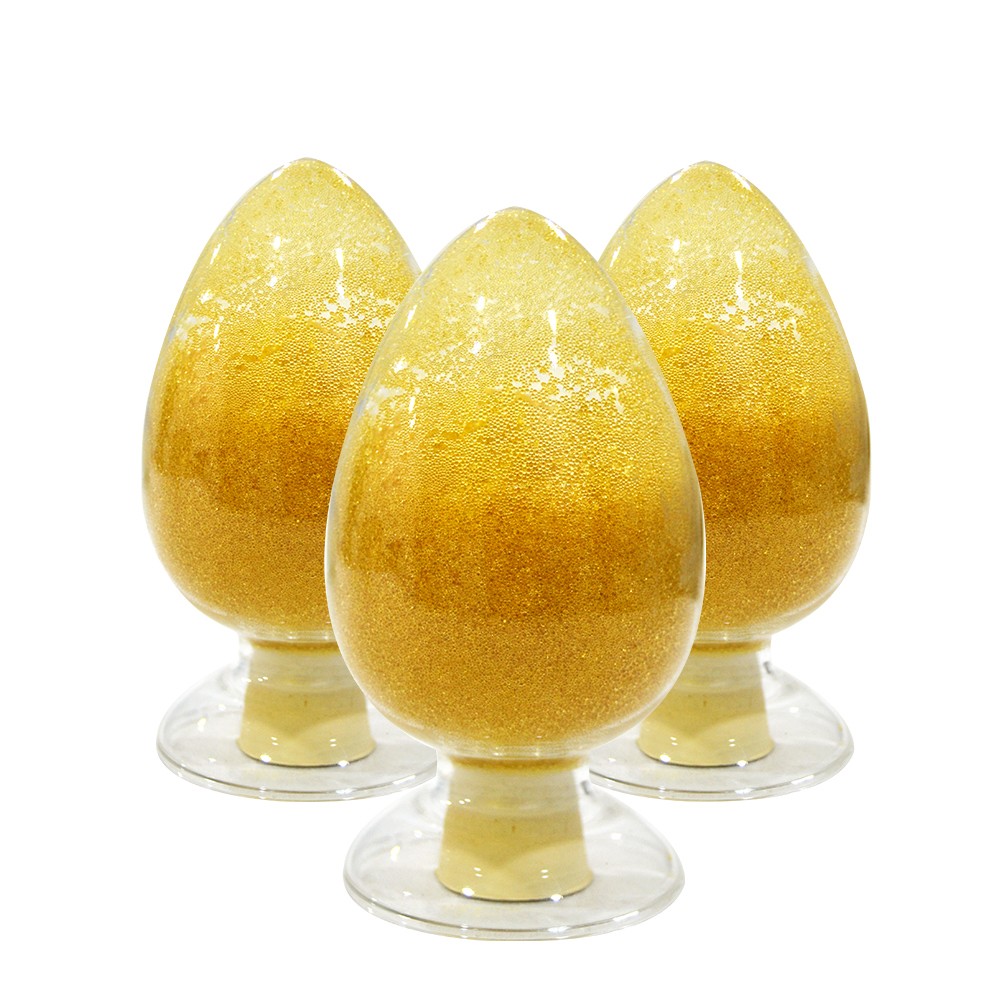

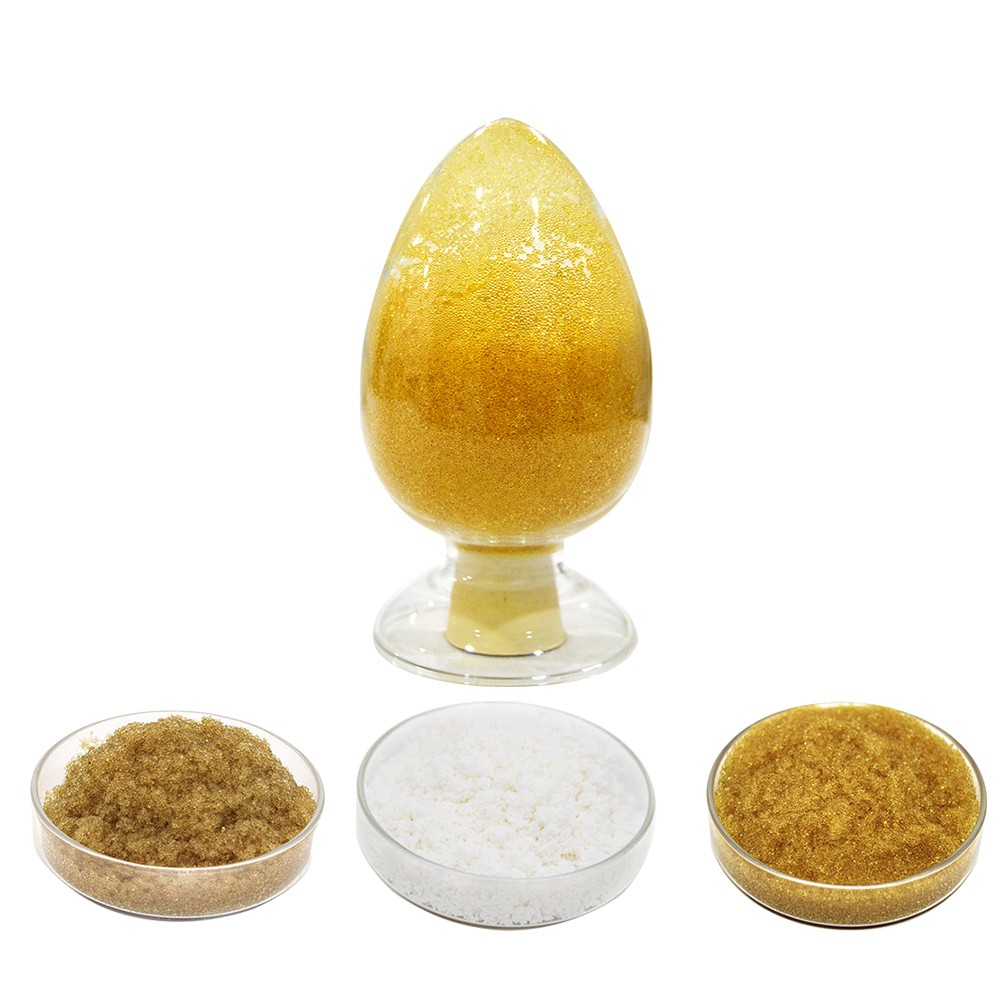

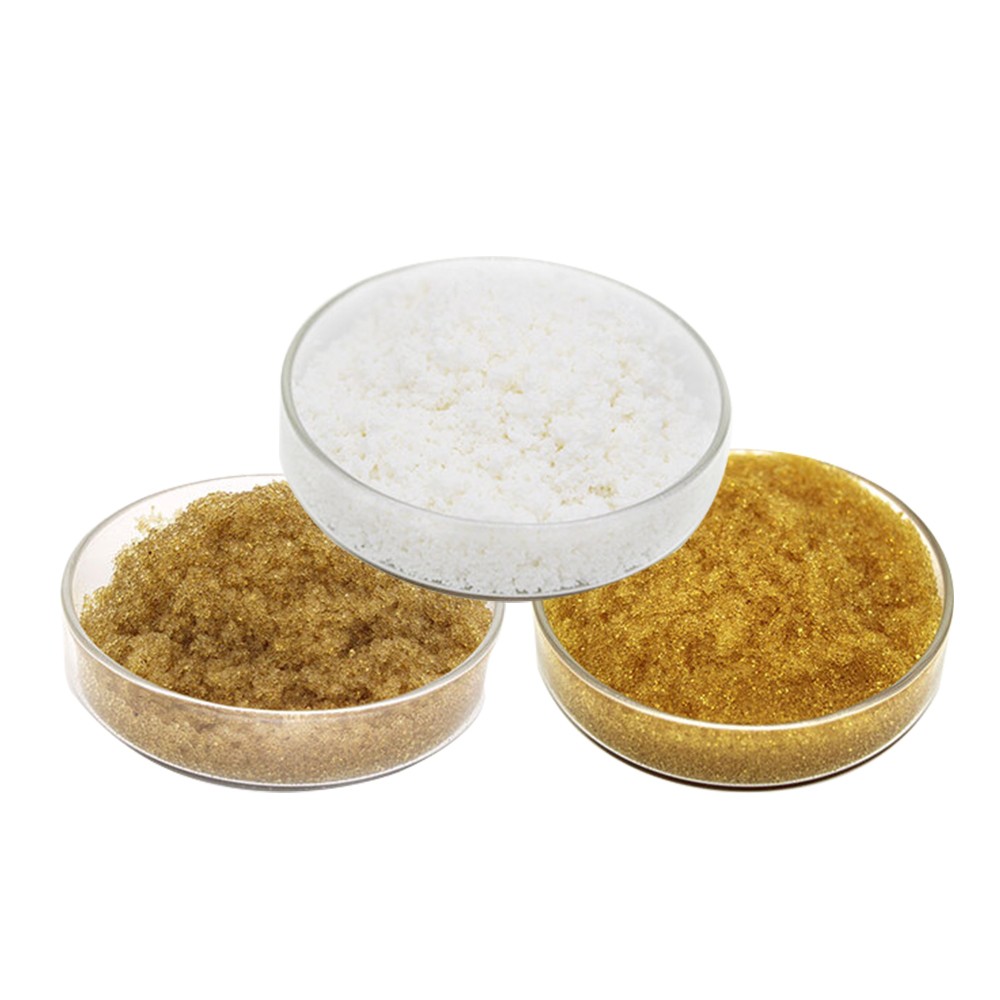

001*10 Ion Exchange Resin

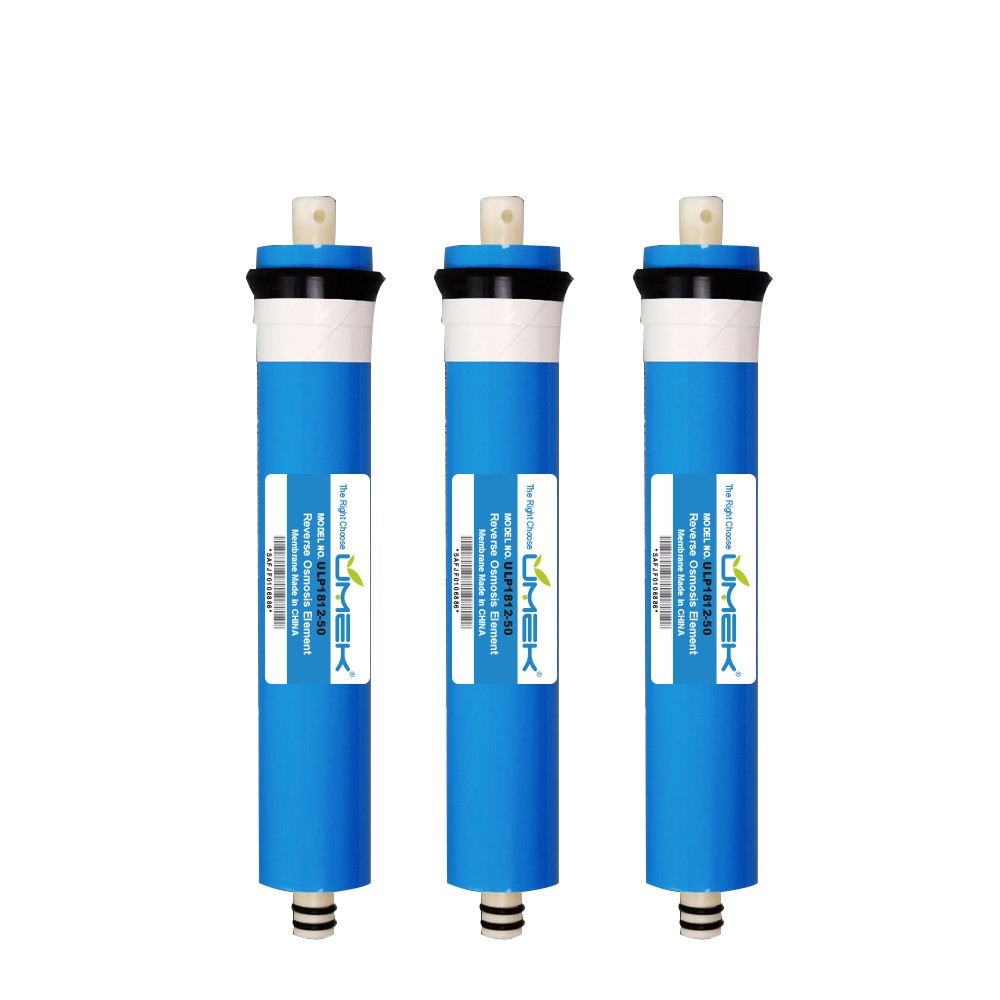

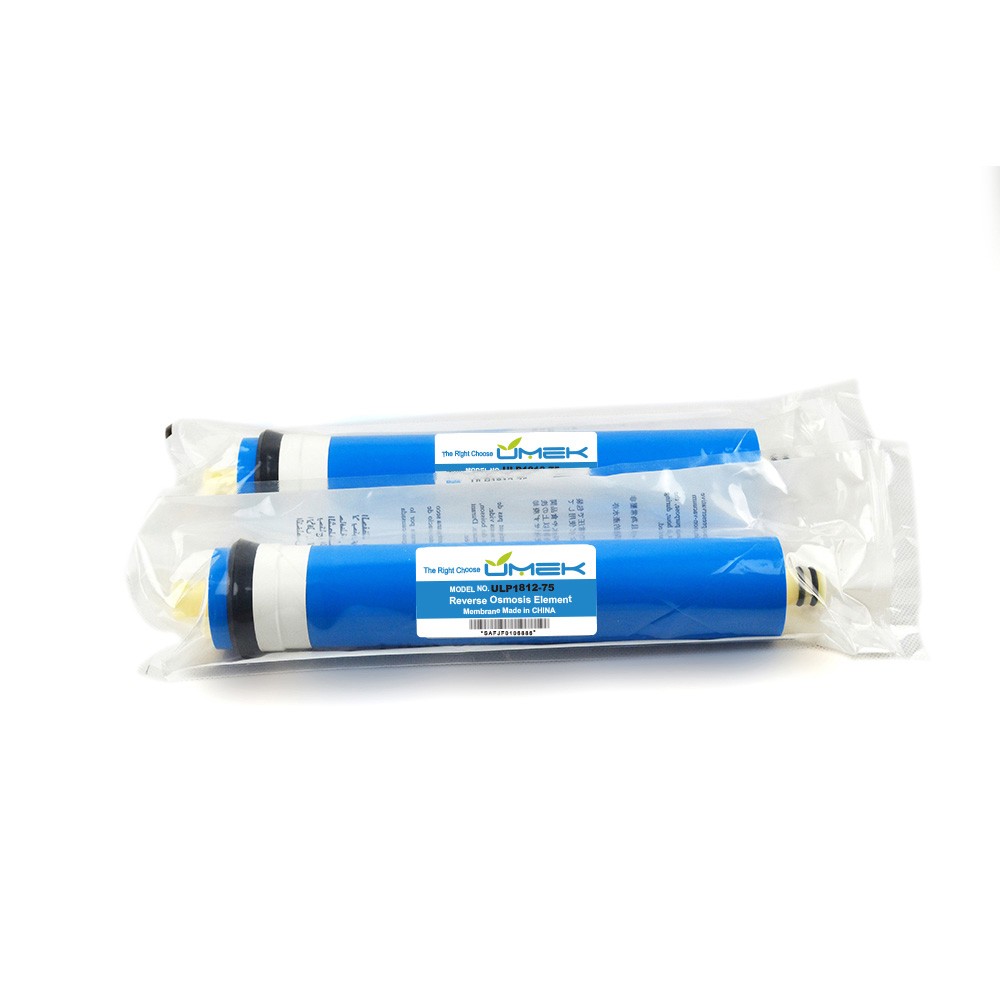

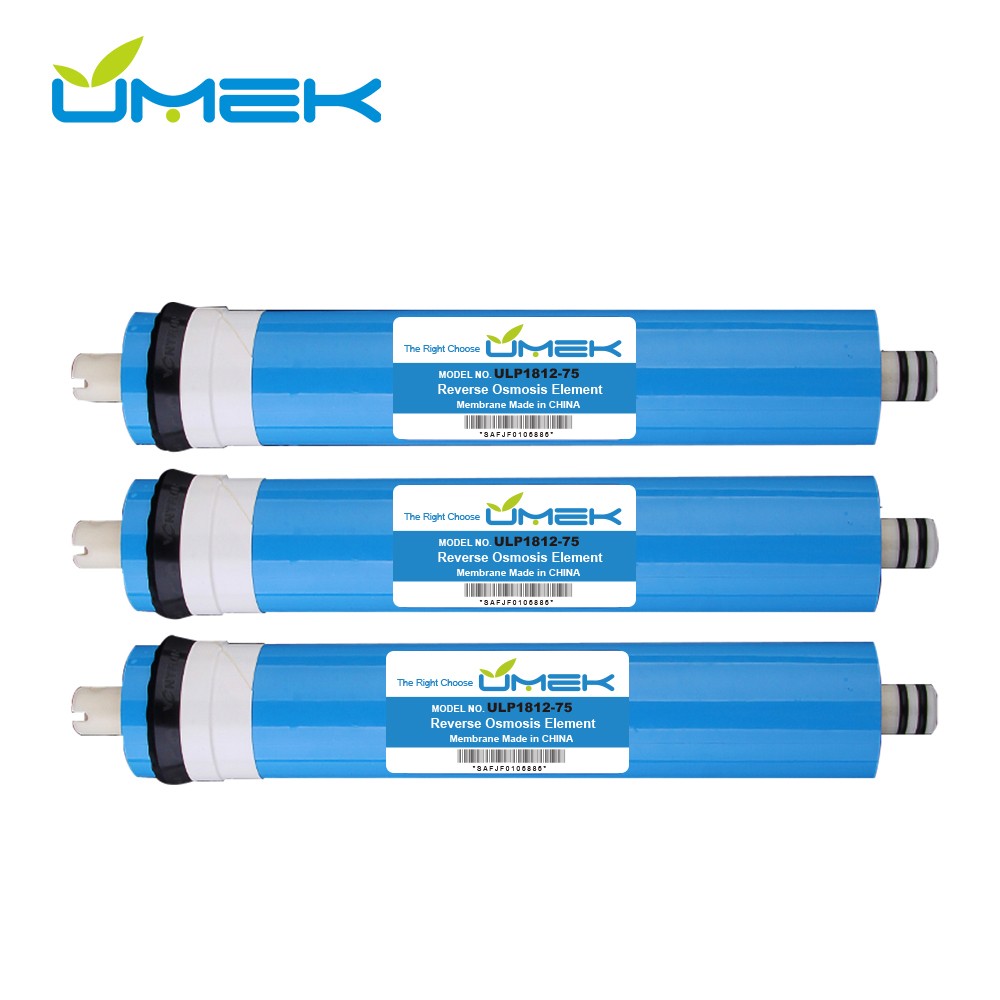

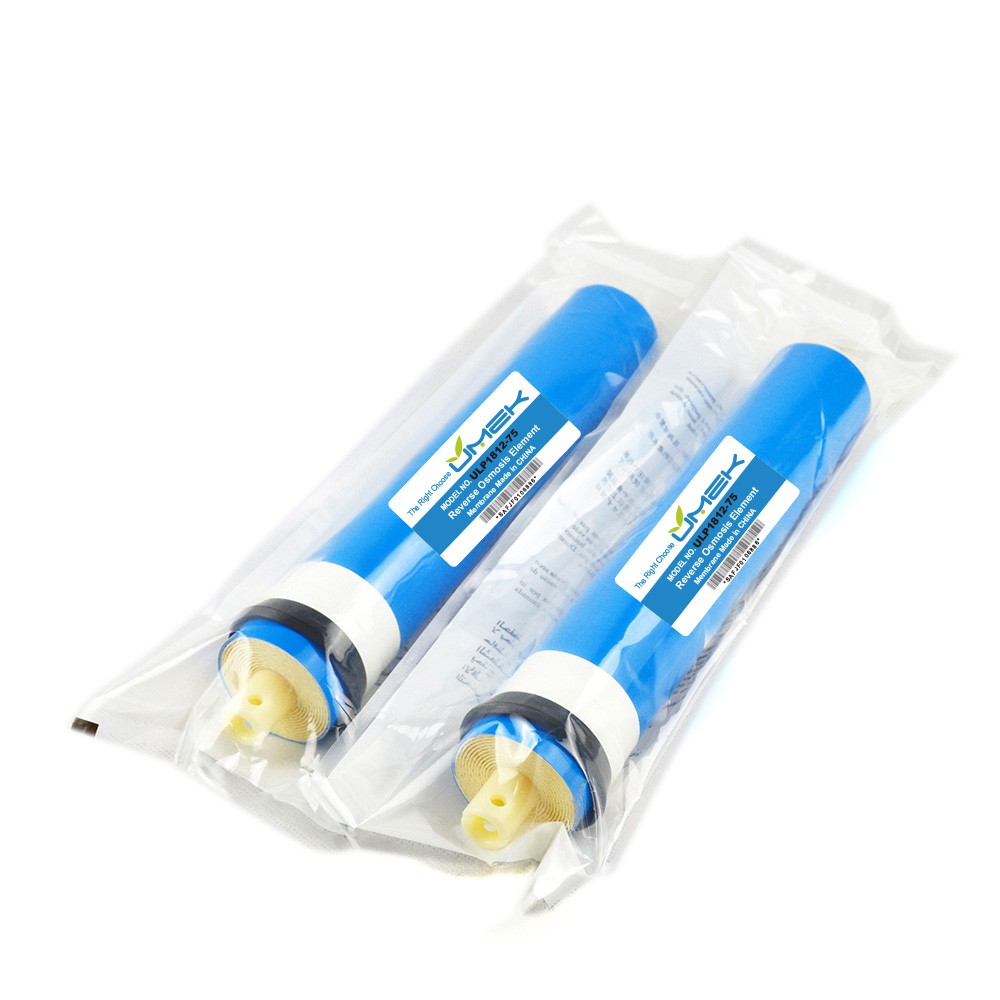

Commercial 100gpd RO Membrane

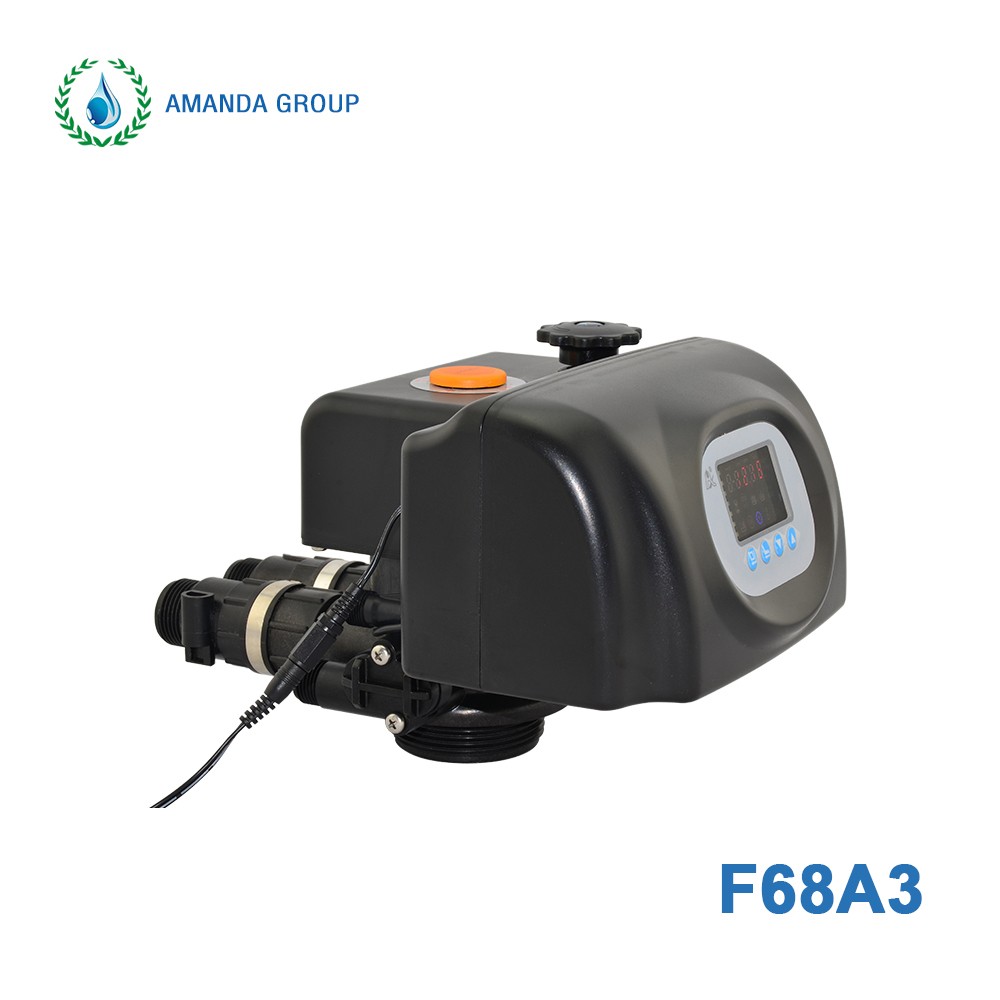

automatic softener valve

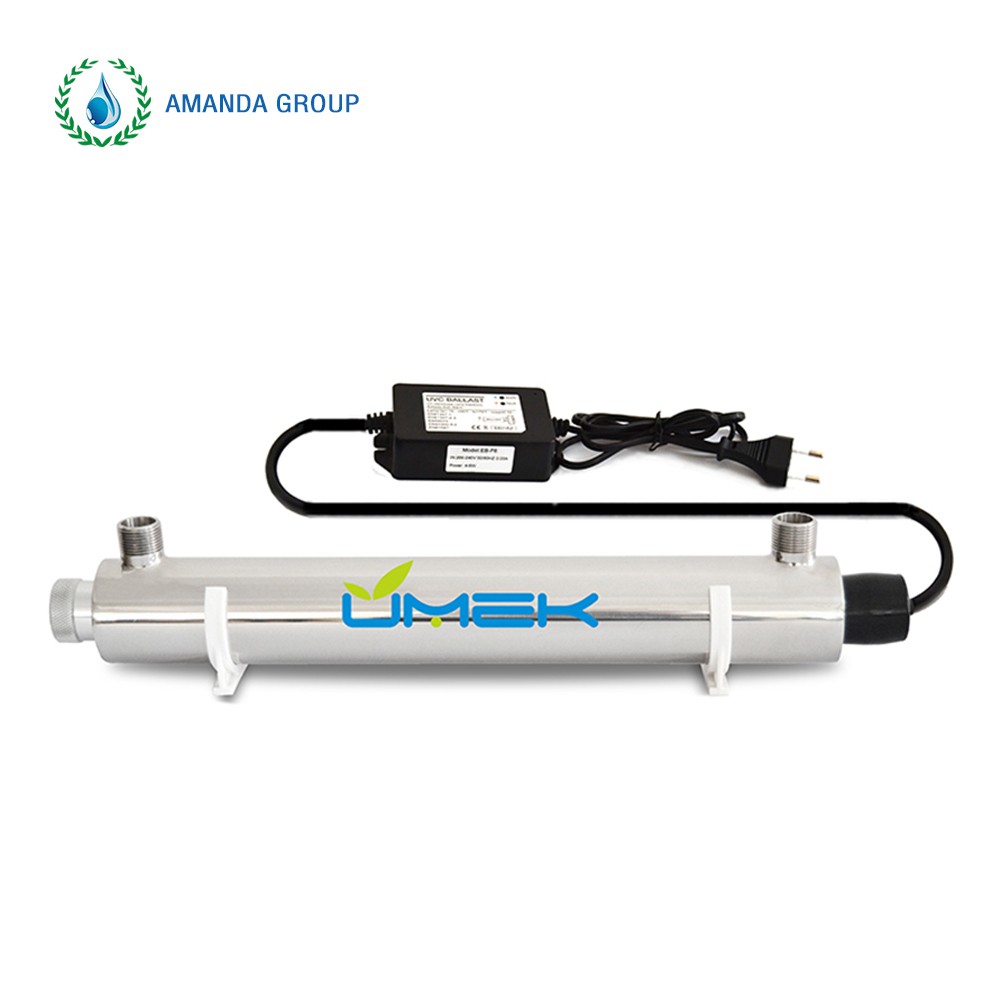

25 watt uv sterilizer

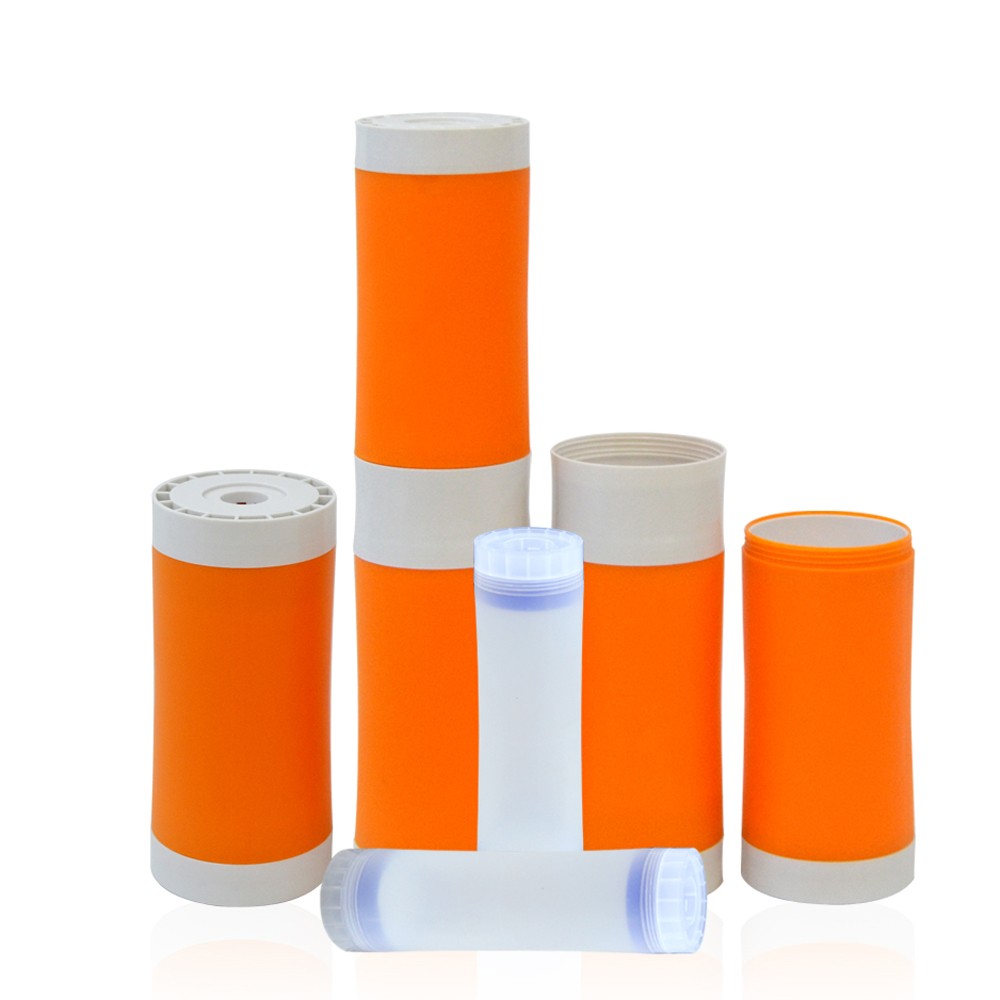

PP water filter cartridge

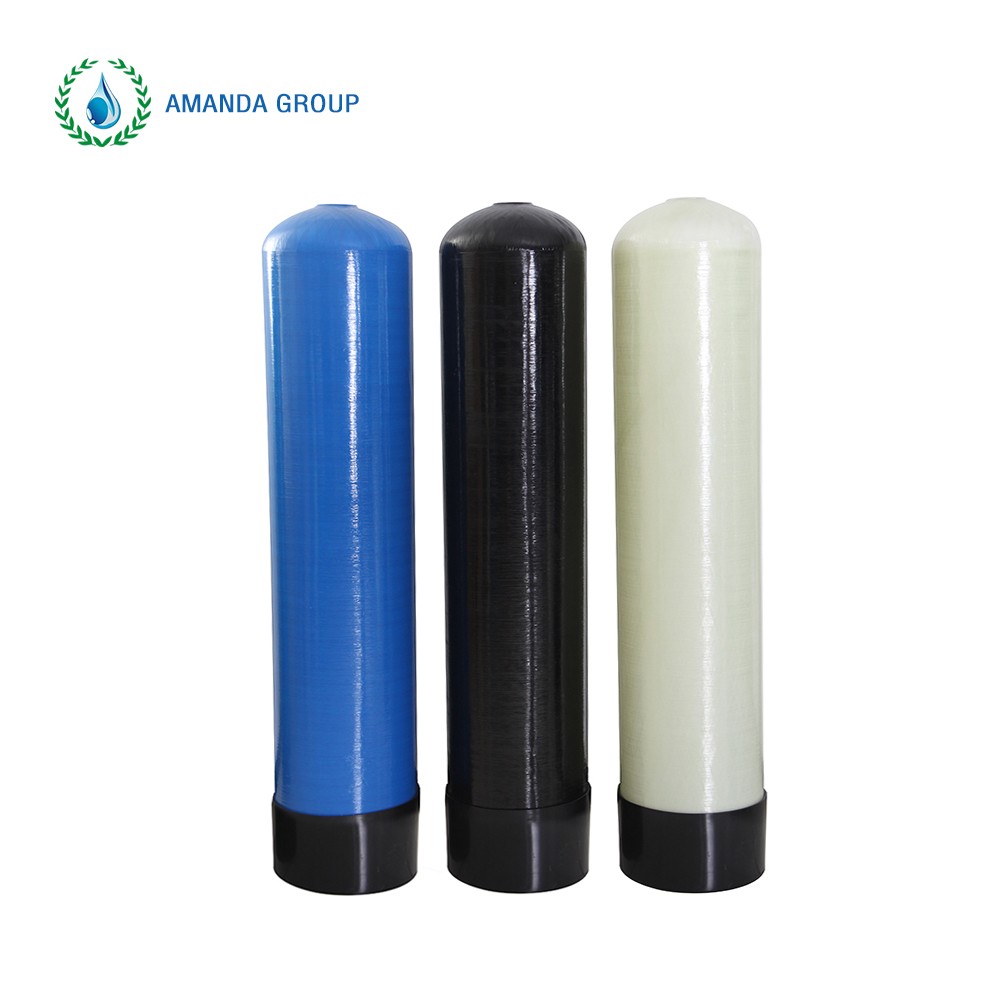

Waterproof FRP Tank cover
household uv sterilizer
3 Stage Water Filter System
- Application：
- Water Treatment
- Tank size：
- 6"-18"
- Water Pressure：
- 0.15Mpa~0.6Mpa

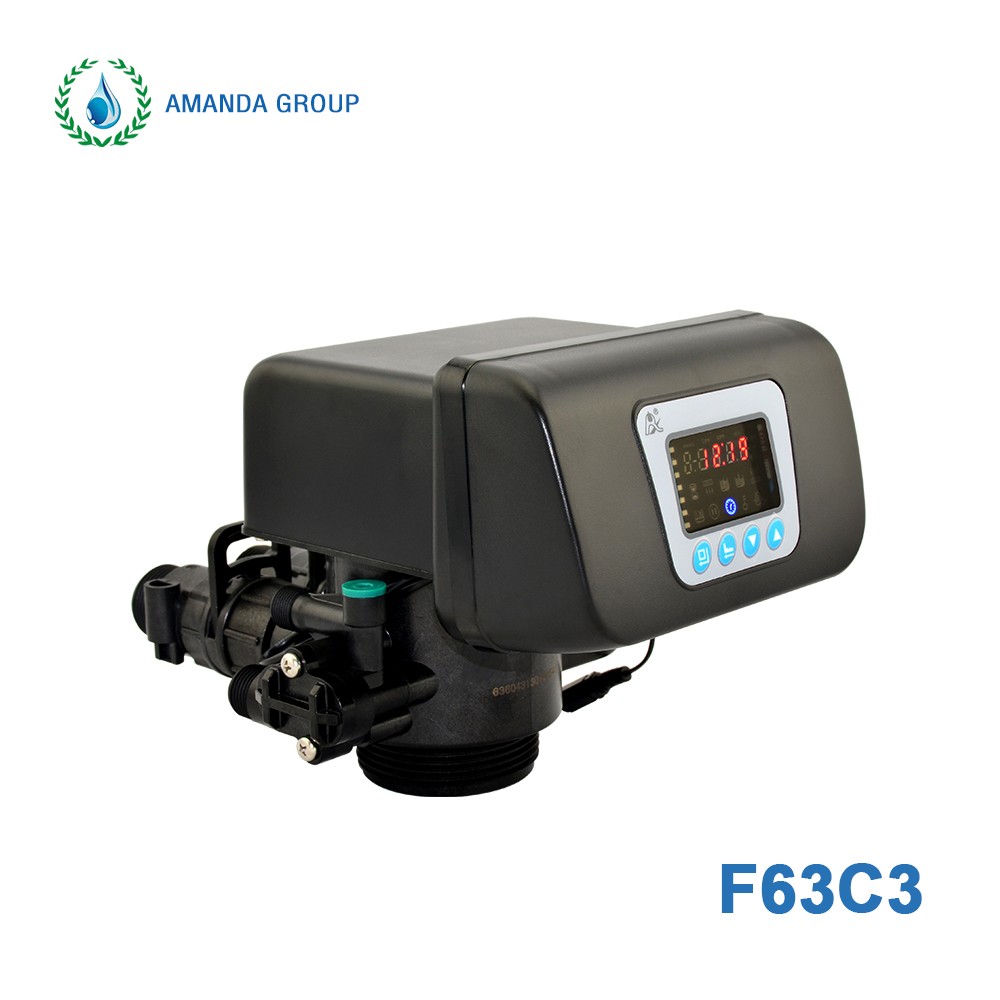

Runxin F63C3 Automatic Control Multi port Valve for Softener
Runxin valves innovative design of high degree pottery sealing and multi flow channels have own patent for invention in 18 countries, such as USA, Russia, South Korea, Mexico, Australia, India, Philippines and ten countries membership of the EU including Germany, Italy, France, Netherlands. Products have achieved the certificates of the National Sanitation Foundation, the European Union CE and RoHS certification.
Runxin valve is one of the three largest control valve manufacturers in the world. Its products are divided into automatic control valve, manual control valve, Runxin filter valve, Runxin softening valve, Runxin time control valve and Runxin flow control valve.
Characteristics of Runxin Control Valve :
1. end face sealing structure
A. Moving plate is ceramic
B. High strength synthetic material is used for the setting
C. For various softener valves, partial balance structure is adopted to prevent the torque increase of sealing surface due to the increase of water pressure.
2. pressure operation
Because two high flatness sealing plates are used for the lubrication valve, they are mutually compatible with rotary seals, and can be operated directly with pressure when each work level is switched.
3. no raw water bypass
The control valve automatically blocks the outlet pipe of the water softener or filter during regeneration or cleaning, and prevents the raw water from entering the system.
4. simple assembly
The valve is mainly composed of valve body, dynamic sealing plate, fork, pressing plug, etc; The complex parts valve body is made once, with less processing links and high dimensional stability.
The positioning accuracy of each working position is higher by directly fixing it on the valve body.
During installation, each part is limited and will not be installed incorrectly.
5. there are many kinds of jet machines
The ratio of the salt absorption to the total flow rate of the outlet is between 25% and 35%.
Each tank has a jet to match.
