The1year
- gauge：
- 600、762、900
- Scope of application：
- Mines and underground roadways transport ore
- Convey items：
- Gold mine, coal mine, sand and gravel, phosphate mine, coal mine

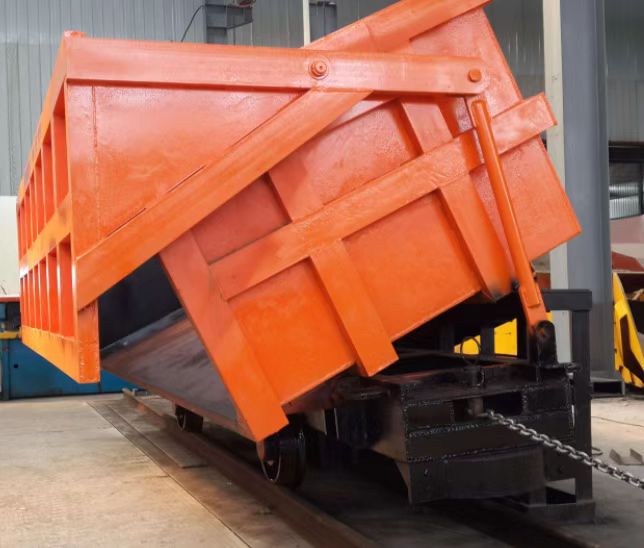

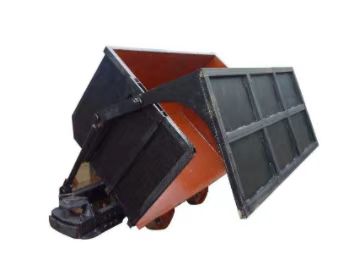

The side unloading mine truck is driven by a tractor and a winch, and can be combined with rock drilling, slagging machine [vertical claw rock loader] and ore slip gate discharge system, the ore block degree does not exceed 500 mm, according to the load volume of the mine car, after loading, it is led to (running speed does not exceed 1m/s) special curved rail discharge mechanism by traction power. When the box is turned horizontally to the maximum discharge angle, the doors are also opened to the maximum. At this time, the unloading of the minecart has been completed. On return, the cart automatically closes into place again through the curved rail door.
The side dump type minecart dump form is divided into curved rail type and hydraulic type for users to choose. Search for Da Zhi Underground Technology Co., Ltd. to contact.
Side-loading mine cart is mainly suitable for metallurgy, mine, coal mine, railway, highway road, underwater culvert, underground mine flat lane and military culvert and other engineering excavation, construction, supporting simple and efficient slag transportation equipment. Side unloading mine cart driven by tractor and winch, can be combined with rock drilling, vertical claw rock loader and ore slip gate discharge system, ore block degree does not exceed 600 mm, according to the load volume of the mine car, after loading through traction power to (running speed not more than 1m/s) special curved rail discharger. When the trunk is turned horizontally to the maximum discharge angle, the door is also opened to the maximum program. At this point, the minecart unloading is fully completed. On return, the cart automatically closes into place again through the curved rail door.
The side dump minecart is an efficient, self-unloading operating equipment, which is incapable and needs to be used with a traction locomotive. The car is suitable for tunnel, indoor and open-air rail transportation operations in mines, tunnels, engineering construction and other departments, with a track gauge of 600mm, 762mm and 900mm, for users to choose. The vehicle is suitable for loading ore and sand with a block size of more than 500mm, and its free fall height should be less than 1m (from the top surface of the car box) when loading block materials.
