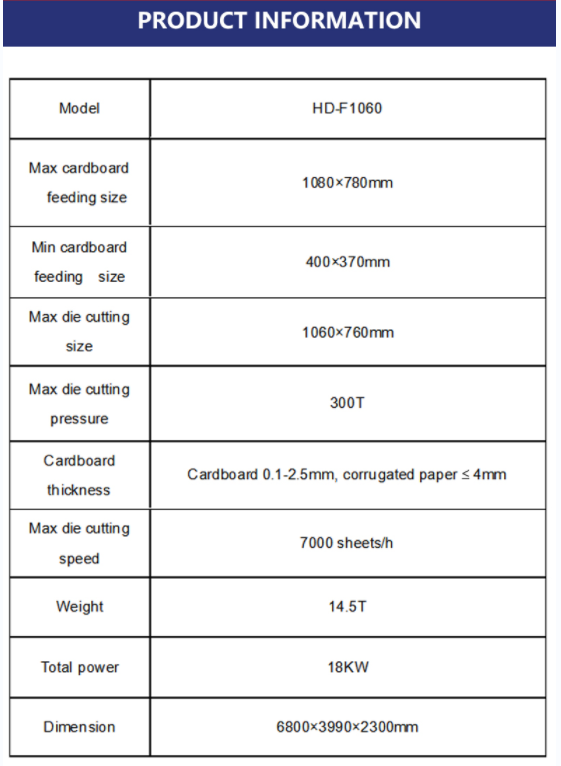

- Model：
- HD-F1060
- Max cardboard feeding size：
- 1080×780mm
- Min cardboard feeding size：
- 400×370mm

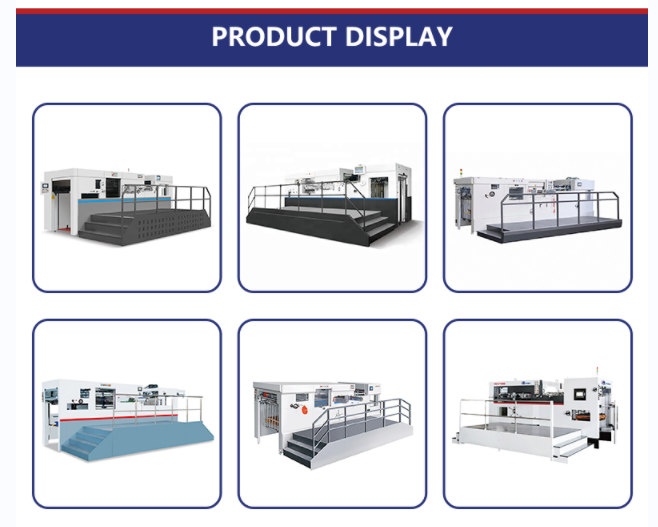

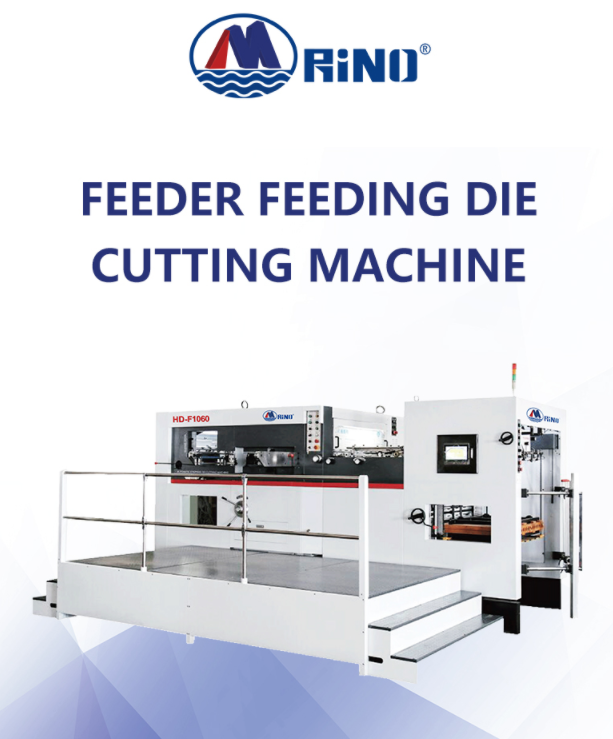

Carton Box Die Cutting Machine
The full-automatic die-cutting machine can process paper, cardboard and corrugated paper, and is suitable for die-cutting indentation of paper boxes, cartons, paper trademarks, etc. In particular, all kinds of high-end and exquisite printed materials (such as cigarette boxes, wine boxes, gift boxes, cosmetic boxes, etc.) can be die-cut and indented on this machine to obtain exquisite and beautiful packaging products.

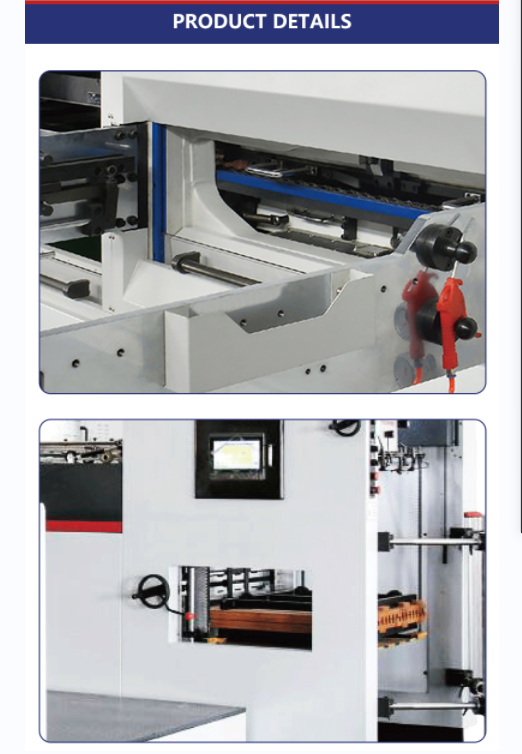

This machine realizes the automation of the paper feeding, die cutting, and paper delivery processes. Use the "human-machine interface" to display the machine's working speed, the number of processed sheets, the total running time and working status of the machine; realize the dynamic monitoring of the input points, output points and various faults of the programmable controller, so as to troubleshoot and operate more convenient. The preset technical device function can stop the air pump according to the preset number, and prompt to make a mark; the electronic cam composed of the encoder and the programmable controller is accurate and reliable, and the adjustment is convenient. The frequency converter is used to control the main motor, stepless speed regulation, stable operation, low noise, and energy saving. The machine also has automatic fault detection (including detection of double sheets, empty sheets, paper accumulation, falling paper, etc.), non-stop sampling functions, and high die-cutting pressure, high registration accuracy, and multiple sensors and safety protection devices. Ensure the normal operation of the machine and the safety of personnel.
The main drive system of the machine is equipped with pneumatic clutches, and a torque limiter (safety clutch) is installed on the main sprocket shaft to avoid injury and damage to operators and equipment due to emergencies, so as to ensure personal safety and equipment safety.
The machine is equipped with many safety protection devices in the whole machine. once a person touches or enters the area, the alarm device will automatically alarm and the equipment is in a shutdown state.
