The1year
- Voltage：
- 220V/380V/440V/as requirements
- Core Components：
- PLC,Pump,molds
- Warranty of core components：
- 18 months
63T Punching machine
open back inclinable mechanical press machine.
1. Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Standard Configurations
 |
Intergrally Forged frame ,copper tile |
Gear | |
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
Abouot the Punching machines we can offer 16T/25T/40T/63T/80T/100T/160T,which one do you want,pls contact with us is ok.
Our Company Main Roll Forming machines

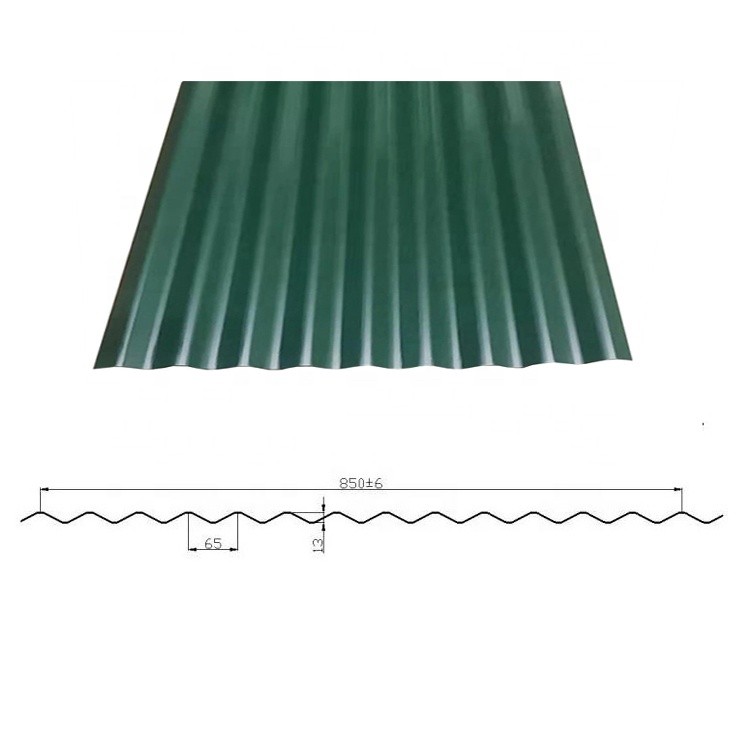

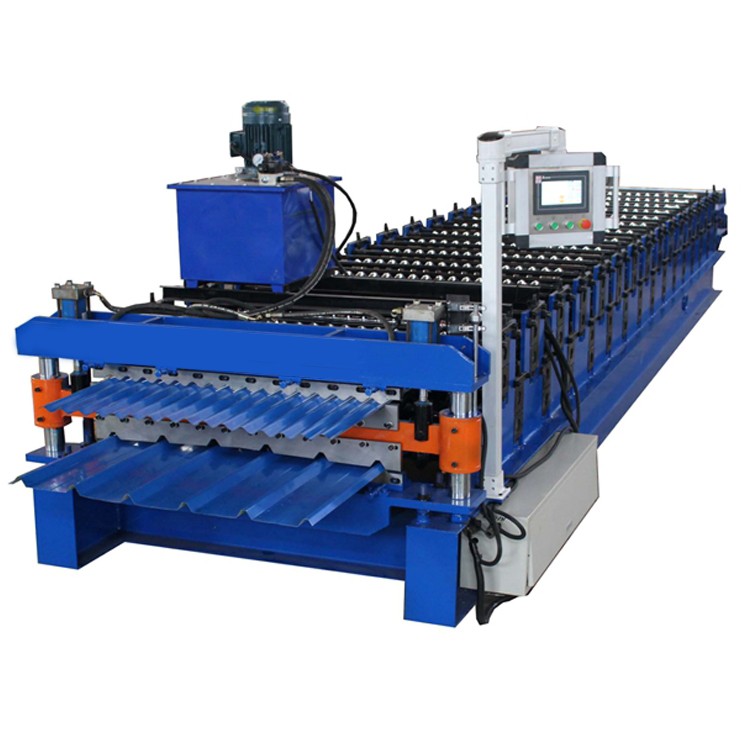

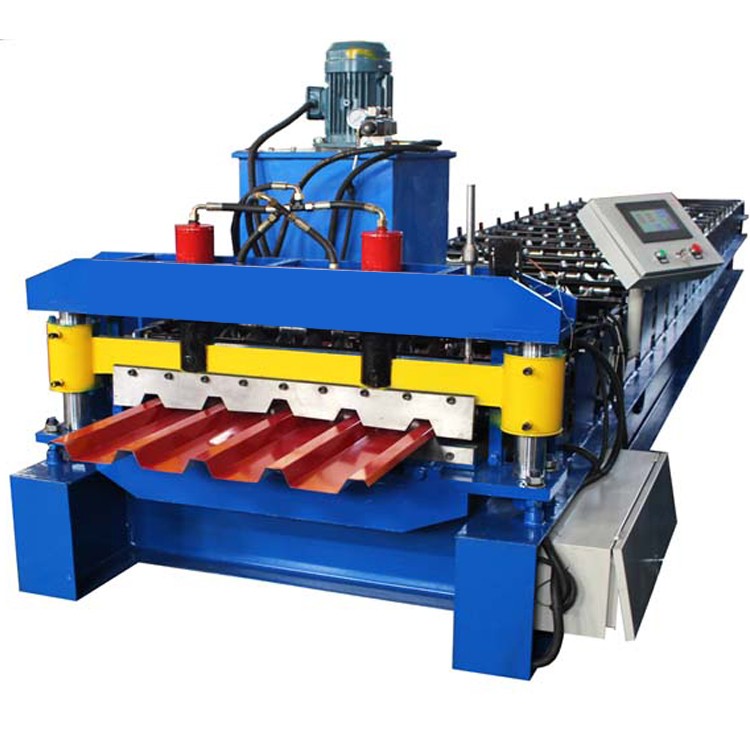

1. Different types of roof profile drawing forming machine ;
2. Curve roof roll forming machine; 3. Ridge cap roll forming machine;
4. Floor deck roll forming machine; 5. Rain gutter roll forming machine;
6. Downpipe roll forming machine; 7. Highway guardrail roll forming machine;
8. Roller shutter door forming machine; 9. Door frame roll forming machine;
10. CZU purlin roll forming machine; 11. Light keel roll forming machine;
12. Slitting machine (lines); 13. Shearing/bending machine;

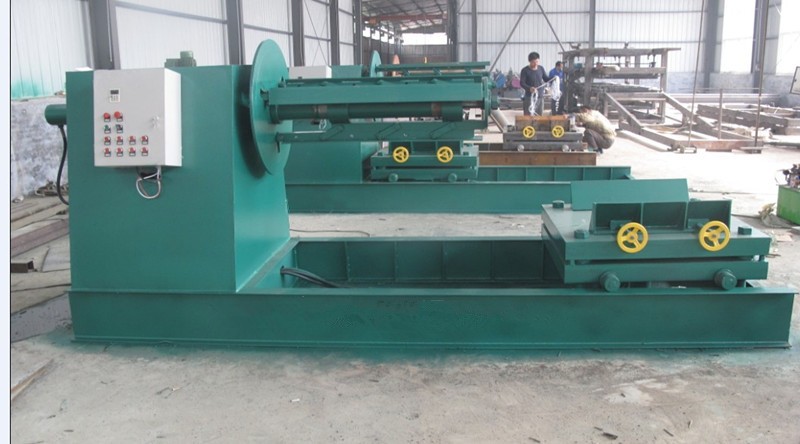

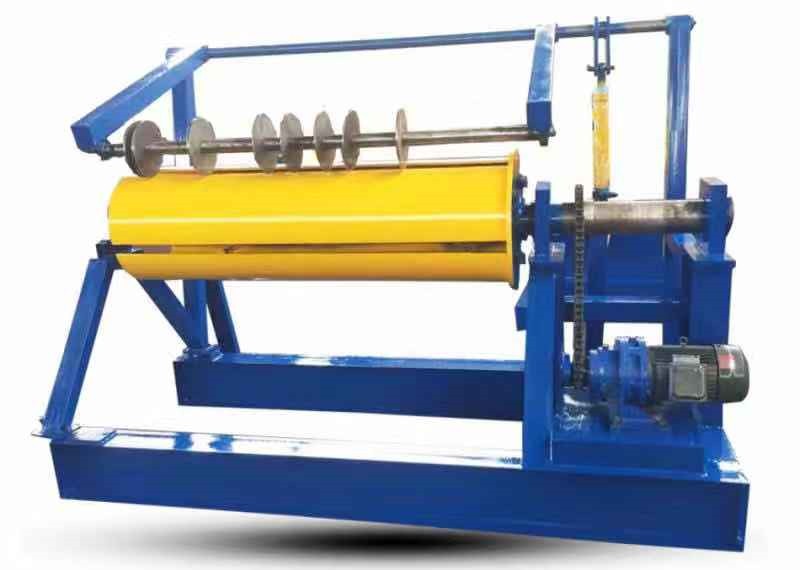

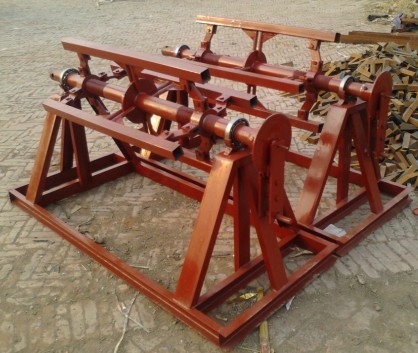

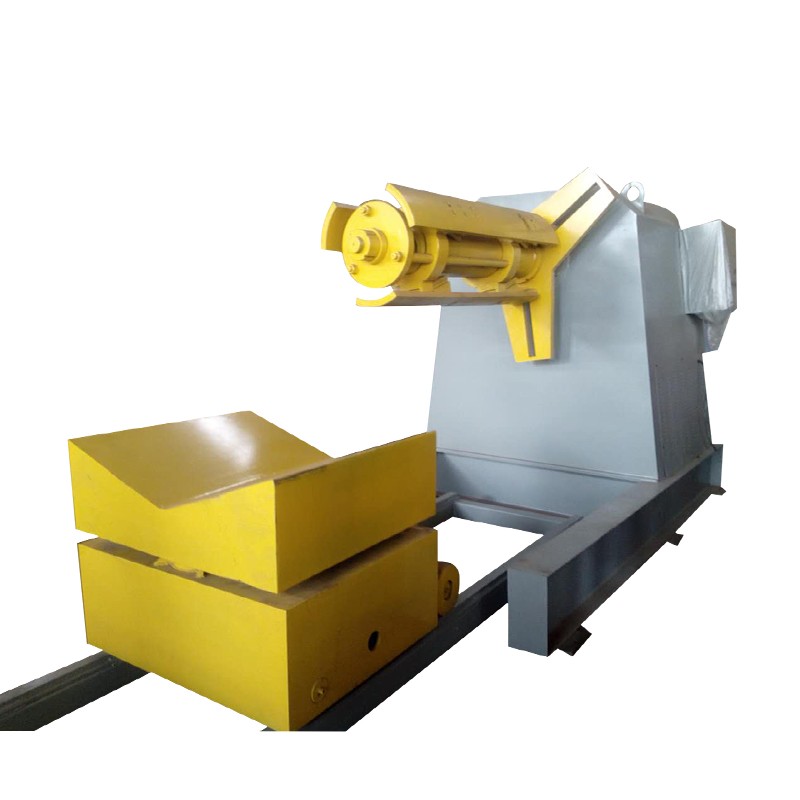

14. Decoiler(Hydraulic decoiler, electric decoiler and manual decoiler) and so on
Dear Friends we are majoring in the roll forming machines for more years,just send us the profiles we will offer you one Exact and Cost machine,If want to know more,pls contact with us asap.
