Application
1. The SDK series pumps are recommended for pumping clean water and chemically non-aggressive liquid.
2. They have compact size and are extremely reliable, very simple to use, efficient and almost maintenance-free. They are suitable for boosting pressure water supplying for household, irrigation, general industrial applications, etc.
3.Pumps should be installed in a covered area, protected against the weather.
Materials/Features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel/stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon
Operating Conditions
Operating limitations:Max ambient temperature up to 40°C
Max fluid temperature up to 80°C
Max pressure up to 10 bar

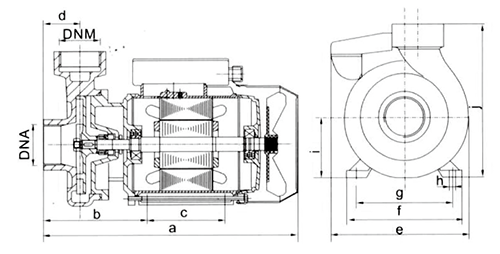

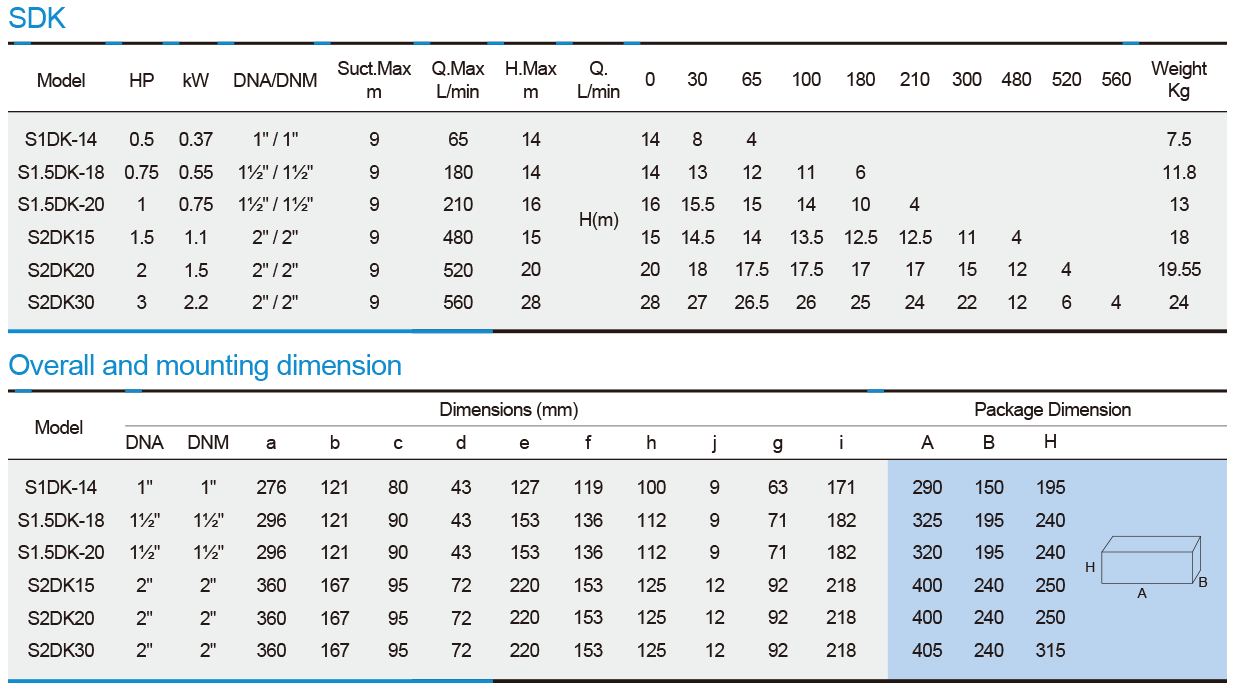

Technical Reference
