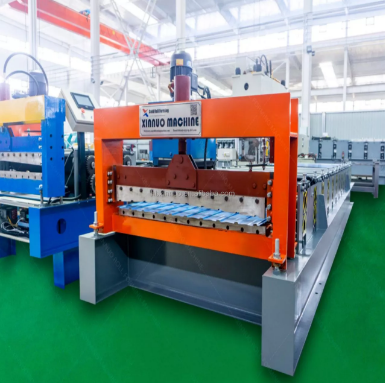

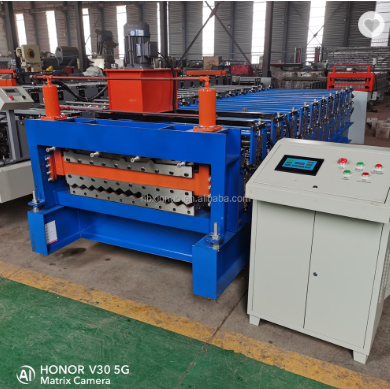

Roof roll forming machine

Model Number：

XN-YW-11

Core Components：

PLC, Pump

Power：

3KW

Product attribute

Brand Name:Xinnuo

Applicable Industries:Building Material Shops, Manufacturing Plant

Place of Origin:Hebei,China

Material width:1000mm

Core Components:PLC, Pump

Machinery Test Report:Provided

Power:3KW

Video outgoing-inspection:Provided

Voltage:380V

Marketing Type:Ordinary Product

Weight:2000 kg

Warranty of core components:1 Year

Warranty:5Year

Dimension(L*W*H):5500x1350x1250 mm

Application:Roof/Wall Tile

Production Capacity:10-25 m/min

Thicknees of the plate:0.3-0.8mm

Suitable to process:Color steel plate

Condition:New

Automatic Grade:Automatic

Key Selling Points:Long Service Life

After Warranty Service:Video technical support

Supply Ability:150 Sets/Year

Showroom Location:NOne

Decoiler:Manual5T

Roller for forming:9-11stations

Diameter of the roller:70mm

Marketing Type:New Product 2020, Ordinary Product

Shipping: Support Sea Freight

Port:Tianjin

Mode of payment: L/C  D/P  D/A  T/T  MoneyGram

Packaging Details:1. The main engine is wrapped with film and loaded into container.

                              2. The computer control box is packed in a wood box.

                              3. We can also pack according to customer's requirement.

Company Profile

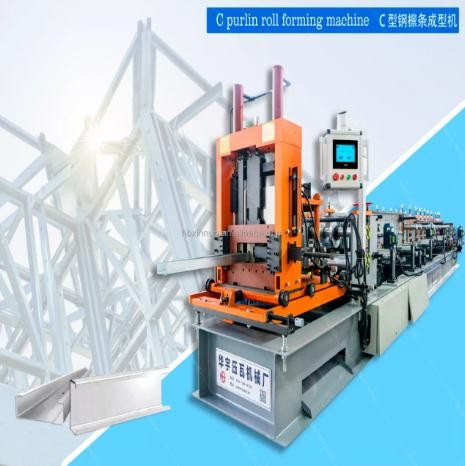

Hebei Xinnuo cold bending press Forming Machinery Co., Ltd. was established in 1995, has 24 years.  The company not only produces different types of professional forming machines, but also develops intelligent automatic forming production line, C&Z purlin machine, highway guardrail forming machine line, sandwich plate production line, etc.  Our team after years of practical experience and the careful design of experts, has now made our factory developed into a collection of R & D, production, sales, installation, commissioning, after-sales, technical consultation as one of the modern enterprises, is the local tile machinery industry leader.
