GHL SeriesRapid Mixer Granulator
1-500kg/batch
More Choices for you
Product DescriptionThe machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
Short granulating time, high eficiency and energy saving
The character of granule is uniform and the luidization of granule is good. It provides ideal granule material to tablet pressing procedure.
Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
Each batch needs 2 minutes to dry mixing and 1~4 minutes to granulating. Compared with traditional process, its eficiency can raise 4~5 times.
Whole operation has strict safe protective measures.
It can mix uniformly even when the gravity difference between main material and excipient is very big,without the phenomenon of delamination.

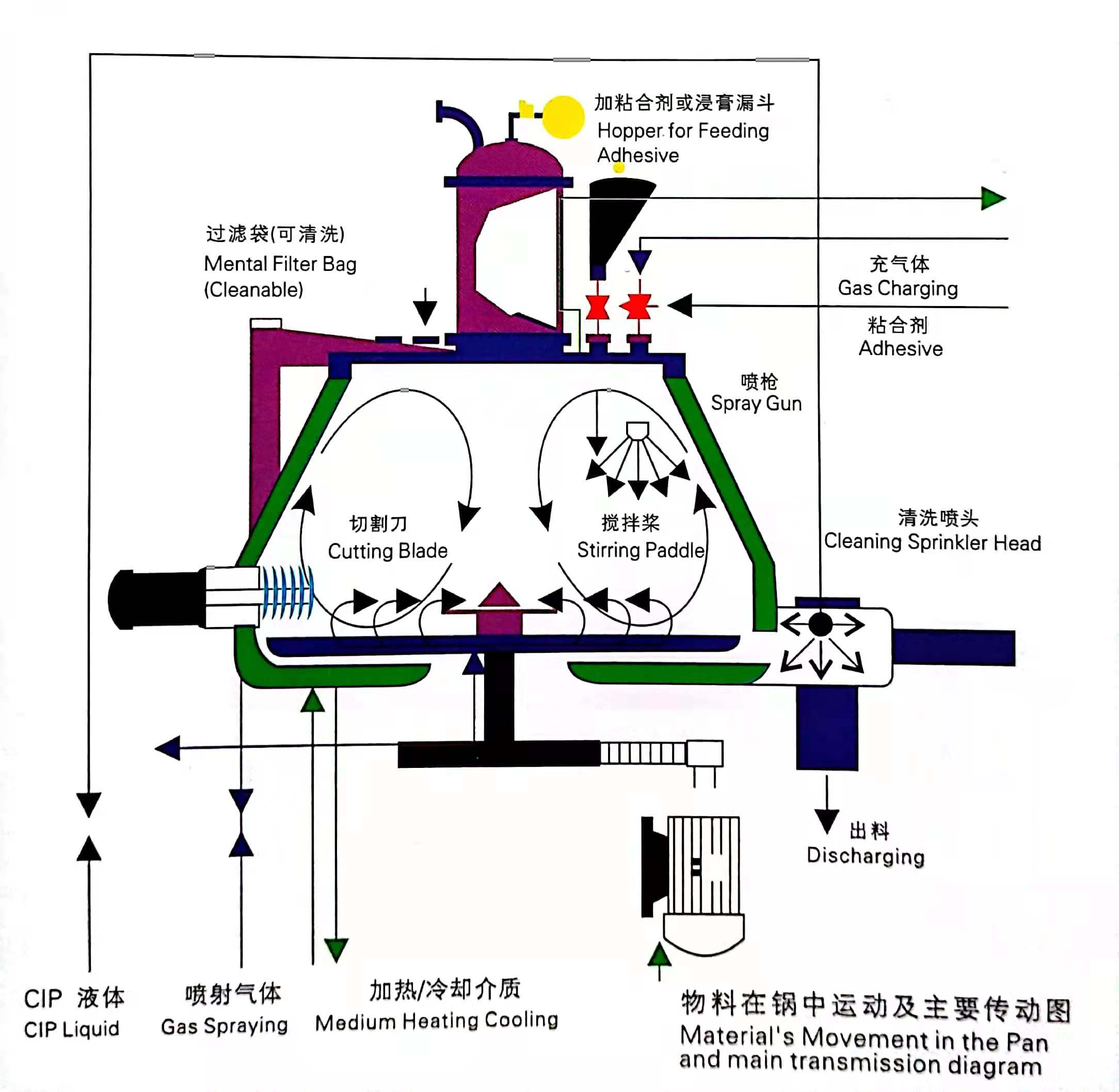

Principles:
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material.Then it is crushed at a high speed and become uniform granules.

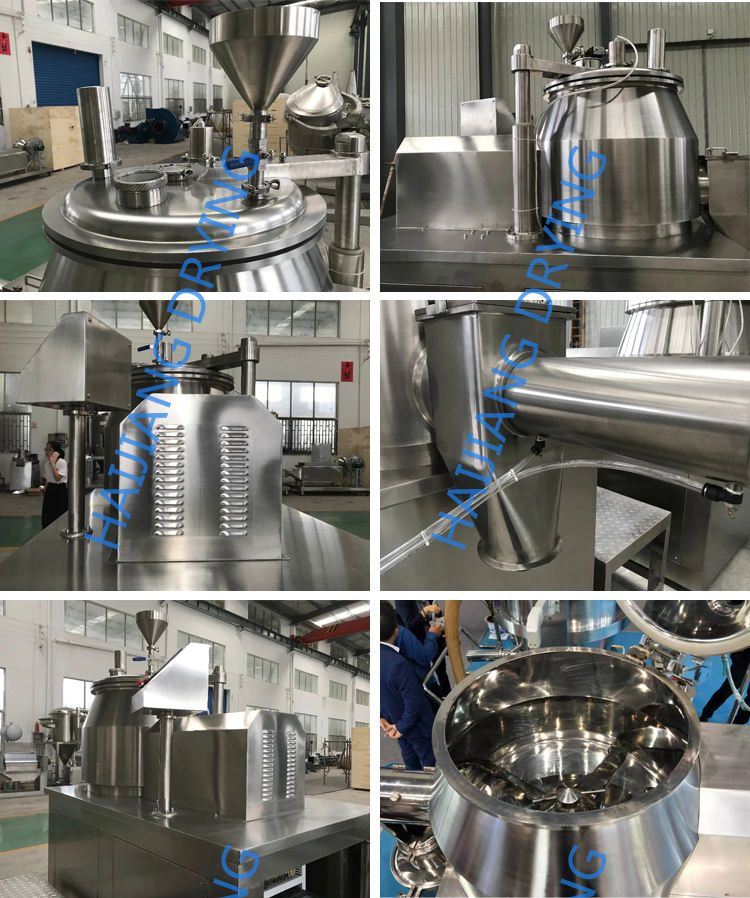

Detailed Photos
| Specification Item | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Capacity (Kg /batch) | 0.3-1 | 3 | 15 | 35 | 50 | 60 | 80 | 100 | 135 | 200 |
| Granules size (Mesh) | 20-80 | |||||||||
| Working time (min) | 5-7 | |||||||||
| Container volume (L) | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Mixing power (Kw) | 0.75 | 2.2 | 4/5.5 | 6.5/8 | 6.5/8 | 11/14 | 11/14 | 13/16 | 18.5/22 | 22/28 |
| Cutting power (Kw) | 0.75 | 1.1 | 1.3/1.8 | 2.4/3 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Mixing speed (r/min) | 30-1000 | 30-600 | 200/400 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Cutting speed (r/min) | 300-3000 | 1500/3000 | ||||||||
| Pressure of compressed air (Mpa) | 0.3-0.6 | |||||||||
| Consumption of compressed air (m3/min) | None | 0.1 | 0.11 | 0.13 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 |
| Weight (Kg) | 150 | 300 | 400 | 800 | 900 | 1200 | 1500 | 1550 | 1650 | 1800 |
| Overall dimension of machine (L×W×H) | 800× 450× 900 | 1250× 550× 1160 | 1730× 750× 1610 | 1950× 750× 1810 | 1950× 750× 1810 | 2210× 880× 2000 | 2210× 880× 2000 | 2310× 1050× 2000 | 2485× 1080× 2050 | 2585× 1400× 2100 |
Pre-sales service
1)Professional advice and rich experience help tochoose machine.
2) Inquiry and consulting support
3) View our factory
After-sales service
1)Training how to install and use the machine
2)Engineers available to service machinery overseas.
3)one year warranty,whole life service.Within1 year, any problem part can send to us, we cangive provide free new part (only damaged by machine itself).
