SprayDryer/DryerEquipmentMachine
Description:Spray Drying Machine, Atomized drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Working Principle:
Spray Drying Machine Series of LPG is gas-liquid co-current flow drying equipment, using high-speed centrifugal atomizer, the liquid will be atomized into fine droplets, then mix with the hot air from the distributor in the dryer, heat and mass transfer exchanges rapidly during the mixing process. In a very short period of time the liquid become dry powdered products. Production control and product quality control is convenient and reliable. It is widely used in the drying production of different types of liquids materials.
Characteristics:
1.Different types of solution, suspension, emulsion and cream paste material can be dry for a one-time production.
2.The fog moment and fog droplet of spray-drying can be slightly adjusted.
3.The hot air has been reasonable allocation, and the ceiling and walls sticky situation has been eliminated.
4.It is suitable for the drying of thermo-sensitive and non thermo-sensitive material at the same time. The product particles are smaller than pressure spray dryer.
5.Simplify the production process, easy to use, good liquidity and instant of the product.
Application:
Inorganic: Aluminum nitride, zirconium, potassium fluoride, betonies kaolin, barium sulfate, lead sulfate, sodium aluminum, chromium oxide, titanium dioxide.
Macromolecule polymers: Urea-formaldehyde resin, PVC.
Dyes: Dispersal red FB, reactive dyes, etc.
Chemical Agents: Silica dioxide, diatomite, sodium silicate, wood calcium, sodium ligninsulfonate, naphthalene series water reducer.
Pesticide: Carbendazol chloride wet table power
Food and feed additives: Casein peptide phosphate, potassium sorbet fish serum.
Fertilizer: Potassium humane, sodium humane.
Technical parameter:

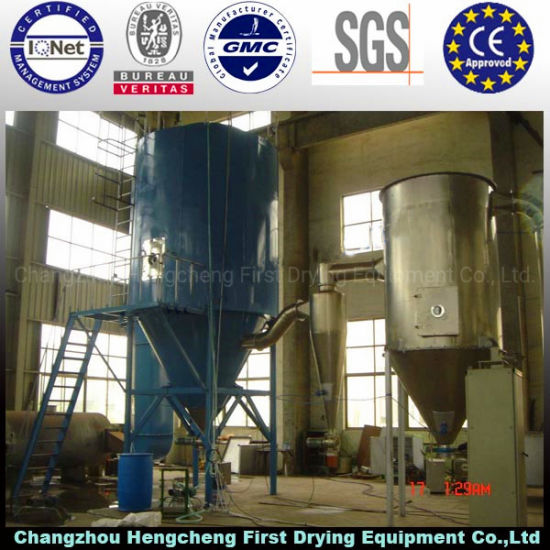

Product Pictures:
FAQ:
1. Before you inquiry, you should let us know the following information:
a.>Name of the material to be dried?
b.> Shape of the material to be dried?
c.> Initial moister of material?
d.> Final moister of material?
e.> Drying materials can withstand the maximum temperature?
f.> Capacity of dried material? kg/h (or capacity of inlet wet material? kg/h)
g.> Equipment material, stainless steel or carbon steel?
h.> Using heating source, steam / electricity / coal / heat conduction oil or other?
2. Our usual price is based on FOB Shanghai, if you request CIF, please give us the delivery port, then we will give you CIF price.
3. Our usual payment term is: 30% TT in advance, 70%TT before shipment.
