Twin Screw Fish Feed Pellet Machi
- Model NO.：
- SLG70-W
- Certification：
- CE, ISO9001
1.Fish Food Pellet Extruder Description:
Catfish food machinery production line to nigeria catfish farm personally ,Fish food processing line is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)
1).All fish food equipments are made of stainless steel.
2).The fish food whole line fully continuous and automatic.
3).Datong Company provide basic fish food receip according to your require.
4).The final fish food shapes and sizes can be various by changing the mould.
5).Supply different size mould free.
6).Packing machine could be supplied to work with the line (depend on your require).
2.Floating fish feed extruder Raw materials for fish food pellet:
Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder..Animal peotein adopt fish meal, shrimp meal,crab meal, sleeve-fish meal and so on.You can add other ingredient according to the local fish live require.
3.Floating fish feed extruder can make the follow fish food Products:
This fish food processing line(Datong Company) can be used to produce fish food pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the extruder dies,Meanwhile this line can used to produce dog food, cat food by change some place.You can buy one whole line to make fish food and dog cat food together.
4.Floating fish feed extruder Capacity(Datong Company):100-150kg/h, 220-260kg/h, 400-500kg/h, 800-1000kg/h
5.The Floating fish feed extruder (300-350kg/h)Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6.China standard industrial Voltage for the machine:
Three phases:380V/50Hz, Single phase:220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v....).
7.Machines materials:ll the fish food machines are made by stainless steel, this whole line is with reasonable design and with high automation;The screws are made by alloy steel, with building block system structure and self-cleaning function.
8. Fish food machinery Technical Parameters:
Model | Installed power | Real power | Output | Dimension |
SLG65 | 70kw | 40kw | 100-150kg/h | 22000x1200x2200mm |
SLG70 | 90kw | 50kw | 200-240kg/h | 25000x1500x2200mm |
SLG85 | 120kw | 100kw | 400-500kg/h | 30000x3500x4300mm |
SLG90 | 135kw | 100kw | 800-1000kg/h | 30000x3500x4300mm |
SLG100 | 165kw | 115kw | 1000-2000kg/h | 30000x3500x4300mm |
9.Fish food pellet sample size:

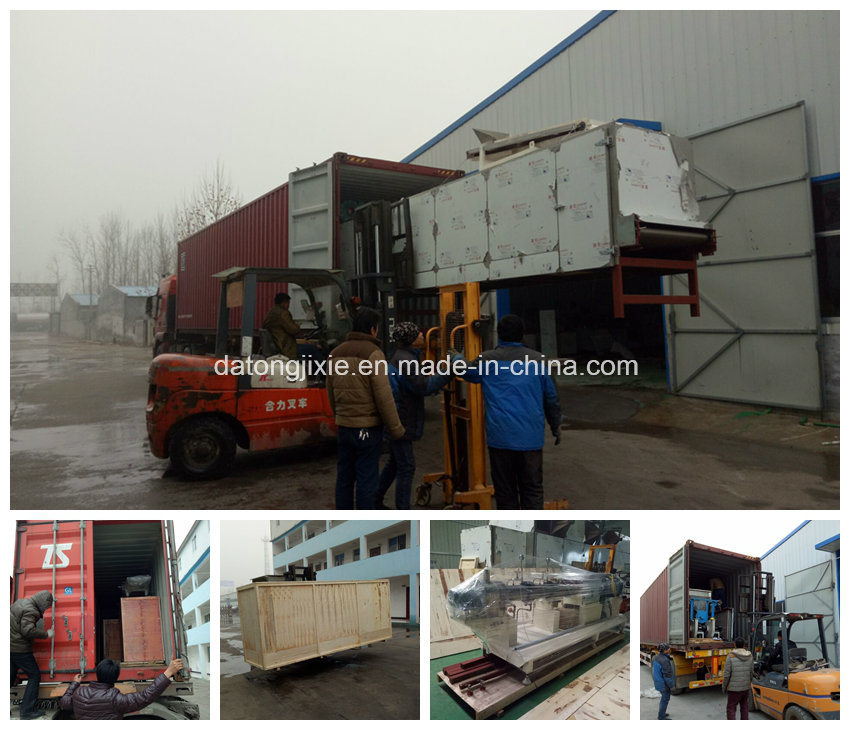

10.Packaging &Shipping
Packing:Simple packing stretch film (based on the customers' need adopt the wooden case or wooden pellets, etc.)
Transportation:According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
11.Our ServicesOur wooden packing ishard for exporting level before delivery:
Our engineer would go to buyers place to installing the machinery to buyers .After the machinery arrived at buers place .
1). At least 1year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services
4). Free debugging of equipment until everything is functional;
5). Free management of equipments' long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1year complete warrantee and life-time maintenance service;
12.FAQ
A. Finished time
The production line will be finished in 30-40 days after /confirm/iation.
B. Payment Term
30% is paid by T/T as the down payment, 70% is paid by T/T or T/C before shipment.
C. Delivery Time
When the machines are finished, we will invite you to our factory for testing machine.
