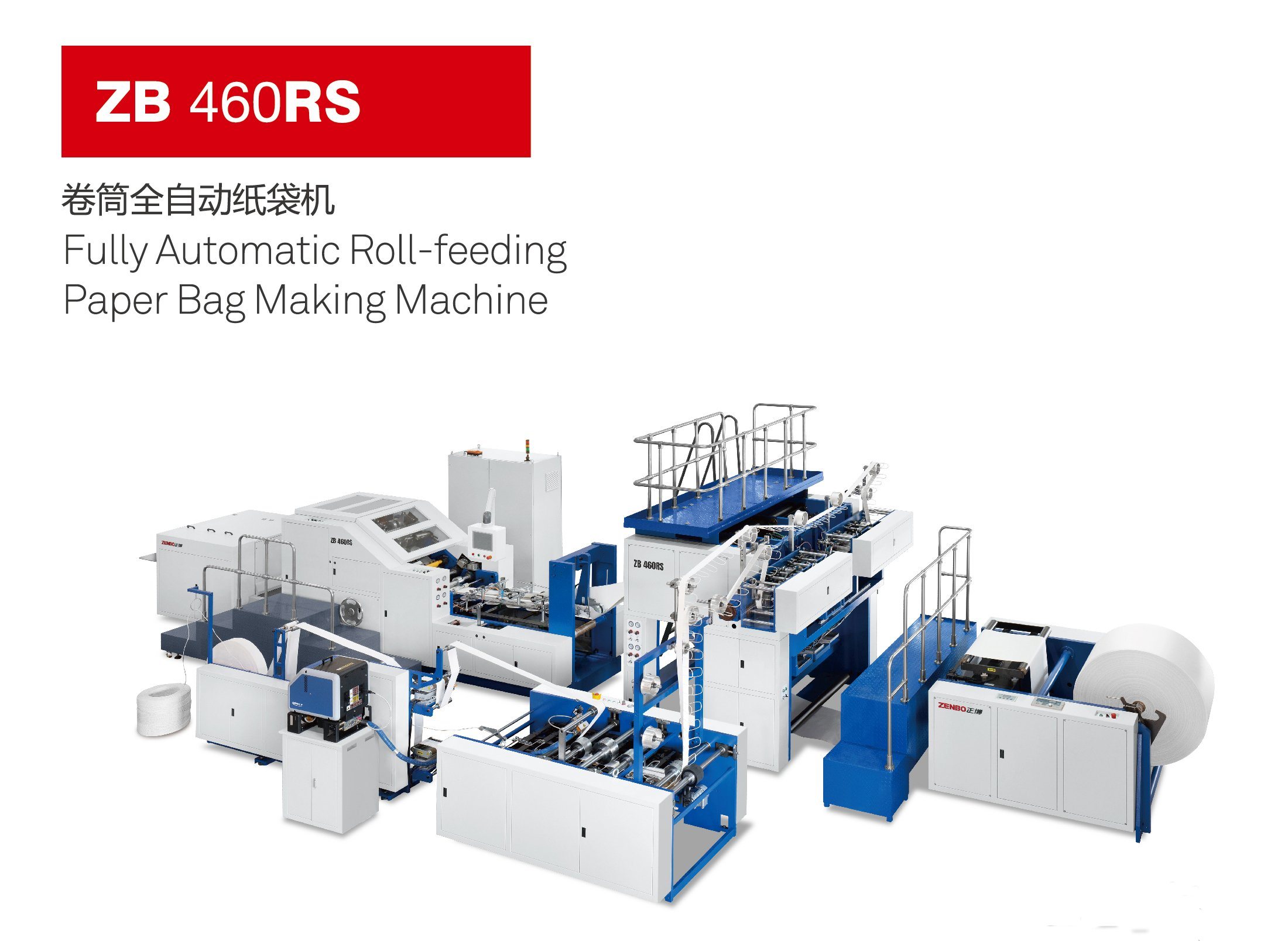

Fully Automatic Reel Feeding Paper Bag Making Machine ZB460RS
1. Production Description
ZB460RSisa fully automatic roll feeding paper bag making machine. Use printed paper roll as raw material,combinepaper patch roll and papertwistropeto realized high speed fully automatic paper bag making.it is an ideal equipment for producing paperbag with handle. The working process is Roll paper feeding, handleapplication,tubeforming,bag cutting,squarebottomopen,bottomgluing,output.
ntent="" style="background-color:#b4c6e7;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Parameters
| Model | ZB460RS | |
| Bag Type | with handle | without handle |
| Paper Roll Width | 670--1470mm | 590-1470mm |
| Max. Paper Roll Diameter | φ1200mm | φ1200mm |
| Core Diameter | φ76mm(3") | φ76mm(3") |
| Paper Thickness | 90--170gsm | 80-170gsm |
| Bag Body Width | 240--460mm | 200-460mm |
| Paper Tube Length | 260--710mm | 260--810mm |
| Bag Bottom Width | 80--260mm | 80--260mm |
| Handle Rope Height | 100mm-120mm | ---------- |
| Handle Rope Diameter | φ4--6mm | ---------- |
| Handle Patch Length | 190mm | ---------- |
| Handle Rope Center Distance | 95mm | ---------- |
| Handle Patch Width | 50mm | ---------- |
| Handle Patch Roll Diameter | φ1200mm | ---------- |
| Handle Patch Roll Width | 100mm | ---------- |
| Paper Patch Thickness | 100--180gsm | ---------- |
| Max. Production Speed | 120bags/min | 150bags/min |
| Total Power | 42KW | |
| Overall Dimension | L14500XW6000XH3100mm | |
| Total Weight | 18000Kg | |
| Glue | Handle patch: hot glue Bag bottom and tube: water glue | |
ntent="" style="background-color:#b4c6e7;padding:0 10px;margin:0;line-height:36px;text-align:left;">Certifications

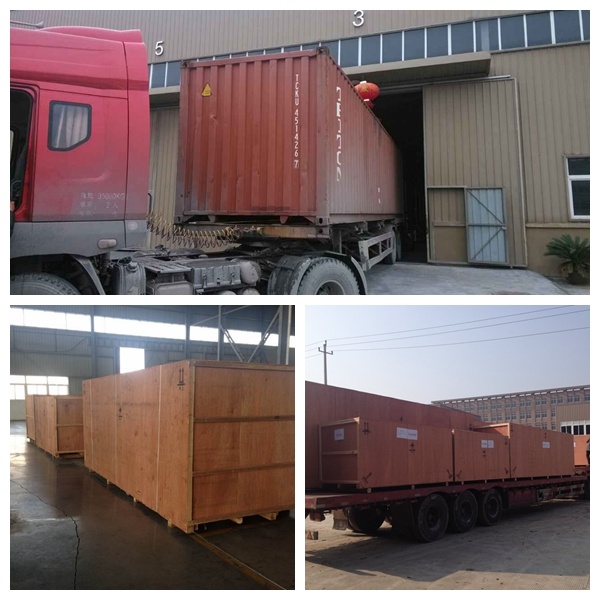

ntent="" style="background-color:#b4c6e7;padding:0 10px;margin:0;line-height:36px;text-align:left;">Packaging & Shipping
ntent="" style="background-color:#b4c6e7;padding:0 10px;margin:0;line-height:36px;text-align:left;">FAQ
Q:Are you manfacturer or trading company?
A: We are the manufacturer and have our own workers and factory.
Q: What can I buy from you?
A: We produce the paper bag production line: square bottom paper bag machine, v bottom paper bag machine, shopping bag machine, printing machine, slitting machine and handle machine. We also provide the raw materials: kraft paper, printed paper and glue.
Q:Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia,Chile,Panama,Nicaragua, UAE, Saudi Arabia,Egypt, Vietnam,Indonisia, India, Thailand, Pakistan, Philippines, Singapore and so on.
Q:How long history of your factory?
A:We have 20 years experience on machines, our products sell very well all over the world.
Q:Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is locatedRuiancity,Zhejiangprovince,China mainland.
Q:How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
ntent="" style="background-color:#b4c6e7;padding:0 10px;margin:0;line-height:36px;">Company Profile
Zhejiang Zenbo Intelligent Machinery Co.,Ltd was established in 2009. We are professional for sheet feeding and roll feeding paperbag making machine. ZENBO machinery lead sheet-feeding paper bag making machine in China. We have worked with over 70% of high quality paper bag producer in China market and have 20 different types of paper bag making machine to meet the different kinds of demands for the customers. Besides, we have been exported to more than 40 countries for years.
