Product details
Model NO.:
SZLH320
Certification:
China Best Price Poultry Feed Extrusion Extruder Machine For Sale


1. China Best Price Poultry Feed Extrusion Extruder Machine For Sale Description:Widely applied product with mature technology .The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation .the granulating room is equipped with air suction temperature reducing system .The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .Ring dies with multiple kinds of bore diameters are optional .and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
2. China Best Price Poultry Feed Extrusion Extruder Machine For Sale Technical Parameter:
ModelSZLH320SZLH350SZLH400SZLH420SZLH508
Capacity2-5T/H1.5-8T/H2-10T/H3-12T/H4-20T/H
Main Motor Power37KW55KW75/90KW110KW132/160KW
Screw Feeder Power0.55KW0.75KW0.75KW1.5KW1.5KW
Conditioner Power2.2KW2.2KW 2.2KW5.5KW7.5KW
Ring die inner diameter320mm350mm400mm420mm508mm
Ring die rotational speed305PRM336PRM307PRM287PRM287PRM
Roller outer diameter140mm 165mm190mm206mm/
Dimension2300*1000*2100 mm3200*1100*1700 mm3200*1300*1900 mm3500*1300*2800 mm3500*1500*2900mm
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC

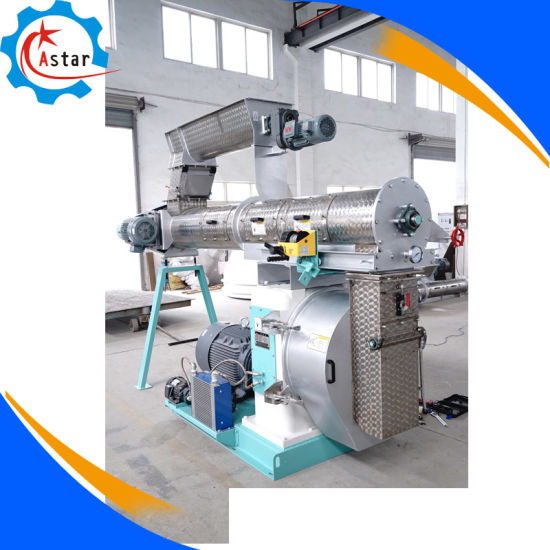

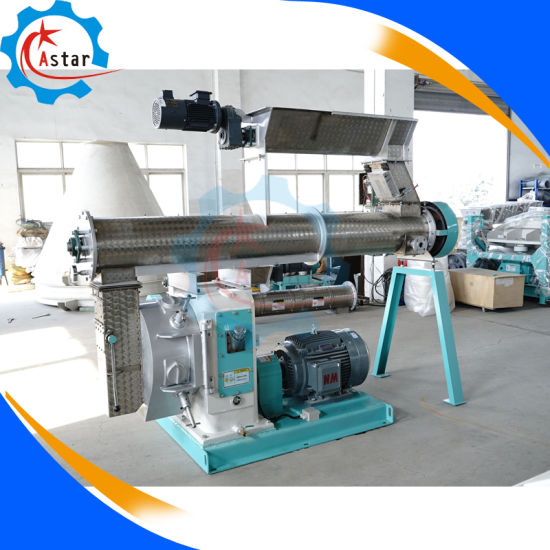

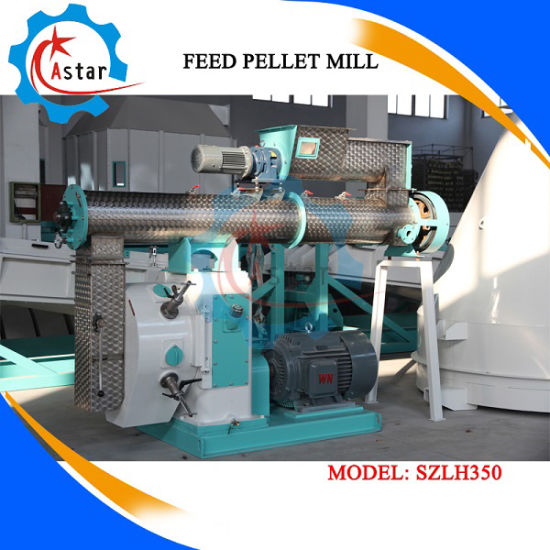

3. China Best Price Poultry Feed Extrusion Extruder Machine For Sale Photos:











4. China Best Price Poultry Feed Extrusion Extruder Machine For Sale Delivery Photos:


5.China Best Price Poultry Feed Extrusion Extruder Machine For Sale Customer Factory :





Any more information you need China Best Price Poultry Feed Extrusion Extruder Machine For Sale, please feel free to contact with us.
