The1year
- Model NO.：
- ERJ1630A
- Certification：

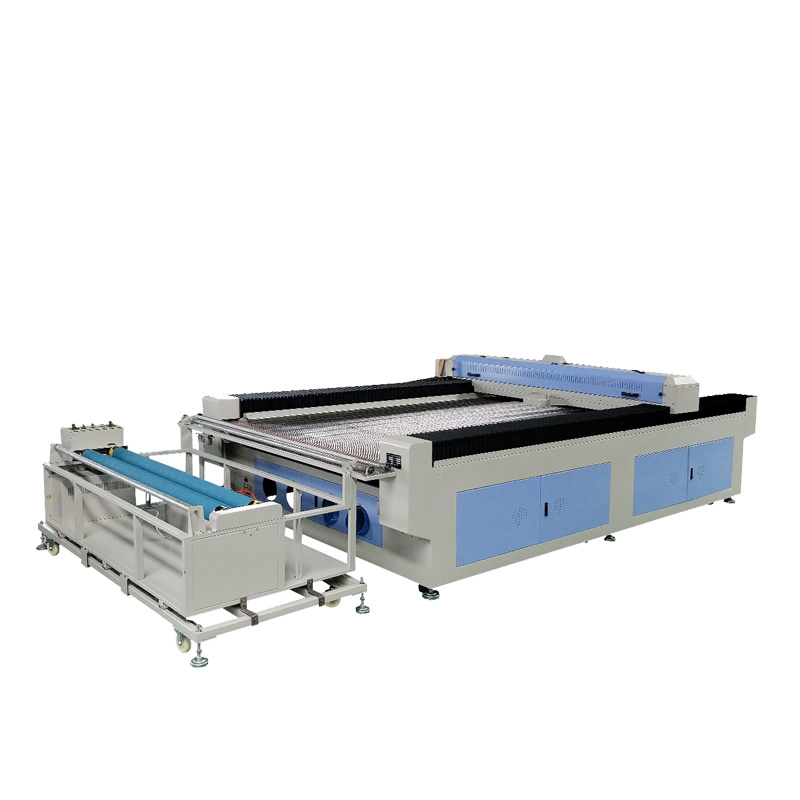

ERJ1630A auto feed laser cutting machine for cloth felt garment industry plush toys textile roll
Advantage
1.Fast cutting function: it can cut via any curve fast continuous cutting, the laser heads moving in beautiful arc just evoke your imagination of top grade racing car.
2 .To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.
3 .Multi-document function: SC series equipment can store as many as 256 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 256 different products.
4. All-optical isolation system with high speed differential input and output circuit design, long distance transmission signal without distortion, strong anti-jamming capability, system has realized the no.12 working state output, state 16-way input, to dock with the user production site easily.
5.Large-format laser cutting incision smooth fine, meet the blanking, machining the whole piece of cloth.
6 .Stable light path design, match industrial water-cooled machine, ensure the large-format, cutting the position work surface laser power output is consistent, fast and efficient, stable machining quality.
7. Automatic feeding and discharging, save time, improve work efficiency, it can customize according to customer's demand level.
8.Feeding system adopts special words with mesa, pedrail automatic feeding device, convenient processing objects move freely on the surface of the cutting machine.
9.The machine used in clothing, textiles, leather and other industries.Mainly used for plate, cloth, leather and other non-metal cutting and carving.
Application
Genuine leather,artificial leather ,soft leather,decorative leather, packaging leather,etc. all kinds of leather,leather materials,pure cotton, real silk, all kinds of chemical fiber, jeans and so on .all kinds of textile materials, or non-woven material.
Technical parameters
NO. | Description | Parameter |
1 | Engravingarea | 1600*3000mm |
2 | Laserpower | 150w |
3 | Cuttingspeed | 0-36000mm/min |
4 | Cuttingspeed | Differencematerialdifferencespeed |
5 | Resolutionratio | 0.05mm |
6 | Powersupply | 220V±10%/10A,singlephase |
7 | Positioningspeed | 20m/min |
9 | GrossPower | 1.6Kw |
10 | Operatingtemperature | 0-45ºC |
11 | Operatinghumidity | 5-80%(freeofcondensedwater) |
12 | Graphicformatsupported | BMP,JGP,PNG,DXF,AI,PLT etc. |
13 | Dimensions(mm) | 2000*3500*1000mm |

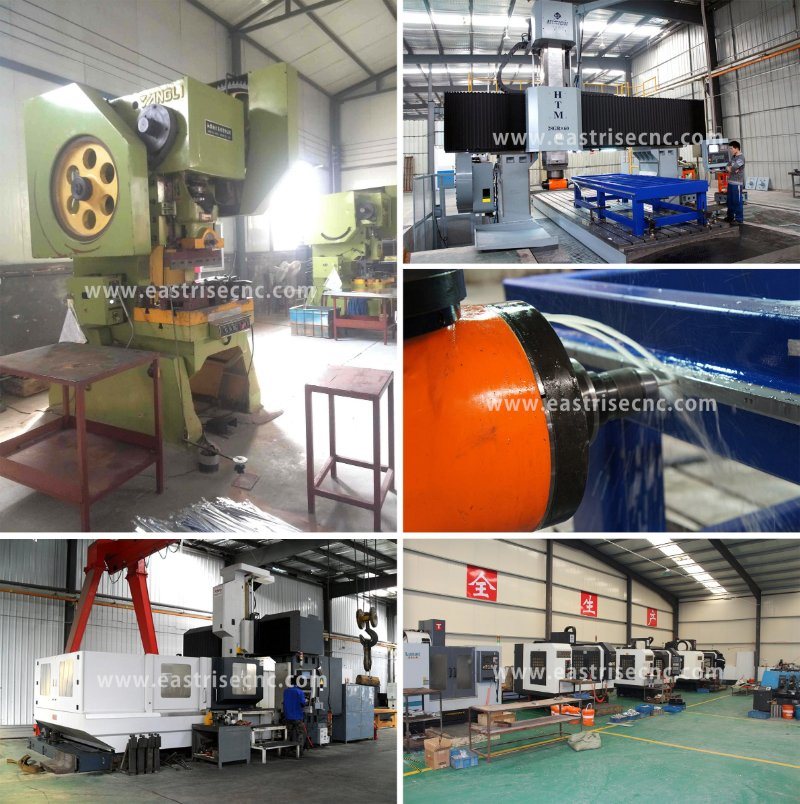

Machining
Exhibition
Certificates
Technical Department
FAQ
1.How long is your machine's warranty?
3 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.How about package of shipment?
Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
