The1year
- Model NO.：
- JJR-350NC
- Certification：
- GS, CE, RoHS, ISO 9001, Ks (South Korea)

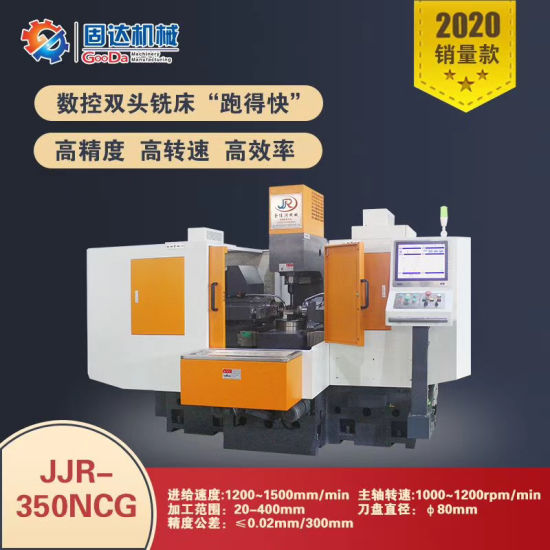

Super Fast Speed & Feed
The Best Choice For Small& Square Block Cutting
TECHNICAL PARAMETER
| Item | Unit | Model | |
| JJR-350NC | |||
| Cutting Capacity | Control Axis | No. | 4 |
| Max.Milling Size (L*W*H) | mm | 350*350*75 | |
| Min.Milling Size (L*W*H) | mm | 20*20*20 | |
| One time Cutting Capacity | mm | 2*1.5 | |
| Travel | X axis | mm | 210 |
| Y axis | mm | 210 | |
| Z axis | mm | 610 | |
| Feed Speed | X axis | m/min | 9 |
| Y axis | m/min | 9 | |
| Z axis | mm/min | 9 | |
| Spindle | Spindle speed | Rpm | 50-1200 |
| Spindle motor | - | 7.5 | |
| Cutter diameter | mm | 80 | |
| Servo Motor | X axis | Kw | 1.8 |
| Y axis | Kw | 1.8 | |
| Z axis | Kw | 1.8 | |
| A axis | Kw | 1.5 | |
| Work table | Worktable dimension | mm | 260*260 |
| Max.Loading weight | Kg | 200 | |
| Floor space require (L*W) | mm | 2.7*2.7 | |
| Machine weight | ton | 5.5 | |
| CNC system | Costomized(Baoyuan ,system Mitsubishi System ,Fanuc system) | ||
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box +Steel beam frame.
5.How can Ichoose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you ,or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.

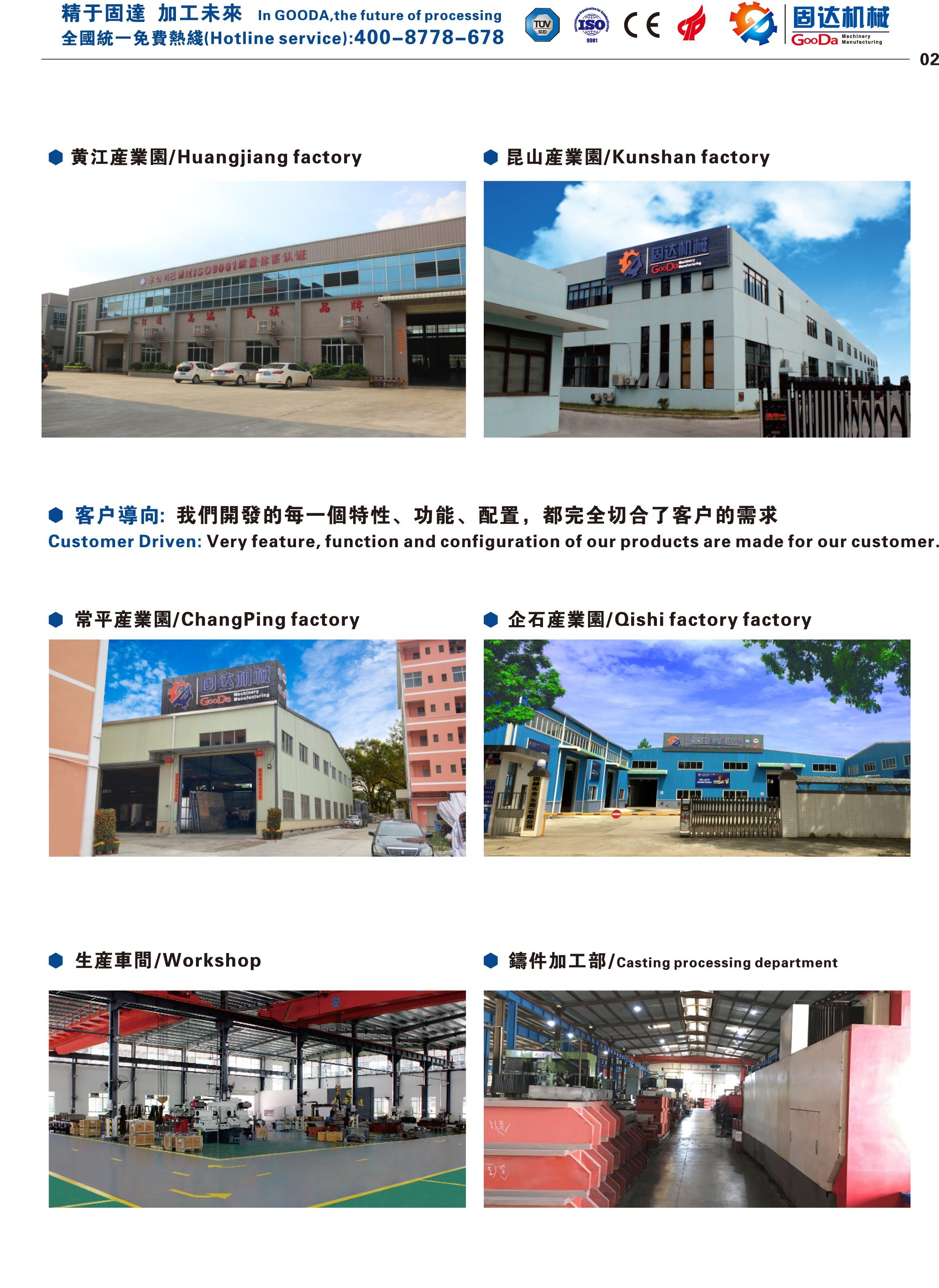

Company Profile
We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality ofCNC Duplex Milling Machine,Exchange-Pallet Vertical CNC Milling Machine,CNC Gantry Grinding Machine,5-Axis High Speed Gantry Machining Center ,CNC High Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.
Certification
Cooperative Partner
Maintenance and repair
The benefits of GOODA maintenance contract (After sales 3years):
Basic requirement in acertified QS systemGuarantee for the accuracy of the measuring and test resultsCalibration, maintenance and, if necessary, repair with just one visitFixed prices with aclear breakdown of costsPreventive maintenance helps you avoid expensive faults and ensures ahigh level of quality that lastsThe maintenance contract includes:
Travelling time and expenses for our technicianMaintenance and calibration workSmall items required for carrying out the specified maintenance workCalibration with acorresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standardsContact
