- Model NO.：
- TC-HS150E3-100
- Certification：

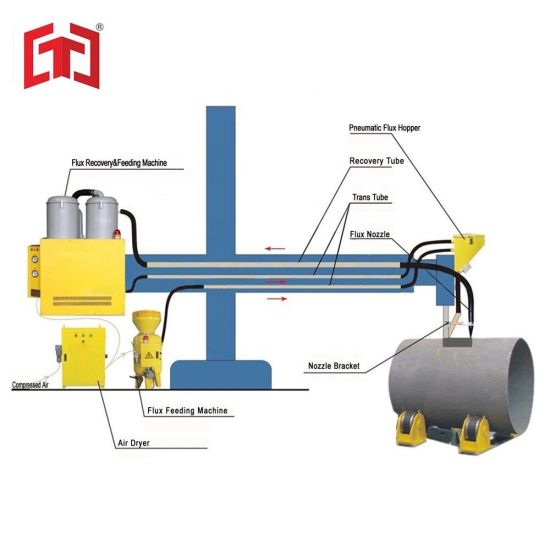

This is an integrated equipment for flux recovery and pressure feeding. It is applicable for welding manipulator and all kinds of saw equipments used in nuclear power, wind power, boiler, pipe and other cylinders welding projects.
It adopts high quality fans to make recovery; it connects with external compressed air source (0.6Mpa) to feed. Low level alarm reminds worker to add flux when less than 15kg. Pulse dust removal device linked with high-density filter to separate and collect dust from reclaimed flux. Flux replace valve under the machine makes flux replacement simple and fast. Optional heating system can be used for high requirement projects. The automatic flux recovery, flux transmit and flux feed is controlled by the SCM or PLC, each function can be controlled by remote control. The effective flux recovery rate is of 98%, can work inside of 300mm cylinder.
Goods Supply Range
Main machine x 1pc

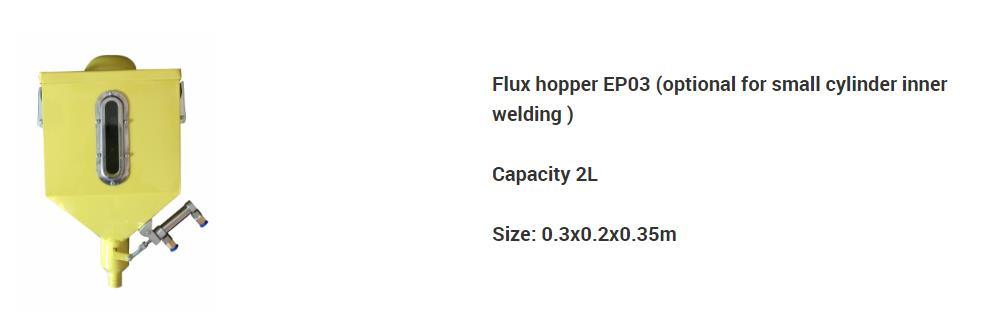

LT-EP10 hopper x 1pc
LT-FN38 nozzle x1pc

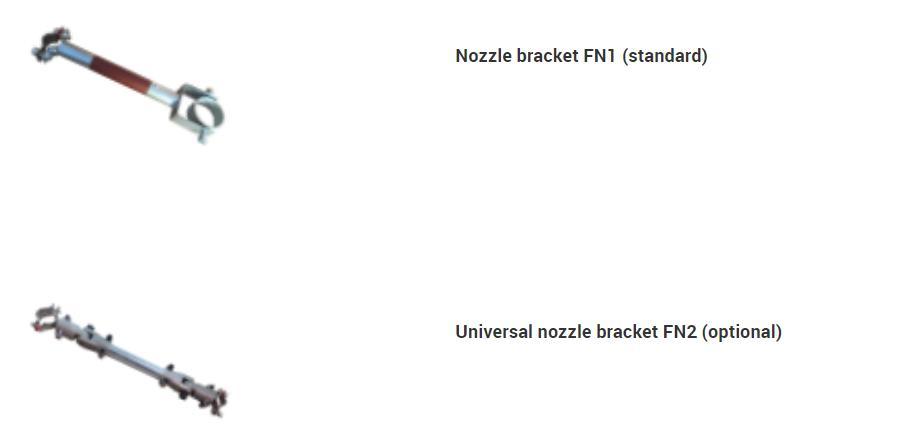

LT-FNB1 nozzle bracket x1pc
Φ38Hose x4m
Φ25Hose x4m
Heating 0-150ºC optional
Warning parts
•Filter
•Hopper filter
•Recovery hose
•Feed hose
•Flux nozzle
GUARANTEES
One year total guarantee for the supplied machine with the exclusion of wearing parts.
