Product details
Model NO.:
DGP DSP
Certification:

40-4000kg/H Dry Type Floating Fish Food Feed Extruder Machine

Pet food extruder machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use corn powder, bone powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final nutritious pet food. And the machine can also make the pet food cored filling, it will be more popular with modern pets. This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

Raw Materials
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc. can also add fresh bone, meat, etc.

Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.


Advantages
1.Simple structureand economic, this machine is of ingenious shape, easy operation &service .
2.The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
3.The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life
4.According to your requirement and production scale,pet food extruder can be classified into dry type machine and wet type machine. accoriding to your needs , we can give you the best recommedation .
5.It can produce different shapes feed for fish, dog, cat etc.

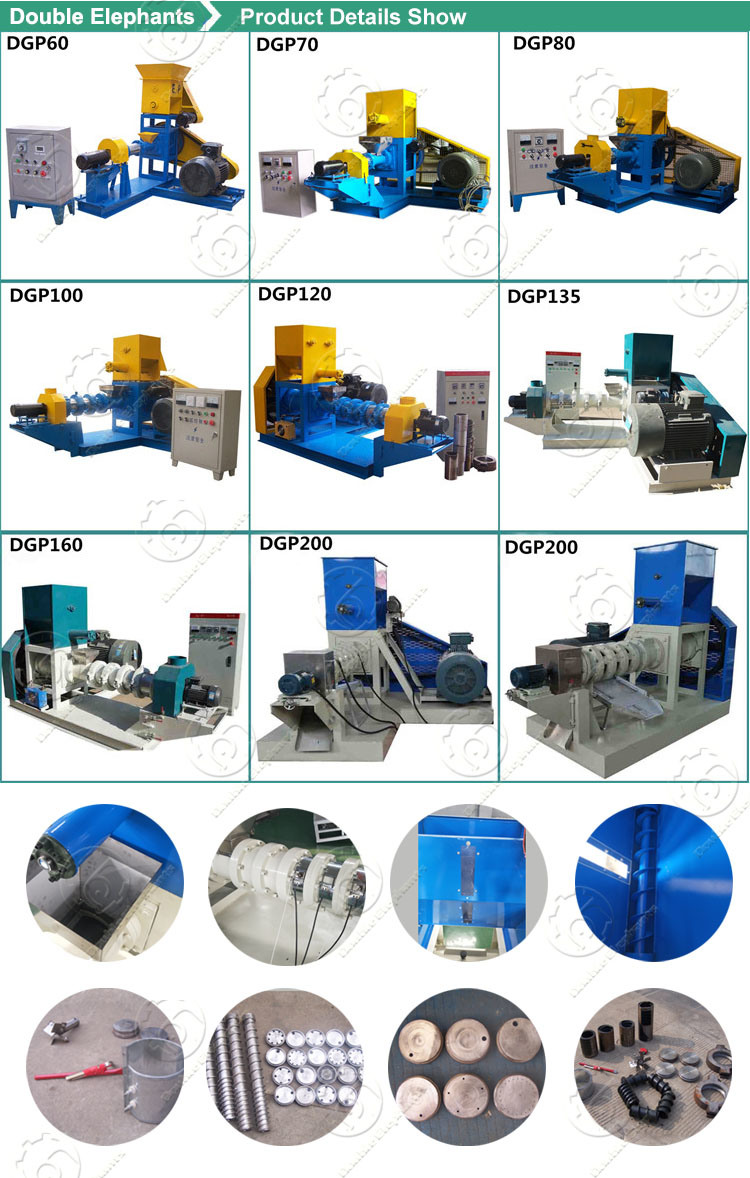

Specification:

Model

Capacity

(t/h)

MainPower

kw)

Feedpower

(kw)

Screw Dia

(mm)

Cutpower

(kw)

Condition Power

(kw)

DGP600.12-0.15150.4φ600.4
DGP700.18-0.2518.50.4φ700.4
DGP800.3-0.3522/270.4φ801.1
DSP800.3-0.3522/271.1φ801.12.2
DGP1000.4-0.4530/371.1φ901.5
DSP1000.5-0.730/371.1φ901.52.2
DGP1200.5-0.7551.1φ1202.2
DSP1200.8-1.0551.1φ1202.22.2
DGP1350.8-1.0751.1φ1332.2
DSP1351.2-1.5751.1φ1332.22.2
DGP1601.2-1.5901.5φ1552.2
DSP1601.8-2.5901.5φ1552.23.5
DGP2001.8-2.01321.5φ1953.0
DSP2004.0-5.01321.5φ1953.04.5

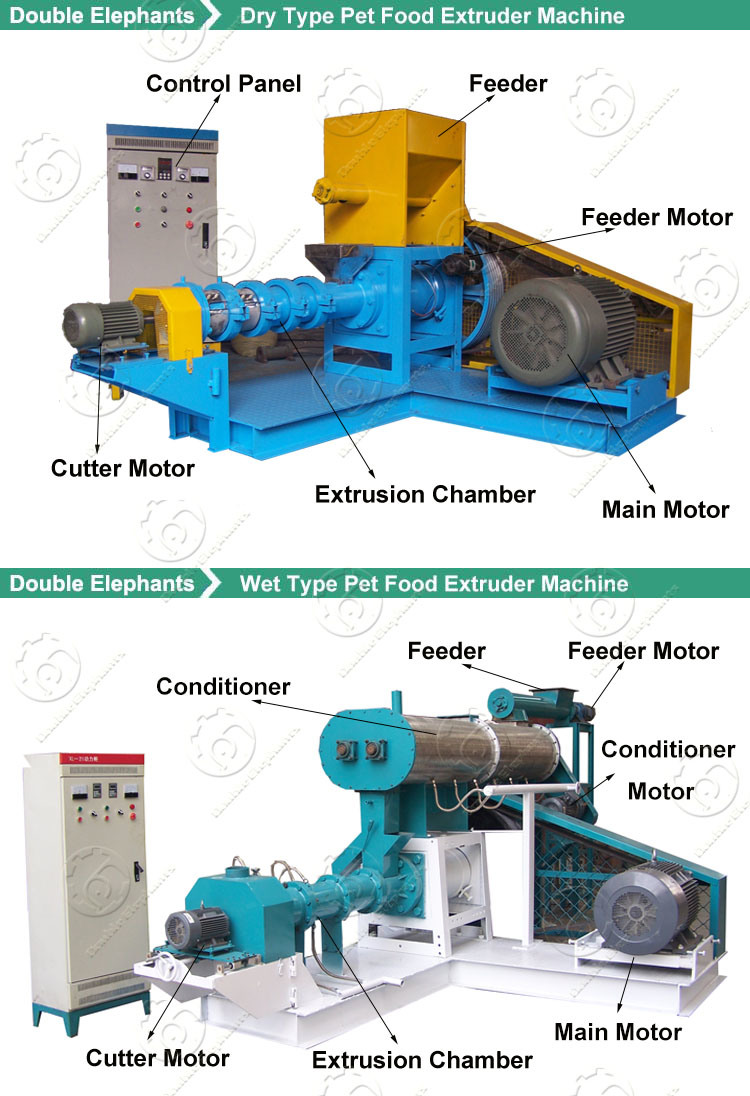

Working principle:

After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.

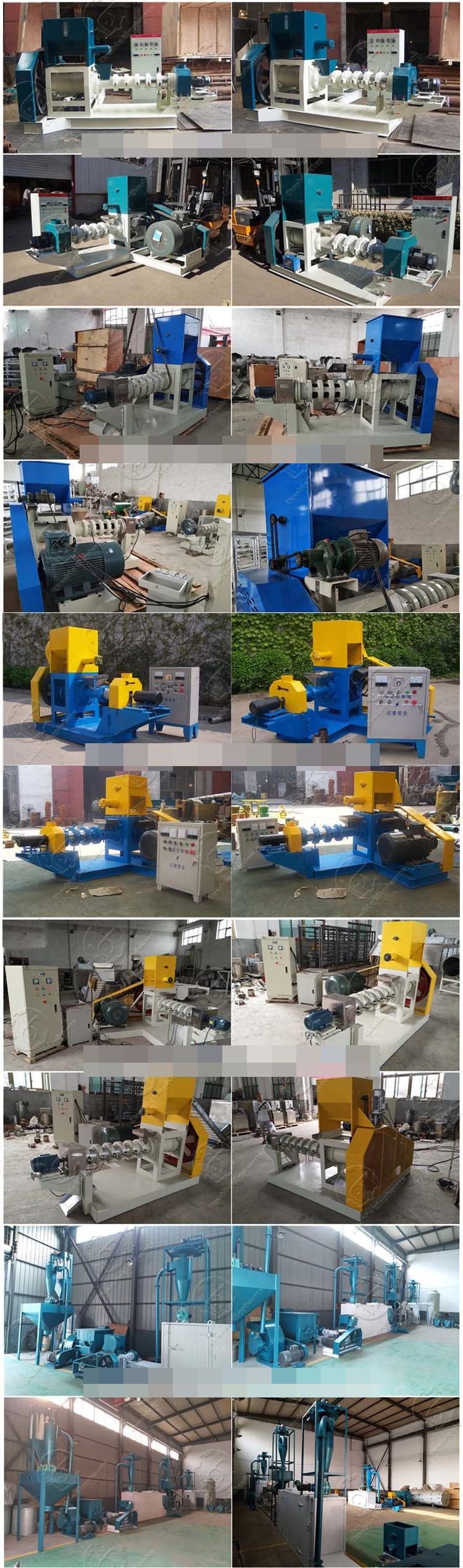

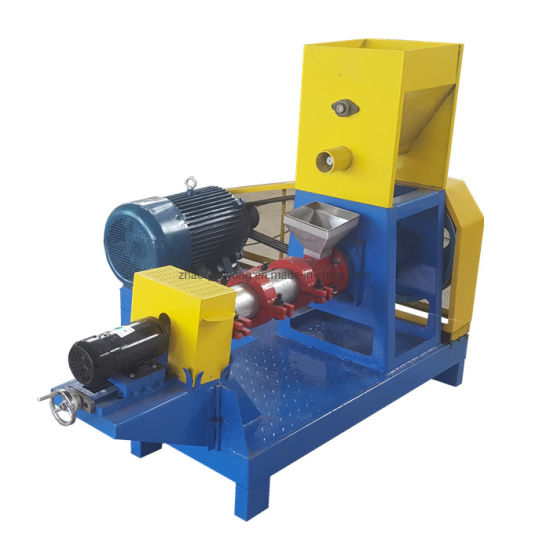

Product Show

Our Services

Packaging & Shipping

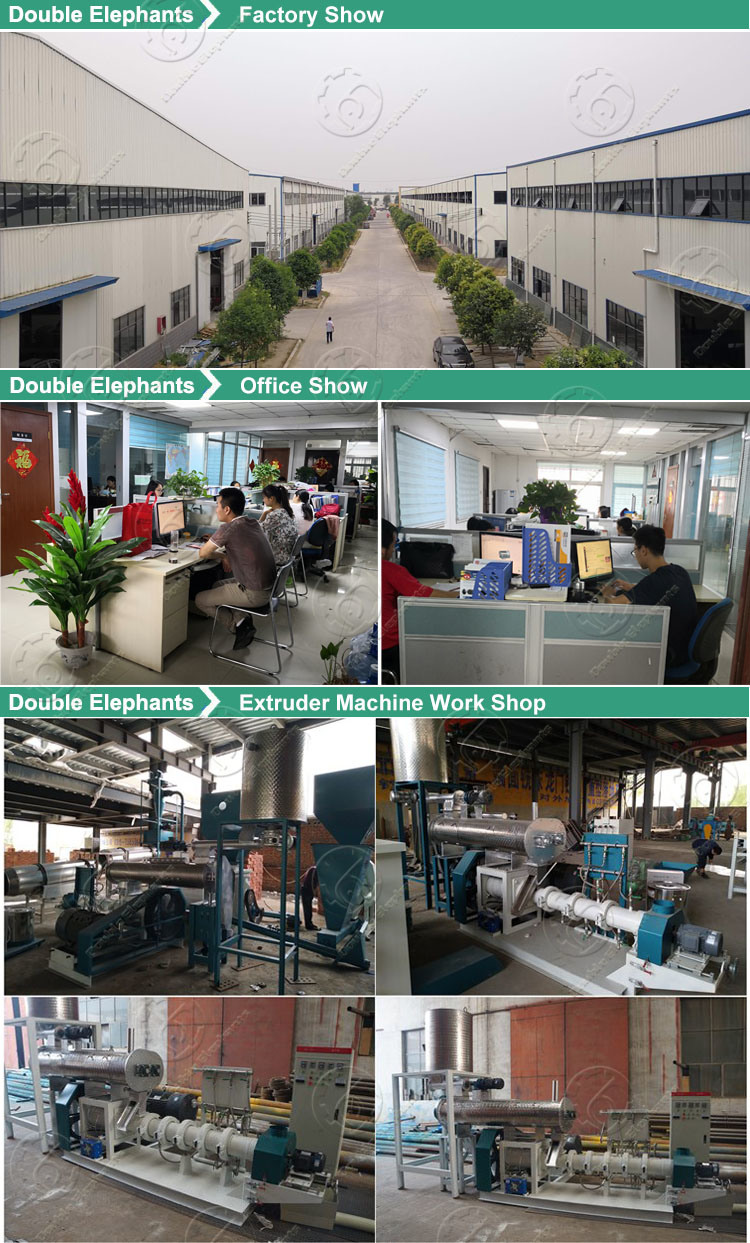

Company Information

Henan Double Elephants Machinery I/E CO.,LTD is A professionalcollectionofresearch,design,productionandsalesof Oil making machine,animal food machine ,extruder machine for pet and snacks,and many other kind of food machine.

Ourcompanyhasabigmanufacturingfactorywith40yearsrichexperiencesbasedononeoriginalmachinerystartedbyourgovernmentmachinerydepartment,weadoptsadvancedproductiontechnology,sophisticatedequipmentandhavewonabundantstrengthaftermanyyearsofdevelopmentaccumulation.

Ourpuffedmachineryhaswonthe1999bestnationalevaluation,andpassedtheISO9001InternationalQualityAuthenticationin2000.Moreproudly,wehaveachievedtheCEcertificatetoconvenientmoreEuropeancustomers.



Customer Vist


CE&ISO Certification
