The1year
- Model NO.：
- MD-K420
- Certification：

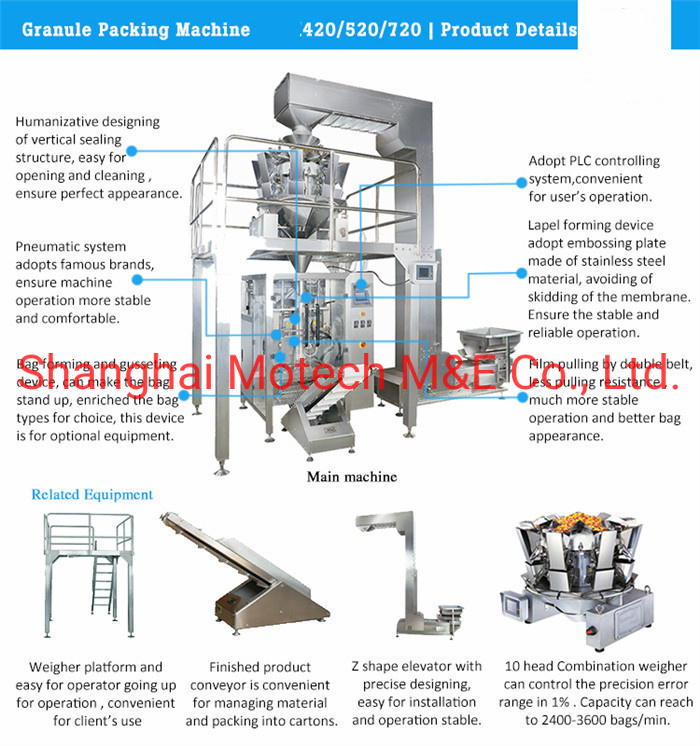

Automatic Multihead Weigher Solid Granule Rice/sugar/salt Packing Machine
| Name | Product name | Quantity | (Remark) |
Quotation of VFFS machine with combination weigher | Large-sized vertical packaging machine | 1 1set | Stainless steel frame |
10 heads combination weigher | 1 1set | Stainless steel frame | |
| Z Z type bucket elevator | 1 1set | Stainless steel frame | |
| Supporting platform | 1 1set | Stainless steel frame |
| Features: |
| Specification: |
| MD-420 Vertical packing machine |
| Bag length | 50-300mm(L) | |
| Bag width | 50-300 mm (w) | ||
| Max rolling film | 420 mm | ||
| Material | 304 | ||
| Packing speed | 10-60bags/min | ||
| Air consumption | 0.65Mpa | ||
| Gas consumption | 0.3m3/min | ||
| Voltage | 220V/50Hz | ||
| Power | 2.2KW | ||
| Dimension | 1080mm(L)*1300mm(W)*1400mm(H) | ||
| Machine weight | 600KG |

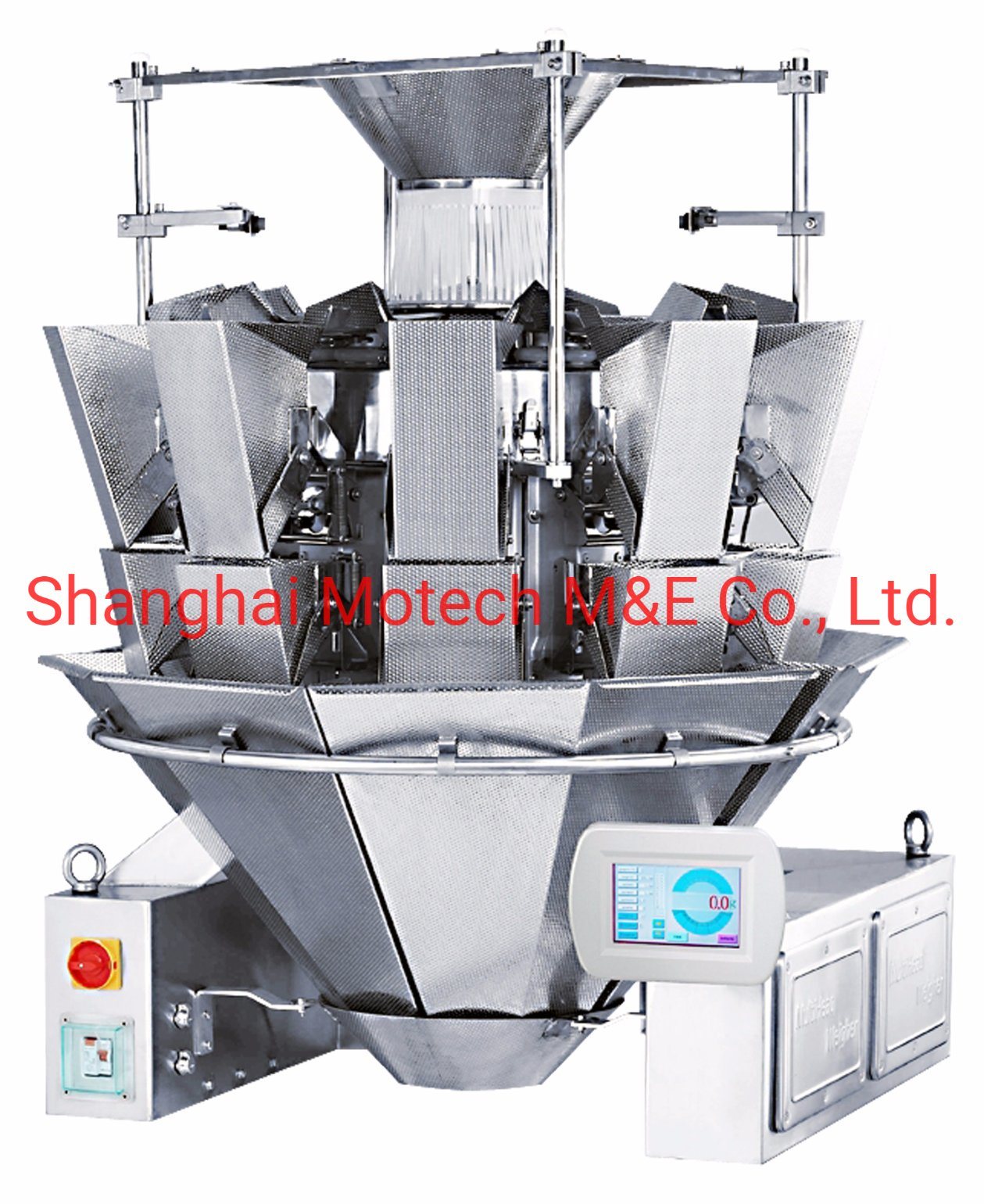

| 10 heads scale(weigher) |
 | Max. Cap.(g) | 10-1000g |
| Weighing Accuracy(g) | ±0.5-2g | |
| Max. Weighing Speed | 65PPM | |
| Hopper Volume | 1600ml | |
| Control Panel | 7 "LCD Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone | |
| Driving System | Step Motor | |
| Power Requirements | 220V / 1000W / 50/60HZ / 10A | |
| Packing Dimension(mm) | 1620(L)x1100(W)x1100(H) | |
| Gross WGT | 420KG |

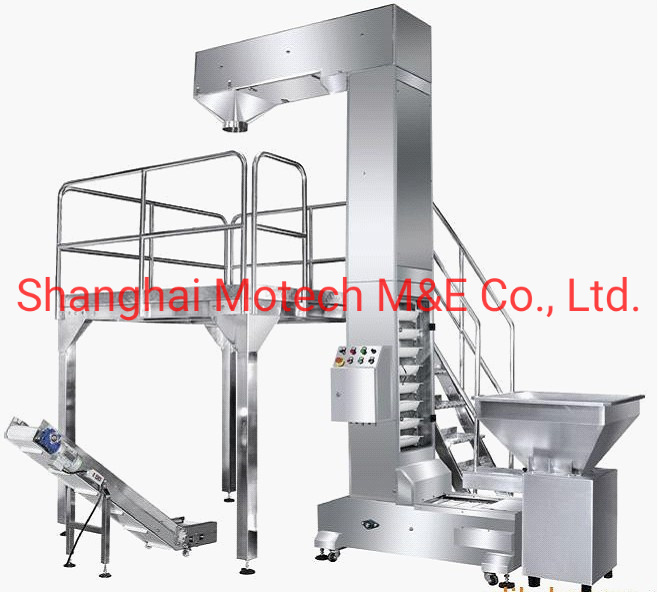

| Z-shape material elevator |
| Model | MD-350 | |
| Convey speed | 3750mm/min | |
| Power | 750W | |
| Convey Measure | 4T/H(Rice) | |
| Overall size | 3000(L)×650(W)×3750(H)mm |
| Platform for scale(weigher) |
| Model | MD-2-2 Platform | |
| Maximum Loading Weight | 2T-3T | |
| Equipment Size | 2000mm*2000mm*2000mm | |
| Net Weight | 350kg |
| Finish product conveyor |
| Model | MD-130 | |
| Convey speed | 30M/min | |
| Belt | Food grade polypropylene(PP) | |
| Voltage | Single-phase AC220V,50HZ | |
| Power | 40W | |
| Packing size | 1600mm(L)*520mm(W)*1000mm(H) |
| Application: |
Suitable for many kinds of measuring equipments, and package different kinds of products; such as puffy food, shrimp roll, peanut,popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.
