- Model NO.：
- AM-7045
- Certification：
- GS, CE

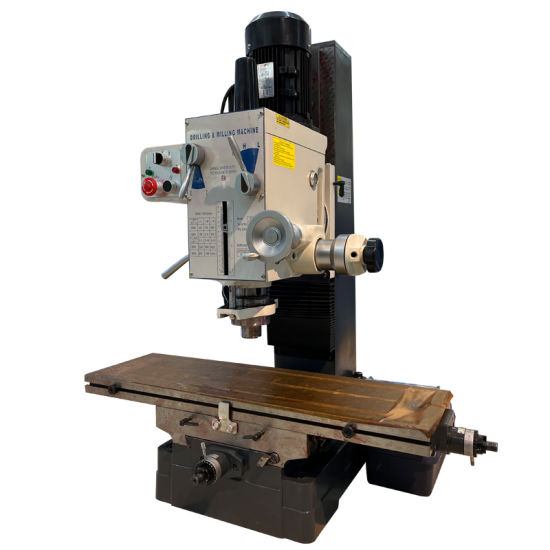

.Gear Head Auto Feed Drilling & Milling Machine
.Hardened Gear Large Driven Torque
. High Strength Square Column
. Easy Read Depth Ruler
.High Precision GrindingLow Noise
. Low Noise
Product Parameter
| Model | AM-7016 | AM-7025 | AM-7032 | AM-7045 |
| Max.Drilling Capacity (mm) | 16 | 25 | 31.5 | 45 |
| Max.Face Milling Capacity (mm) | 40 | 63 | 80 | 80 |
| Diameter of Vertical Milling (mm) | 10 | 13 | 22 | 28 |
| Spindle travel (mm) | 80 | 110 | 130 | 120 |
| Distance spindle axis to column generator line (mm) | 182 | 240 | 202 | 260 |
| Max.Distance spindle nose to table (mm) | 360 | 510 | 460 | 475 |
| Spindle speeds range (r/min) | 320-3300 | 290-2150 | 100-2150 | 95-1600 |
| Spindle taper | MT2 | MT3 | MT3 | MT4 |
| Spindle speeds series | 12 | 5 | 12 | 6 |
| Dimension of worktable surface (mm) | 420*152 | 555*195 | 730*210 | 730*210 |
| Main Motor (w) | 550 | 750 | Single-phase 1100 Three-phase 1500 | Single-phase 1100 Three-phase 1500 |
| Net weight (G.W/N.W) | 80/75 | 190/160 | 285/250 | 318/278 |
| Packing dimension (cm) | 88*62*26.5 | 87*67*102 | 86*74*124 | 86*74*124 |
FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine,Bench Auto Feed Drilling Machine and Auto Feed Drilling & Milling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.
