- Model NO.：
- SLG90
- Certification：
Product Description
Twinscrew Extruder Pet Food Making Machine use meat powder, fish meal, bone meal, corn flour, cereals, and beans are used as raw materials to produce pet food an fish feed with tunique taste and new shape, such as heart, bones, stars, triangles, circles, etc. Meet all kinds of pets, such as: dogs, cats, turtles, fish, shrimp, etc. let the pet eat happier and live healthier. And this line can also make the cored filling pet food, it will be more popular with modern pets.
1).Raw materials of dog/cat/fish food:wheat/ corn flour, fish meal, born powder, animal oil,soya meal, mustard cake...
2).Final food:different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3).Pet Dog food processing machineCapacity: 20-50kg/h,50-80kg/h,100-150kg/h, 200-250kg/h,300-400kg/h,400-500kg/h500-600kg/h,600-800kg/h,800-1200kg/h,1.5-2.0t/h,2-3t/h.
4).Consumption:Low electricity and labor consumption
5).Design:With flexible design based on the client's demands, we provide turn key project.

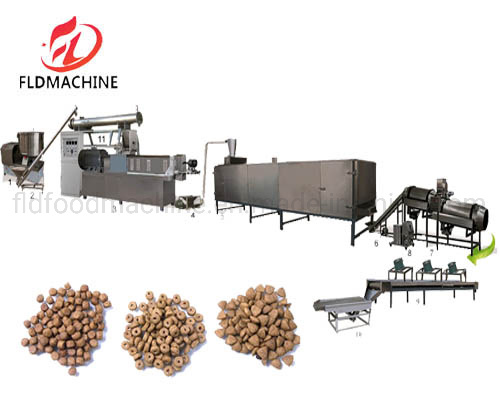

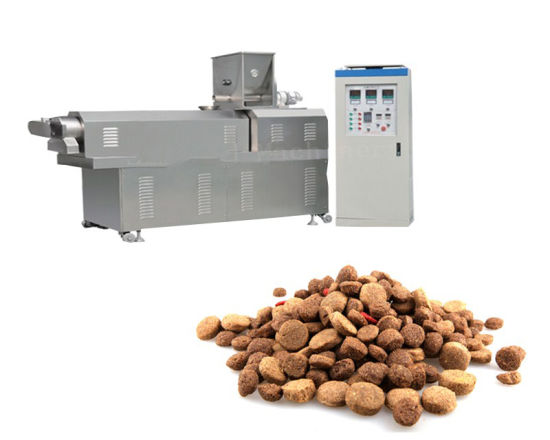

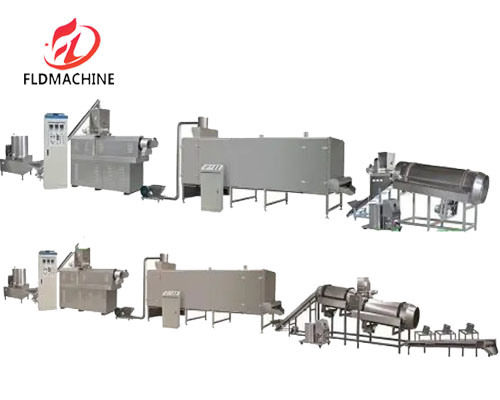

Detailed Photos1.SLG65/70 Pet Dog food processing machine(100-150kg/h,200-250kg/h)

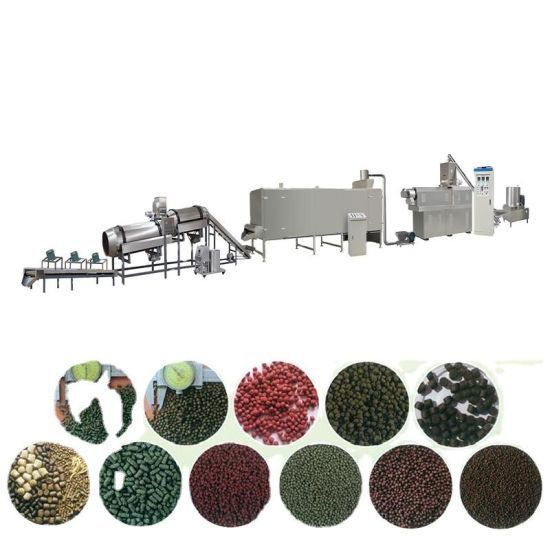

Mixer → screw conveyer →SLG65 twin-screw extruder → hoister(air conveyer) → 5-layer 5 meter drying oven → single drum flavoring line → cooling machine → packing machine(optional).

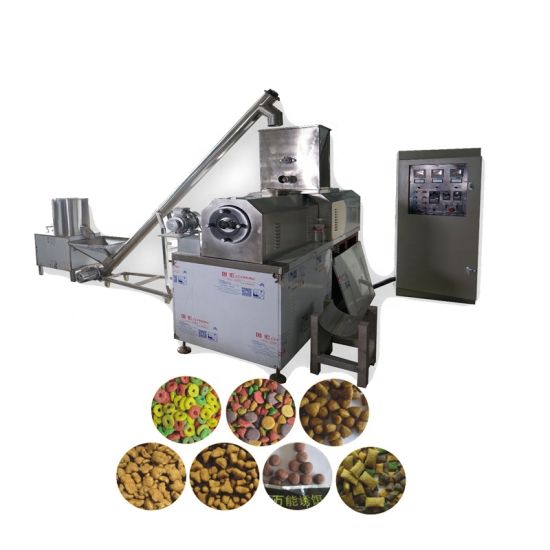

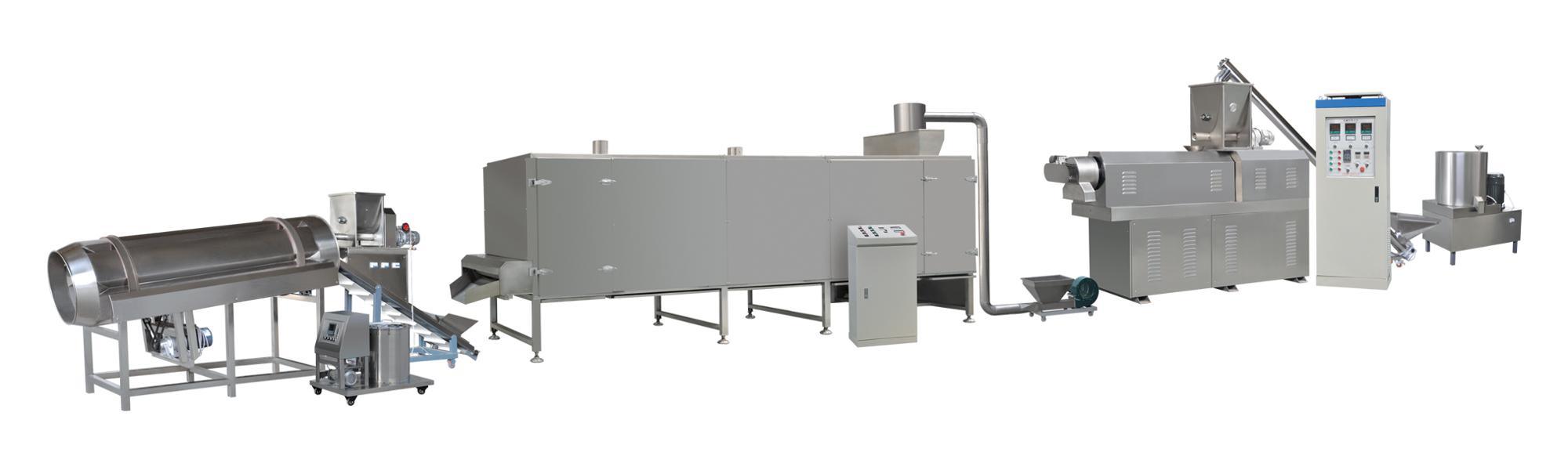

2.SLG75/85 Pet Dog food processing making machine(300-400kg/h,400-600kg/h)
Mixer → screw conveyer → twin-screw food extruder → hoister(air conveyer) → 5-layer 8 meter drying oven → double drum flavoring line → cooling machine → packing machine(optional).

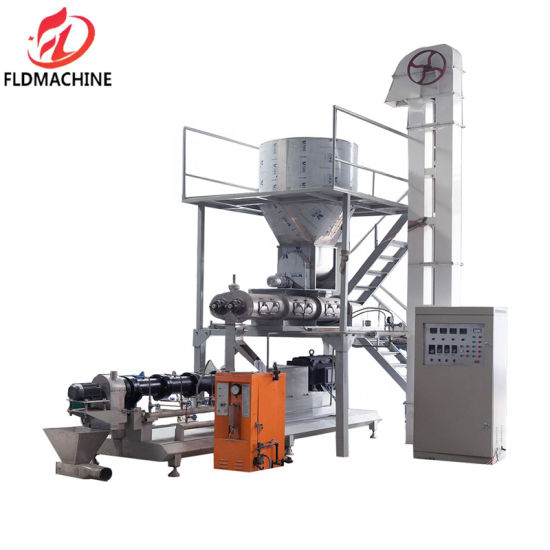

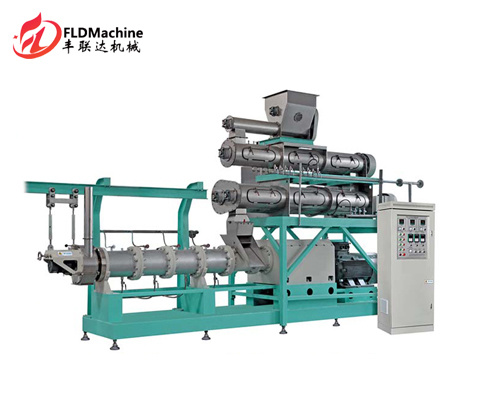

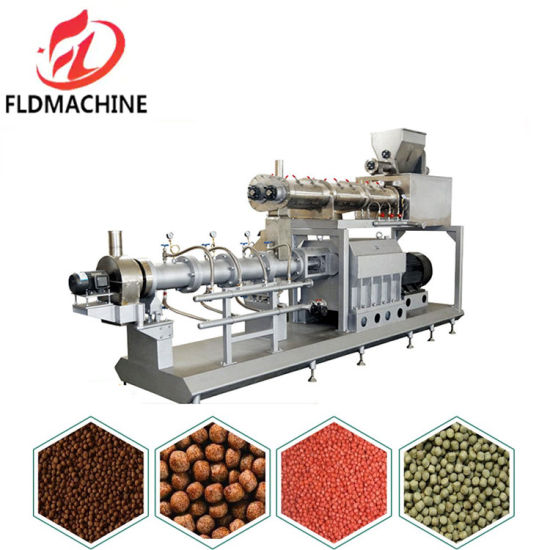

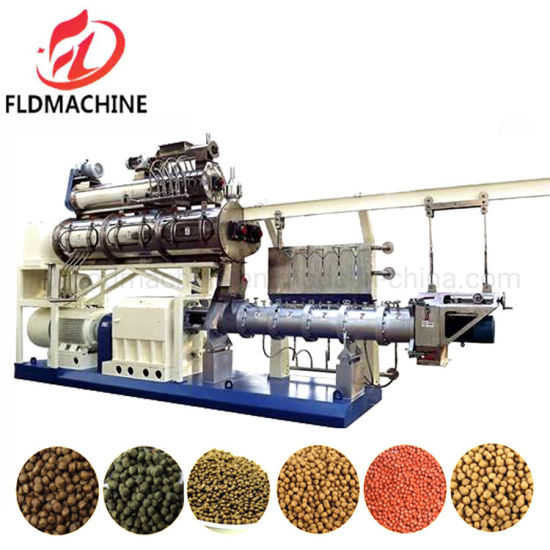

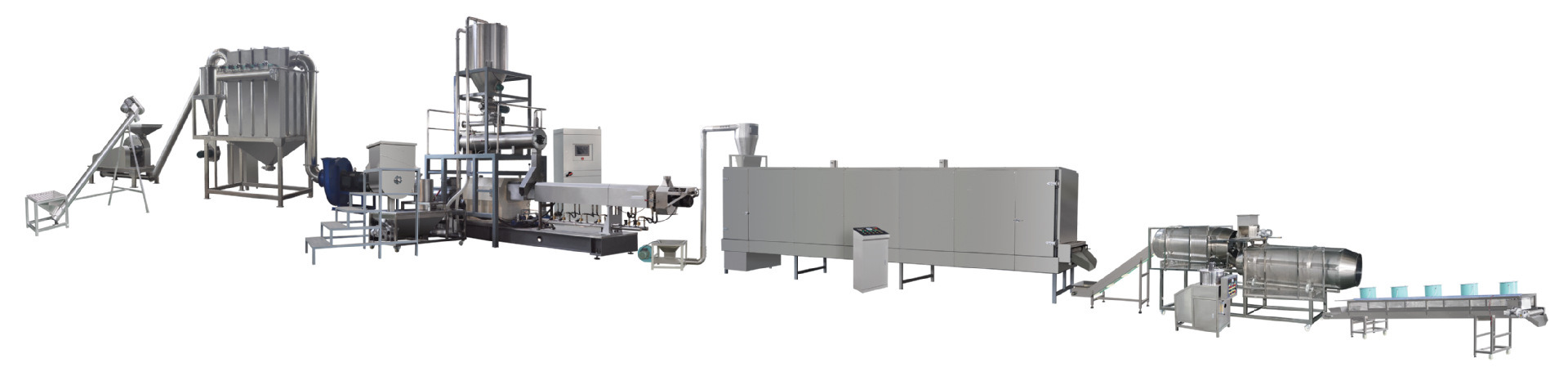

3.Floating Fish feed pellet making machine(wet types extruder)
SLG90(800-1200kg/h) / SLG95(1000-1500kg/h) / SLG100(2000-3000kg/h)
Raw materials mixing system → screw conveyer(bucket elevator) → Storage hopper→ steam pre-conditioner→SLG85/SLG90/SLG98 twin-screw extruder → hoister(air conveyer) → 7-layer 8 meter drying oven (bigger ovens) → double-drum flavoring line → cooling machine → Storage bin →packing machine(optional).

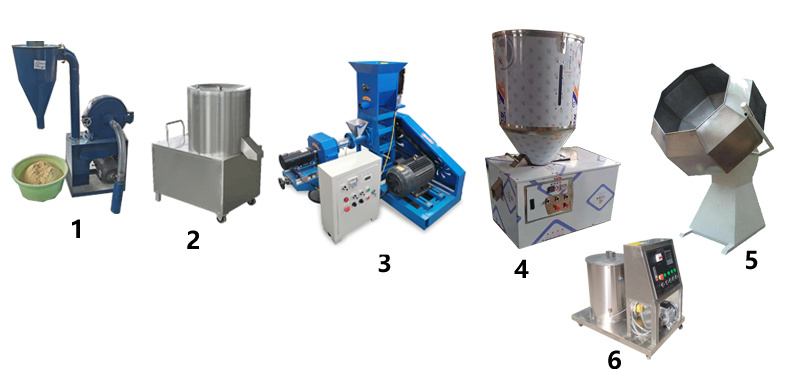

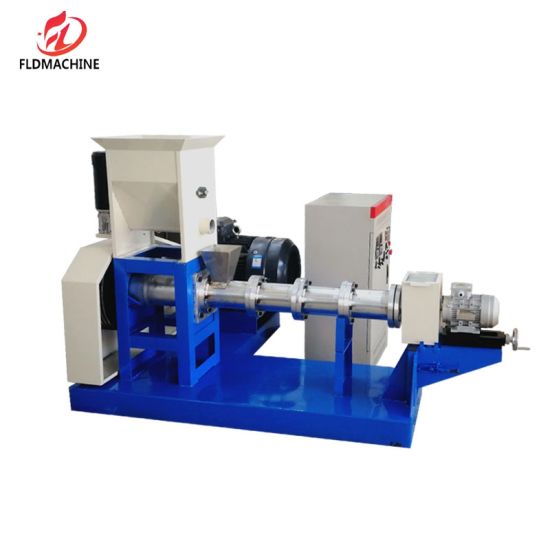

4.Single screw floating fish dog cat food making machine.

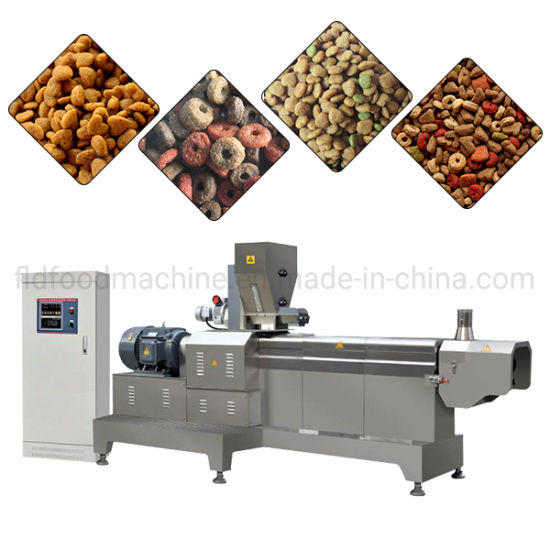

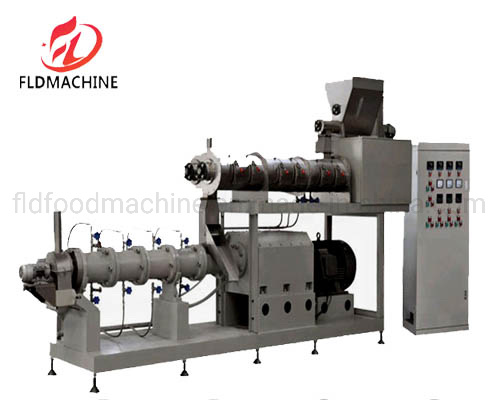

Twin screw Pet fish feed extruder
| Model | SLG65 | SLG70 | SLG85 | SLG90 | SLG95 |
| Install Power | 65KW | 110KW | 190KW | 180kw | 300KW |
| ConsumptionPower | 42KW | 77KW | 133KW | 130 | 210KW |
| Output | 120-150KG/H | 220-260KG/H | 400-600KG/H | 800-1200KG/H | 1000-1500KG/H |
| Dimension | 15000×1300×2200 | 20000×1300×2200 | 25000×1300×2500 | 30000×1300×2500 | 38000×1300×3000 |

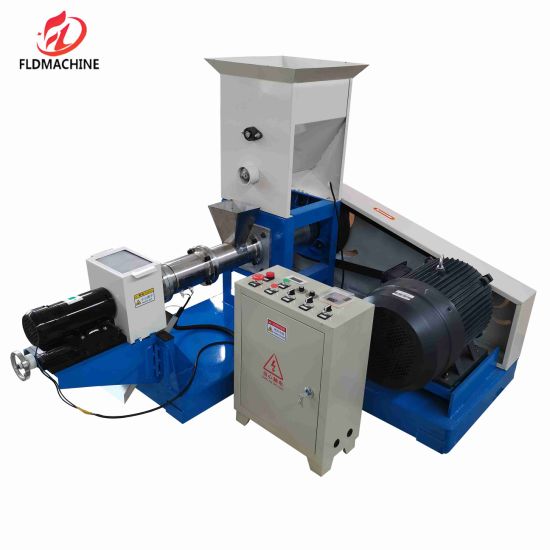

Single screw Pet fish food machine
Model | Capacitykg/h | Main Power | Feeding Power | Screw diameter | Cutter power | Pellet size |
FLD-40 | 40-60kg/h | 7.5kw | 0.4kw | φ40mm | 0.4kw | 1-10mm |
FLD-50 | 60-80kg/h | 11kw | 0.4kw | Φ50mm | 0.4kw | 1-10mm |
FLD-60 | 100-150kg/h | 15kw | 0.4kw | Φ60mm | 0.4kw | 1-10mm |
FLD-70 | 180-250kg/h | 18.5kw | 0.4kw | Φ70mm | 0.4kw | 1-10mm |
FLD-80 | 250-300kg/h | 22kw | 0.4kw | Φ80mm | 0.6kw | 1-10mm |
FLD-90 | 300-400kg/h | 37kw | 1.1kw | Φ90mm | 0.6kw | 1-12mm |
FLD-120 | 400-600kg/h | 55kw | 1.1kw | Φ120mm | 1.5kw | 1-12mm |
FLD-135 | 800-1000kg/h | 75kw | 1.1kw | Φ133mm | 2.2kw | 1-12mm |
FLD-160 | 1200-1500kg/h | 90kw | 1.5kw | Φ155mm | 2.2kw | 1-12mm |
FLD-200 | 1500-2000kg/h | 132kw | 1.5kw | Φ195mm | 3.0kw | 1-12mm |

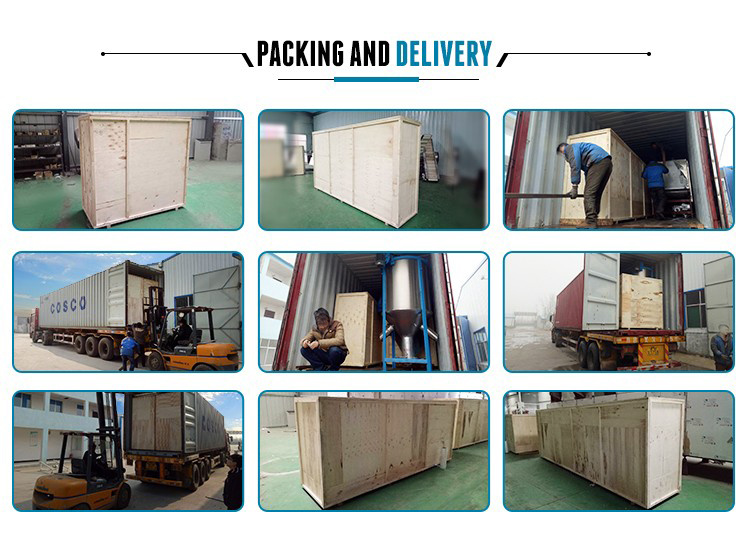

A. We will pack all necessary machines into wooden cases. For drying machine, and heavy extruders, we will fix them in the container with very strong iron wire.
B. If by LCL for small quantity machines, we will let send to QINGDAO port for loading.
C. If need containers, our trucks will take the containers from port to our factory for professional and safely loading, and then return to port for shipment.
Delivery Details :3-30 days after order.
Jinan FLD Machinery Co., Ltd. is aprofessional supplier of industrial machines. Our companys motto is :"Service and quality are equally important". We are located in Jinan, the Capital of Shandong Province. Jinan FLD Machinery Co., Ltd. is vested with many staffs with many years of experience in various applications of machines.
Our main products include snacks making machine, pet food making machine, fish feed making machine, soya protein making machine. All the machines can be customized our professional engineers will supply the most suitable solution to different customers to meet their various demands.We exported the machines to many countries all around the world, such as ltaly, German, Russia, Turkey, Australia, Indonesia, India etc. Almost all the customers speak highly of our machines and service,and they continue to buy from us again and again.
Whatever machine you need from China, contact Jinan FLD Machinery Co., Ltd., please. We will supply you high quality machines with best solution based on our strong techniques and rich experience.
Factory standing area:33000 square meters.
Workshop standing area:20000 square meters.
Office area:800 square meters standing area.
Before sales service :
a.) We provide you the suitable solution,which is useful and convenient
b.) We produced the product you need in our factory,you can buy it without any hesitate.
c.) We provide you the factory design and processing line layout and also design for water and electric and gas etc.
d.) With much experienced technical team,we can meet customer personalized requirement,produce the customized machine for you.
After sales service :
a.) Consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;
e.) Training of equipment maintenance and operating personally;
d.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
1. What is your machine warranty ?
One year, main parts warranty time will be 2or 3years.
2. Do you supply spare parts ?
Yes, we supply spare parts with reasonable price;
3. What can you provide for after sale service ?
We can send engineers to your factory for installation and training if customers' required.
4. If we show you our layout of factory, can you help to design the whole process line ?
Yes, our experienced engineers and technical employee can help you to arrange the layout and installation of whole process line based on your real situation;
5.If we have samples of new products, can you help to analysis and design the machine ?
Yes, Our technical department can help to analysis, design and test the new products you offered.
