- Model NO.：
- DSP90-B
- Certification：
- CE, ISO

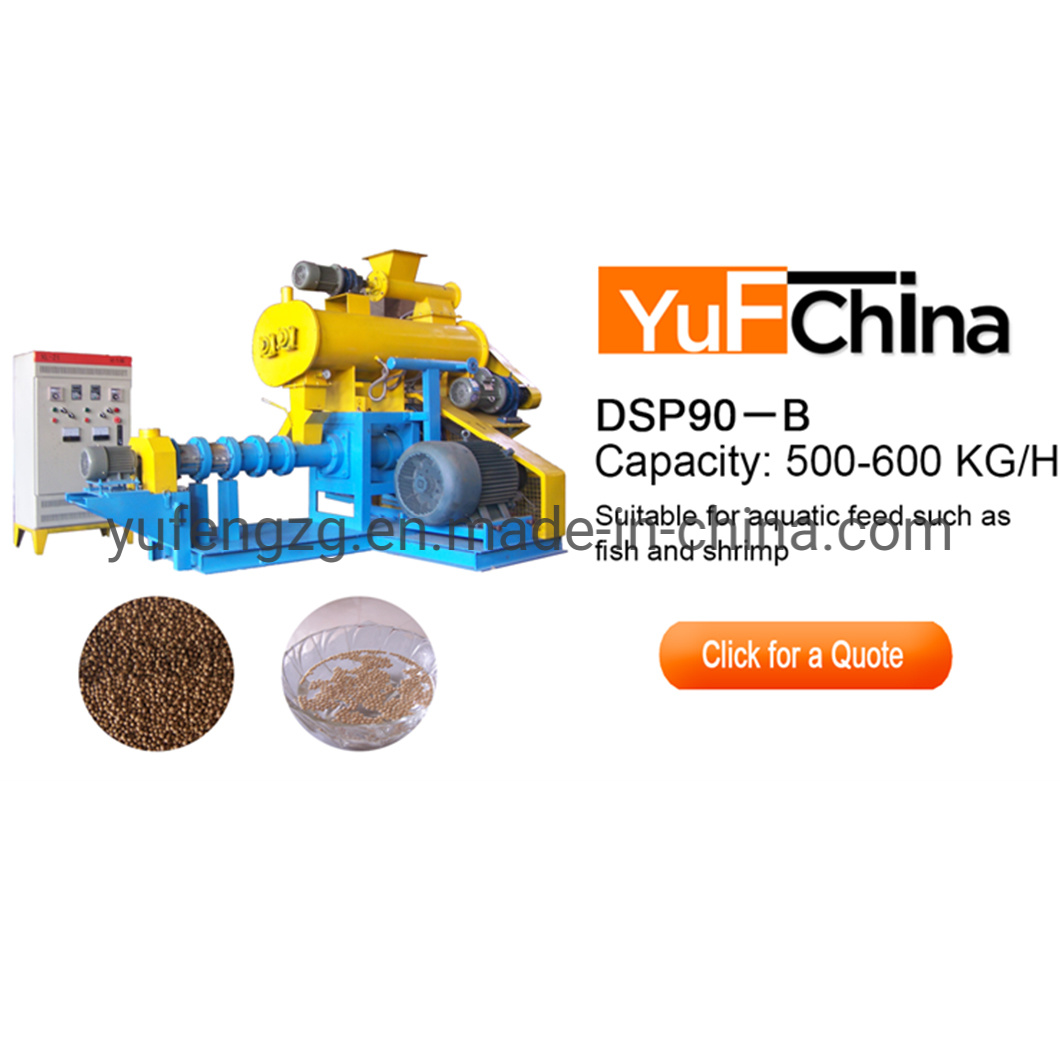

The machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing pellets can float on water surface for over 12 hours,.According to your capacity and material ,We wil suggest you different model fish feed pellet machine.
Features ofFish feed machine
1. By adjustment of feed formulation and degree of expansion, the fish feed extrudercan produce all kinds of floating, sinking, and slow sinking fish feed pellets.
2. Different molds can be chosen to make pellets with different diameters ( 0.9-15mm ) and shapes.
3. the fish feed extruderhas the advantage of high efficiency and low power consumption.
4. Two types of pelletizing solution we can do, that is dry type and wet type.
Dry Type Pelletizing Solution:
No boiler needed in this process, even we need to dry the steam while pellet making. Raw material will be grain, soybean, etc.
Wet Type Pelletizing Solution:
Boiler Steam & conditioner are needed in this process, the steam will fully contact with the cereal and other raw materials.
5. Please be understand, whatever you choose dry type or wet type solutions, this fish feed making machinecan make fish feed, shrimp feed, catfish feed, golden fish feed etc kinds of fishes and also pet foods.
Specifications ofFish feed mill
| Model | Capacity kg/h | Motor power kw | Cutting power kw | Feeding power kw | Modulator power kw | Screw dia. mm |
| DSP60-C | 150-200 | 15 | 0.4 | 0.7 | / | 60 |
| DSP70-B | 200-350 | 18.5 | 0.4 | 0.4 | / | 70 |
| DSP70-C | 250-350 | 18.5 | 0.75 | 0.75 | 1.1 | 70 |
| DSP80-B | 400-500 | 32 | 1.1 | 1.1 | 1.5 | 80 |
| DSP90-B | 600-700 | 37 | 1.1 | 1.1 | 2.2 | 90 |
| DSP120-B | 700-850 | 55 | 1.5 | 1.5 | 2.2 | 120 |
| DSP135-B | 1000-1200 | 75 | 2.2 | 1.5 | 3 | 135 |
| DSP160-B | 1800-2000 | 90 | 2.2 | 2.2 | 3.5 | 155 |
| DSP200-B | 3000-4000 | 132 | 3 | 3 | 4.5 | 195 |
More Pictures:
Welcome to know more about our fish feed processing machine.
