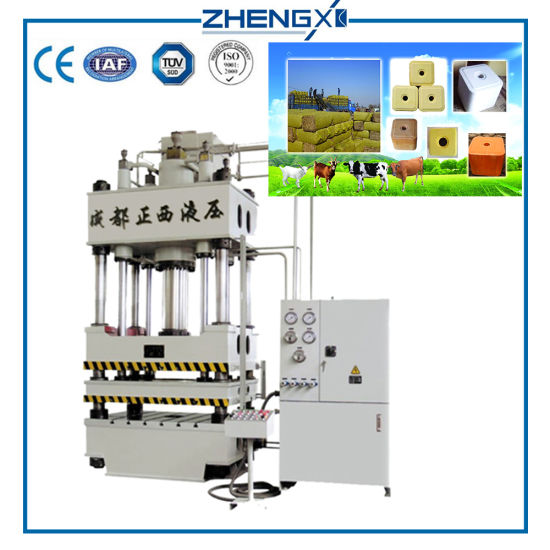

Animal Salt Lick Blocks Hydraulic Press
The Animal Salt Lick Blocks is completely designed and produced according to the ruminant's favorite feeding habit, and adds the trace elements such as mineral elements, vitamins, etc., which are routinely required for ruminants, and can supplement the artificial animals such as cows and sheep. The deficiency of various trace elements in the diet prevents the occurrence of peculiar food ravages in ruminants, mastitis in cows, hoof disease, retention of placenta, postpartum goat milk, and slow growth of lambs.With the development of the aquaculture industry, the barium salt block has become an essential high-performance additive in most intensive farms and enjoys the reputation of "health products" for cattle and sheep.
Our company's small-power, high-pressure hydraulic cattle and sheep fully automatic salt block presses are four-column hydraulic presses with high pressure and high precision. This press adopts advanced machine, electricity, liquid and gas integrated control, with automatic feeding device, floating pressure, so that the product molding density is effectively controlled, the hydraulic system uses advanced cartridge valve block to ensure that the hydraulic machine continuous, frequent Stable work; loading, molding, three-position mechanical stopper positioning and stepless adjustment mechanism, to determine the stability of the product's geometric dimensions. It is equipped with oil cooling device, centralized control using PLC and man-machine interface, and mechanical limit device to ensure the consistency of products.
Y32 SeriesAnimal Salt Blocks Hydraulic Pressdata
| Type | Rated pressure | Stroke of slide | Stroke knock-out cylinder | Power |
| Yz32-63 | 630KN | 500mm | 200mm | 7.5kw |
| Yz32-100 | 1000KN | 600mm | 200mm | 7.5kw |
| Yz32-315 | 3150KN | 800mm | 300mm | 22kw |
| Yz32-500 | 5000KN | 900mm | 350mm | 44kw |
| Yz32-1000 | 10000KN | 900mm | 350mm | 60kw |
| Yz32-2000 | 20000KN | 1200mm | 400mm | 145kw |
| Yz32-4000 | 40000KN | 900mm | 360mm | 350kw |
For the press machine,besides the above model, we accept customizedaccordingly. pls advise thespecific requirments,we will design the hydraulic embossing press machine for you.
After-sale service
1.Personnel training
Free training for about one week.
2. After-sale service
One year warranty.During warranty period,free maintenance service can be provided.(except man-made faults or damages arising from irresistible natural factors)
3.Installation
Customers need to pay the commission to our proffessional engineer, and travel expense is on foreign customer.(Including round ticket and accommodation cost)
Our companyis anISO 9001certified Company, and as an approved supplier for the automotive sector, has also received theCEcertificates.This demonstrates that the Quality Assurance System has been fully introduced and adopted, in the interests of providing absolute reliability in our products and careful attention to our customers.
