- Model NO.：
- SJ-A45/50/55/60/65
- Certification：
- CE, ISO9001:2008
Usage:

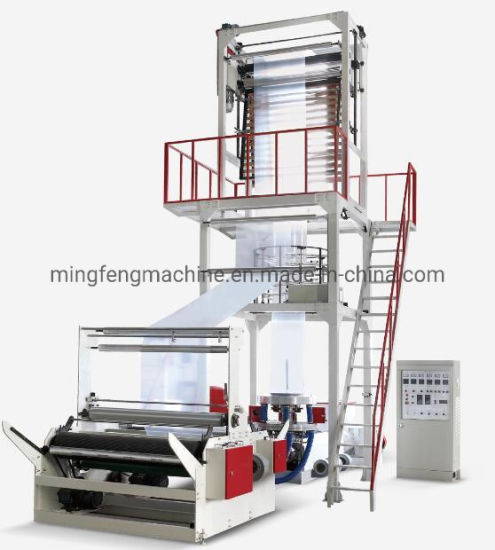

This kind machine is plastic film blowing machine,for making HDPE,LDPE,LLDPE plastic film rolls.
The film widely used for agricultural film,greenhouse film,plastic bag making,etc
Function Description:
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts variable frequency motor to improve the speed regulating stability and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, it can achieve the best effect of cooling.
Optional Device:
1.Auto loader
2. Film surface treater
3. Rotary die head
4. Air compressor
5. Mechanics screen changer
6. Double wind
If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
Main Technical Parameter:
| Model | SJ-A45 | SJ-A50 | SJ-A55 | SJ-A60 | SJ-A65 | ||||
| Suitable material | HDPE,LDPE,LLDPE | ||||||||
| Reduced diameter of film (mm) | 100-500 | 300-600 | 400-800 | 500-1000 | 600-1200 | ||||
| Film thickness of (mm) | HD:0.009-0.05 LD:0.02-0.15 | ||||||||
| Max.output(kg/h) | HD35 LD45 | HD 40 LD 50 | HD 50 LD 60 | HD 55 LD65 | HD60 LD70 | ||||
| Extruder | |||||||||
| Screwdiameter | 45 | 50 | 55 | 60 | 65 | ||||
| ScrewL/D | 28:1/30:1 | ||||||||
| Screw material | Sacm-645/38 crmoala | ||||||||
| Cylinder material | Sacm-645/38 crmoala | ||||||||
| Cylinder cooling(w) | 180*2 | 250*2 | 370*2 | 370*2 | 550*3 | ||||
| Main motor(kw) | 11 | 15 | 18.5 | 22 | 22 | ||||
| Cylinder temperature control | 3 | 3 | 3 | 3 | 3 | ||||
| Average power consume(kw) | 10 | 12 | 18 | 25 | 30 | ||||
| Type of die | |||||||||
| Die size(mm) | HD60 LD100 | HD80 LD120 | HD80 LD180 | HD100 LD200 | HD100 LD220 | ||||
| Temperature control | 3 | 3 | 3 | 3 | 3 | ||||
| Air ring | 1 | 1 | 1 | 1 | 1 | ||||
| Air blower power (kw) | 1.5 | 2.2 | 3 | 3 | 4 | ||||
| Center steady stick | 1 | 1 | 1 | 1 | 1 | ||||
| Take up unit | |||||||||
| Roller width(mm) | 160*650 | 160*850 | 165*1100 | 165*1200 | 165*1400 | ||||
| Take-up speed(m/min) | 10-100 | 10-100 | 10-100 | 10-100 | 10-80 | ||||
| Take-up motor(2.2) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | ||||
| Winding Unit | |||||||||
| Type | Surface friction type | ||||||||
| Winding motor(N.m) | 10 | 10 | 10 | 10 | 10 | ||||
| Winding speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 | ||||
| Voltage | 380V,50HZ,3PHASE | ||||||||
| Outline diameter (LxWxH)(mm) | 5000×1800×4200 | 5500*2200*4500 | 5500*2500*5200 | 5000*2400*4200 | 5500*2500*5200 | ||||
| Weight(kg) | 2000 | 2200 | 2500 | 2800 | 3000 | ||||
| Optional equipment | 1.Auto loader 2. Film surface treater 3. Rotary die head 4. Air compressor 5. Mechanics screen changer 6. Double wind | ||||||||
Company Profile:
Our Ruian Mingfeng Machinery Co.,Ltd. is aprofessional manufacturer of film blowing machine, plastic bag making machine, printing machine and recycling machine etc.Since the establishment of the company, market-oriented, relying on science and technology, vigorously develop new products.Our factory with excellent product quality, excellent corporate reputation, best-selling products all over the world, exported to Russia, Southeast Asia, the Middle East, Africa, South America and other places, by the users trust, get consistent praise.
Our aim: to the best products, to cheap prices, the best service to create afirst-class plastic machine enterprises.We strictly follow the purpose of the enterprise, take honesty as the foundation, warmly welcome friends from all of the world to visit, mutual benefit, and seek common development!

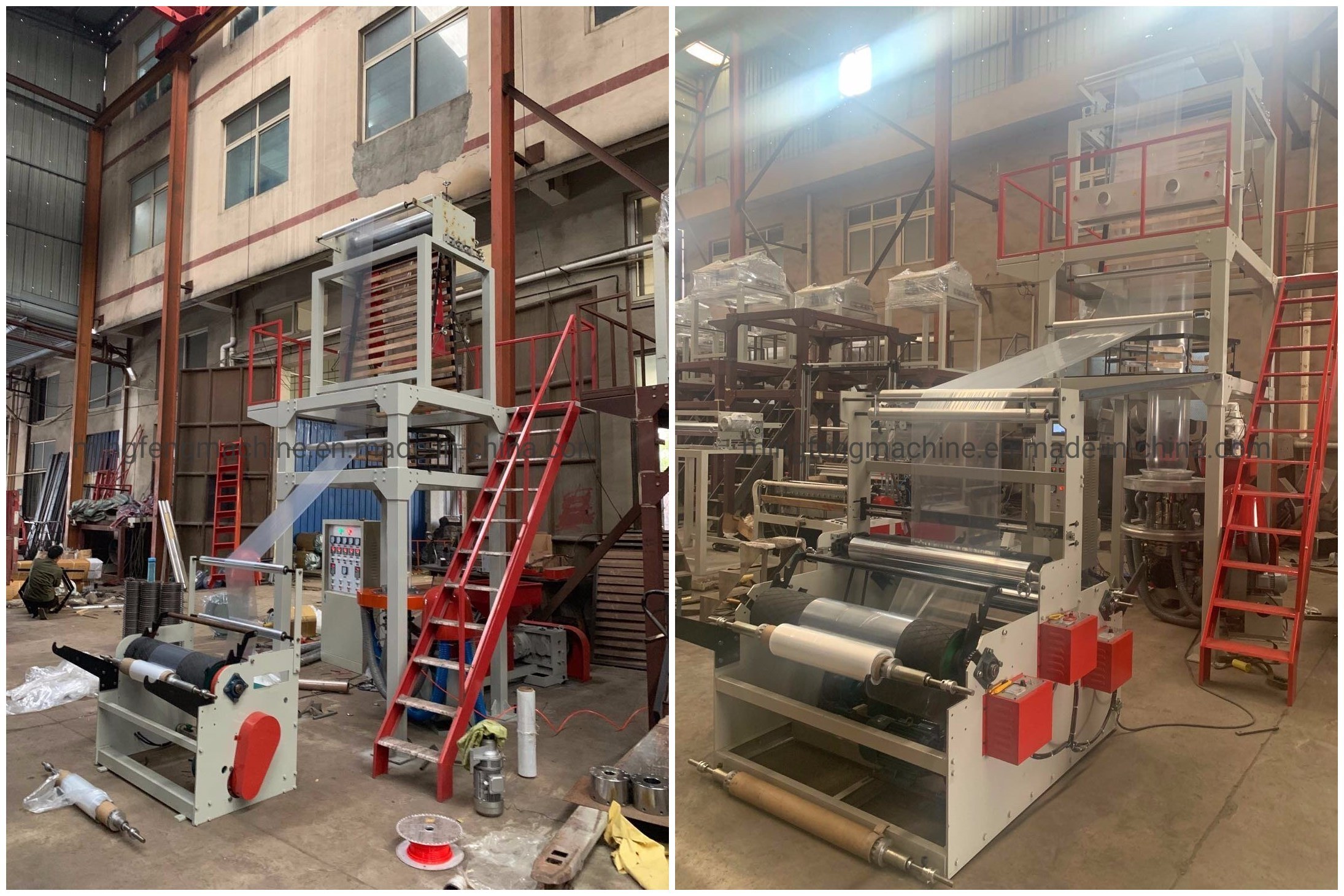

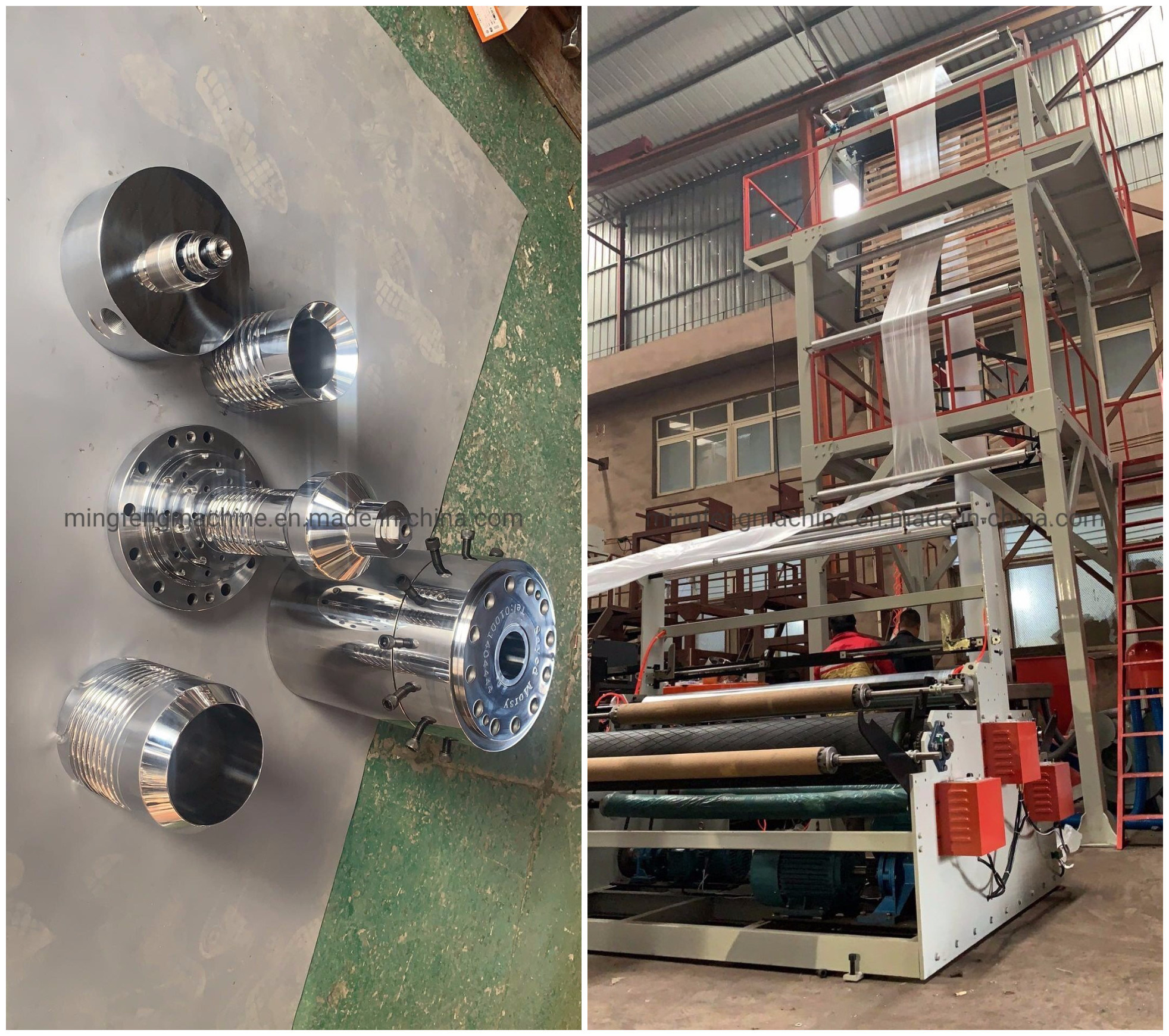

ntent="" style="background-color:#f7cbac;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Machine Details

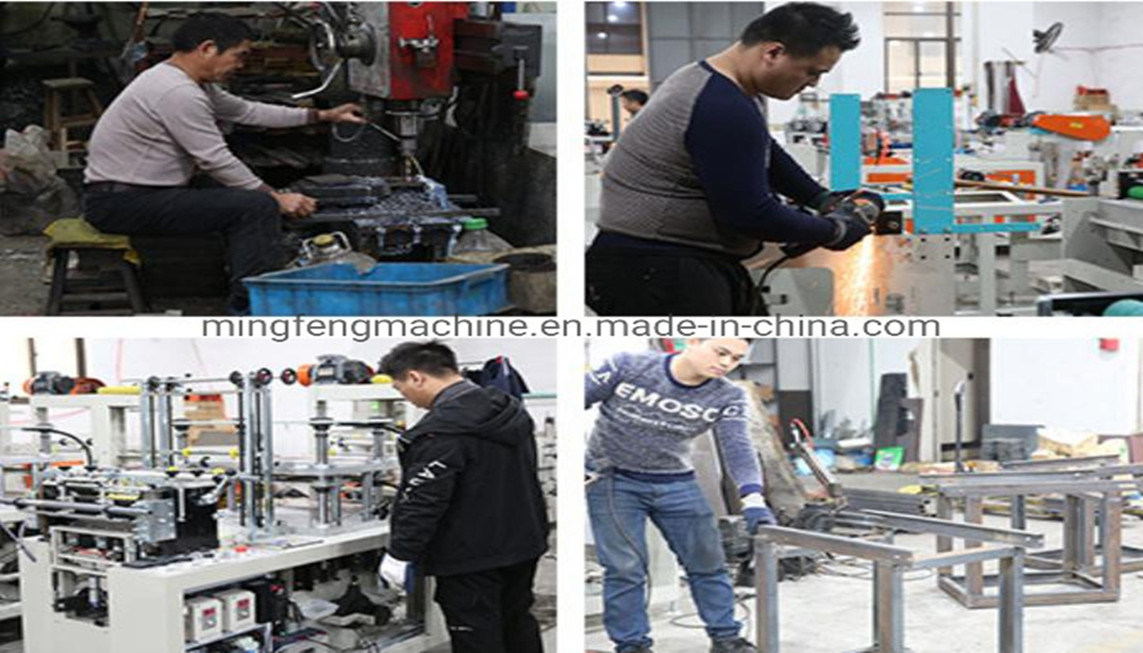

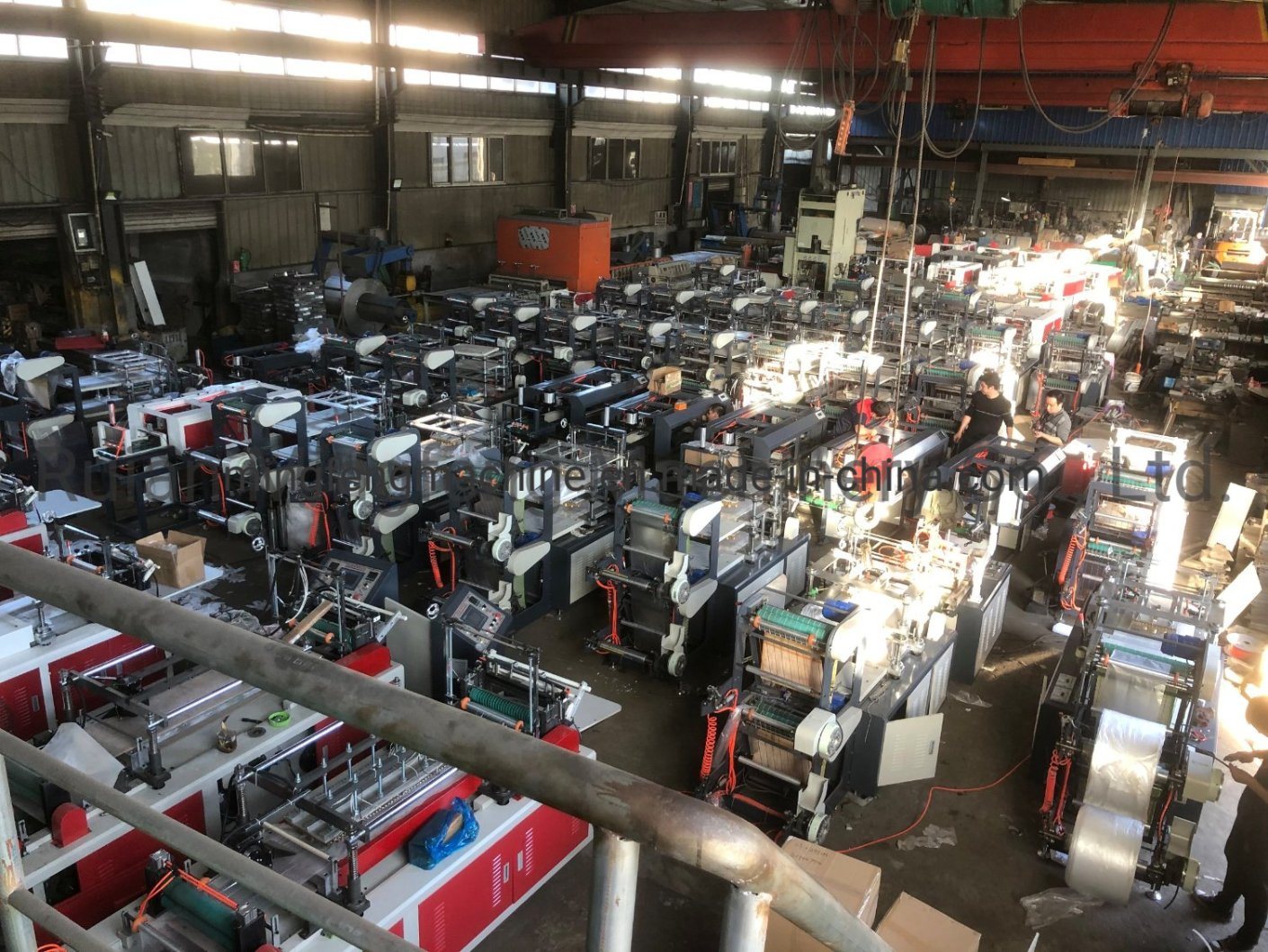

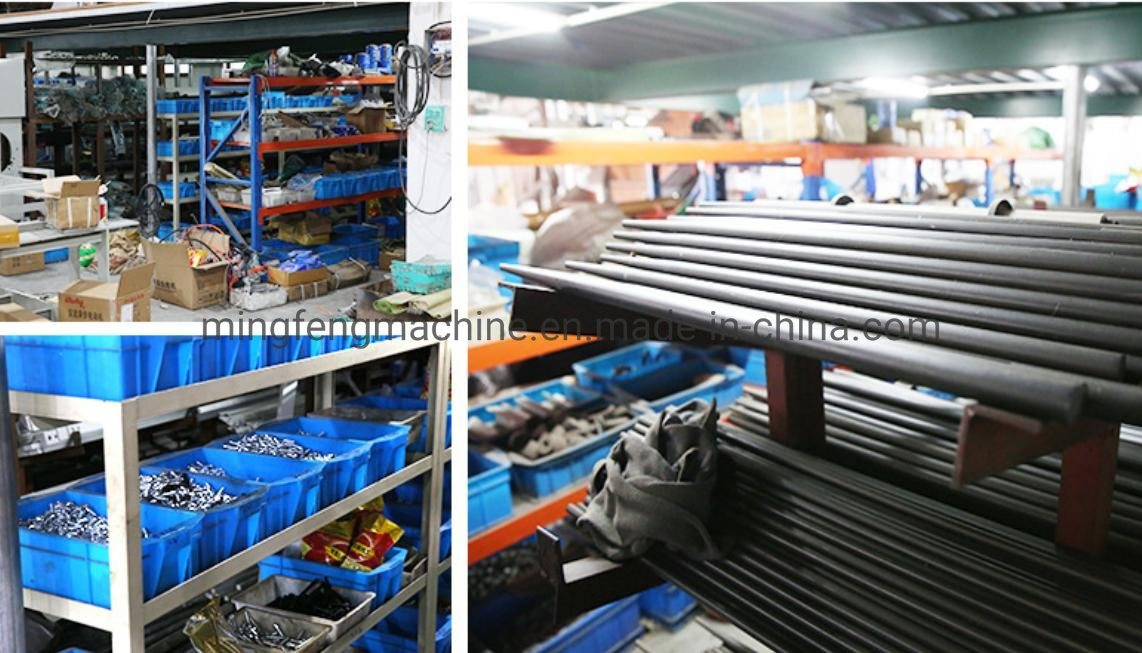

ntent="" style="background-color:#f7cbac;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Our Workshop

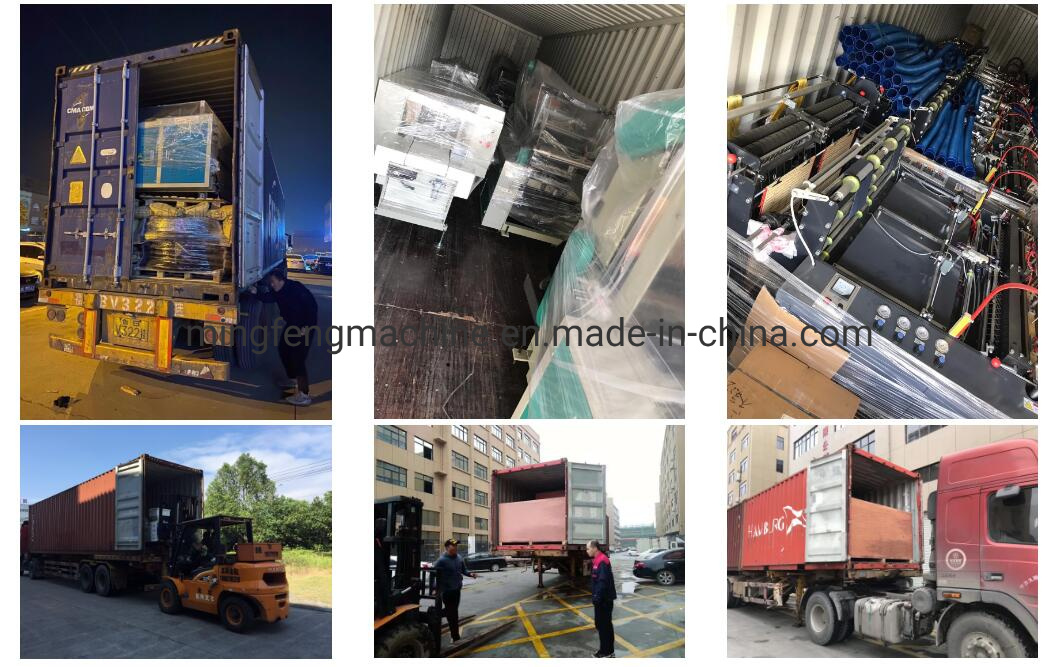

ntent="" style="background-color:#f7cbac;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Packaging & Shipping
ntent="" style="background-color:#f7cbac;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;">Certifications
ntent="" style="background-color:#f7cbac;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
Warmly welcome you to contact us freely !
ntent="" style="background-color:#f7cbac;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40mins,by train is 4hours.
From GUANGZHOU by air is 2hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
