- Model NO.：
- 3WPZ-1200G
- Certification：

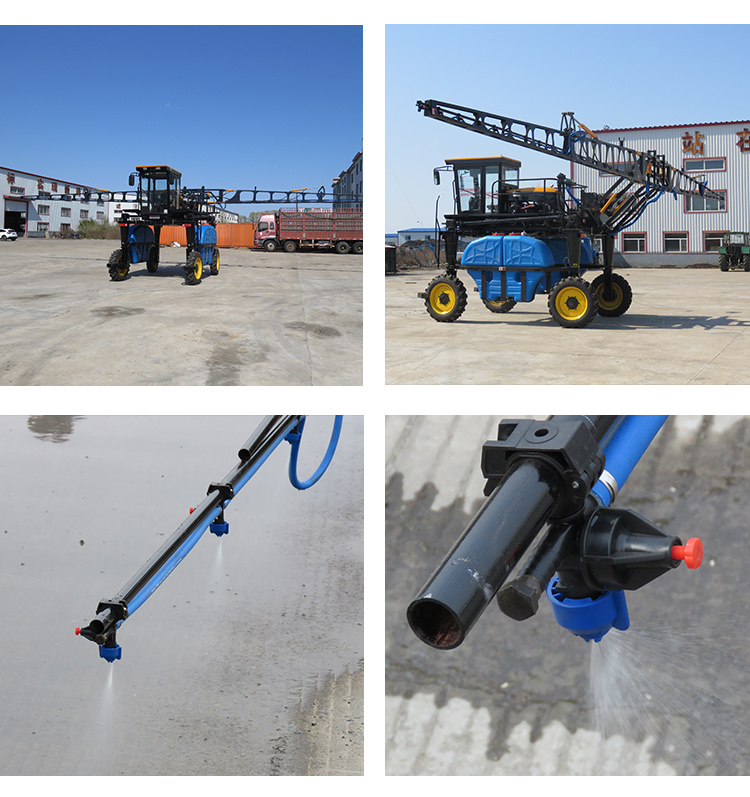

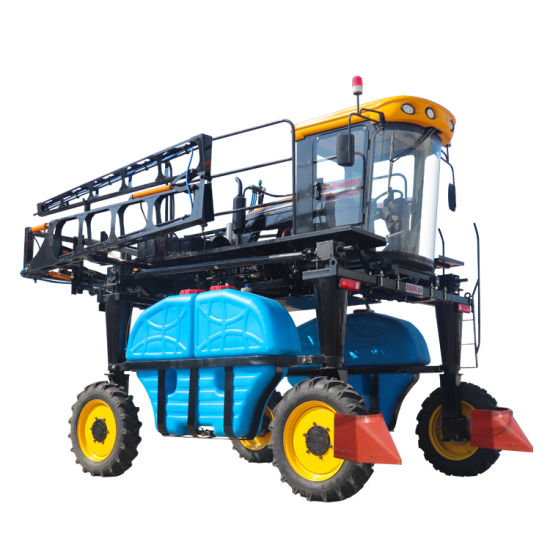

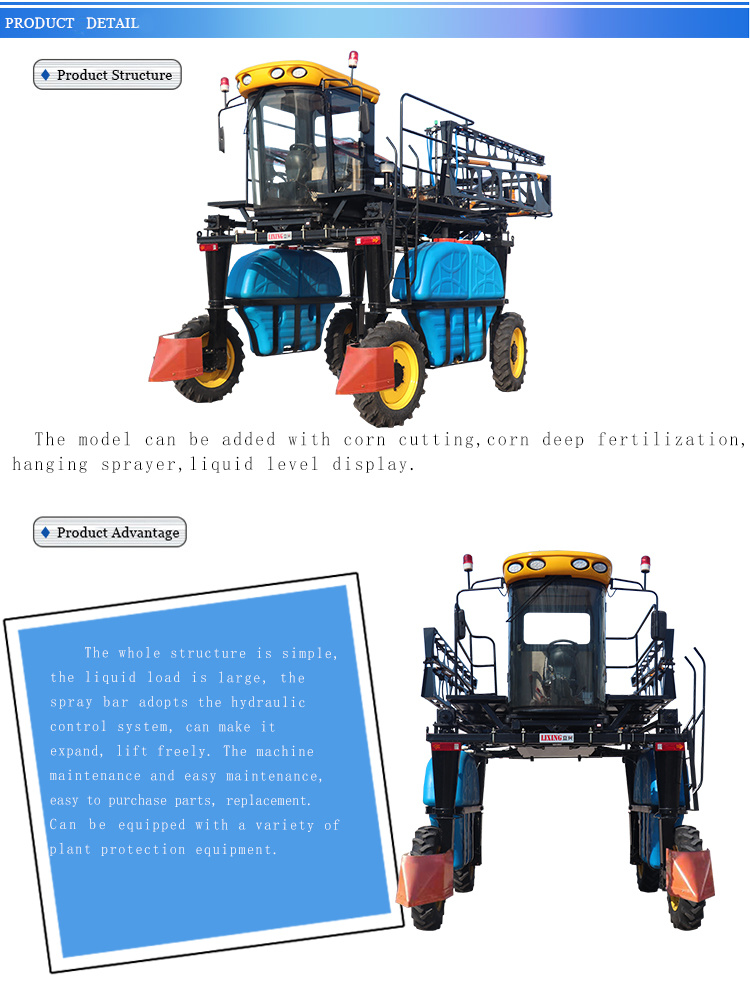

3WPZ-1200G type self propelled spray boom sprayer
3WPZ-1200G series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1200L, the spraying width could be 13.1-16m with 53hp.
Advantages:
•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying with to be 16m max.and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.
| Model | 3WPZ-1200G self-propelled spray boom sprayer | Pump Type | Plunger pump |
| Engine Model | 4L68 (Changchai) turbocharged diesel engine | Pump Model | OS-5200 |
| Power / Speed | 53 hp 2400r / min | Pump Pressure | 0-45kgf/cm² |
| Displacement Level | China III | Pump Flow | 220-240L / Min |
| Gear | Forward gear 4,reverse gear 1 | Pump Speed | 600-800r / min |
| Drive Mode | Four-wheel drive | Tank Capacity | 1500L |
| Steering Mode | Hydraulic steering | Spray Height | 0.5-3.0 m |
| Mixing Method | Circulating water mixing | Nozzle Model | No.3 |
| Folding Method | Hydraulic folding | Spray Angle | 110° |
| Spray Width | 16 m | Nozzle Flow | 1.2L / min |
| Vertical Height | 1.8 m(customizable) | System Work Pressure | 0.3-0.5Mpa |
| Wheel Track | 1.95-2.6 m(adjustable) | 3 Filtration System | Tank inlet, pump inlet, nozzle |
| Operating Efficiency | 21-30 acres / hour | Battery | 12v / 120AH |
| Walking Speed | ≤25Km / h | Front Tire Model | Tractor tires 9.5-24 |
| Overall Dimension | 5800 mm x 2900 mm x 3700 mm | Rear Tire Model | Tractor tires 9.5-24 |
| Weight | 3811Kg | Water Tank | 15L |
Q:Are you a factory or trading company?
A:We are a factory.
Q:How does your factory do regarding quality control?
A:Quality is priority. we always say great importance to quality controlling from the very beginning tothe very end.
Q:Do you have a product accessory?
A:Yes, we have the accessories of the product.
Q:Can you customize the product?
A:We can customize the product.
Q:What'syourpaymentterms?
A:PaymenttermsisT/Tor L/C,Weacceptallreasonablepayment.
Q:Howaboutdeliverytimeofyourmachine?
A:Thedeliverytimeisin60workingdays.Itdependingyourquantity.
