Agricultural Multi-Span advanced hydroponics Film Greenhouse for sale

Model NO.：

EU9600-5060SEV Greenhouse

Certification：

Agricultural Multispan Plastic film greenhouseNFT Hydroponics for leaf vegetable

For film greenhouses, Trinog have 3main series:EU model multi span film green house: European design, modern appearance, foundation needed, can meet advanced growing needsEM model: economical multi span greenhouses, no foundation needed, satisfy basic growing needs)TU :single tunnel greenhousesEU model Multi span plastic film greenhouse
-European structure, multi span commercial film greenhouse for agriculture

I. Feature
Modern appearance, special designing structure, high intensity, easy assembly, single film is suitable for tropic area while air-inflated film is suitable for frigid area.

II. Greenhouse Structural CharacteristicsGothic roof structure, span: 8M/9.6M, section: 4M /5M.Gutter height: 3-5M, top height: 5.5-7.5M.The frame works structure is assembled by prefabricated parts. All main parts are hot dipping galvanized after processing with zinc cover 275G/M2 in order to avoid any rust.Covering is 3layers extruding film, the outer layer has the function of dustproof and the inner layer anti-dripping; UV block treatmentGreenhouse structure strength:

Structure Type	TU,EM,EU structure,
Covering	PE or PO Film
Span Width	8/9.6m or customized
Length	Customized
Height	Customized
Wind Load	0.5 KN/M2
Snow Load	0.4KN/M2
Max Tonnage	150/M3/H;

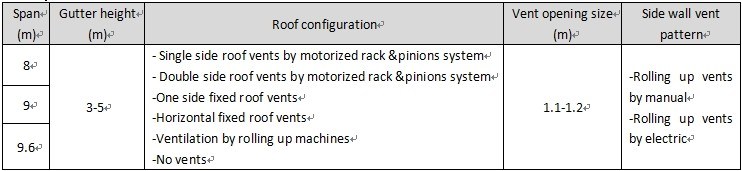

Roof configuration: following options are available based on customers' needs:

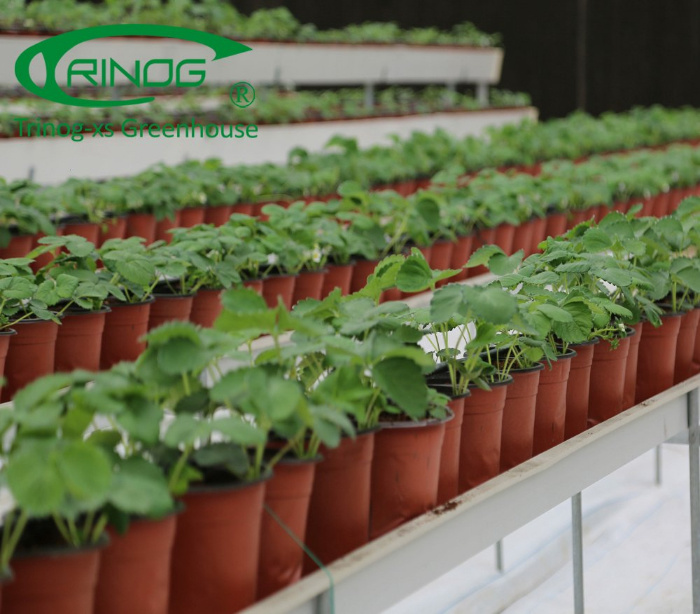

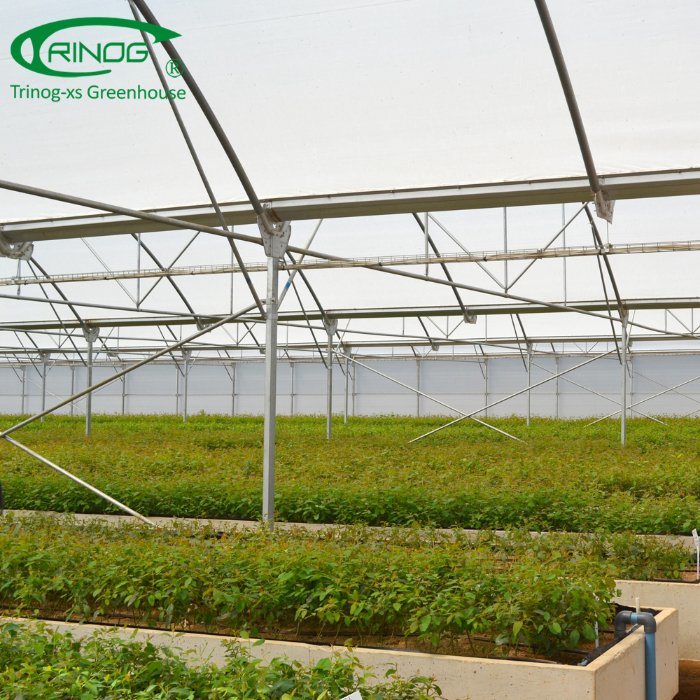

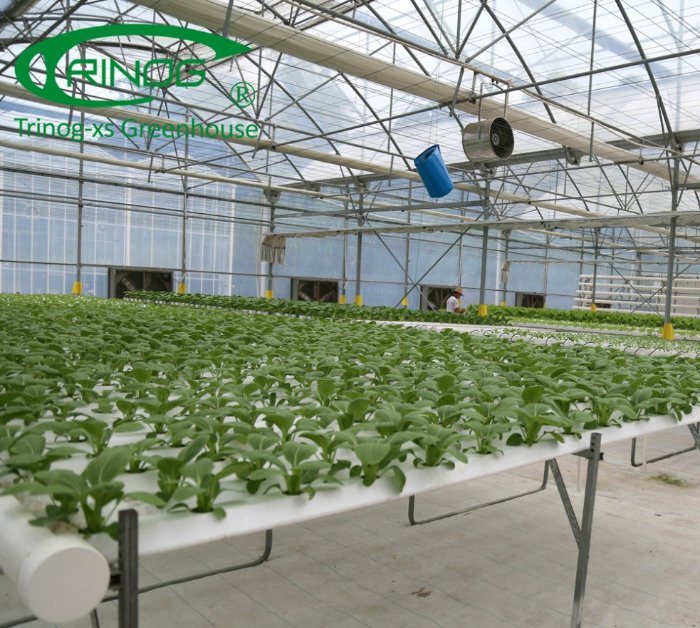

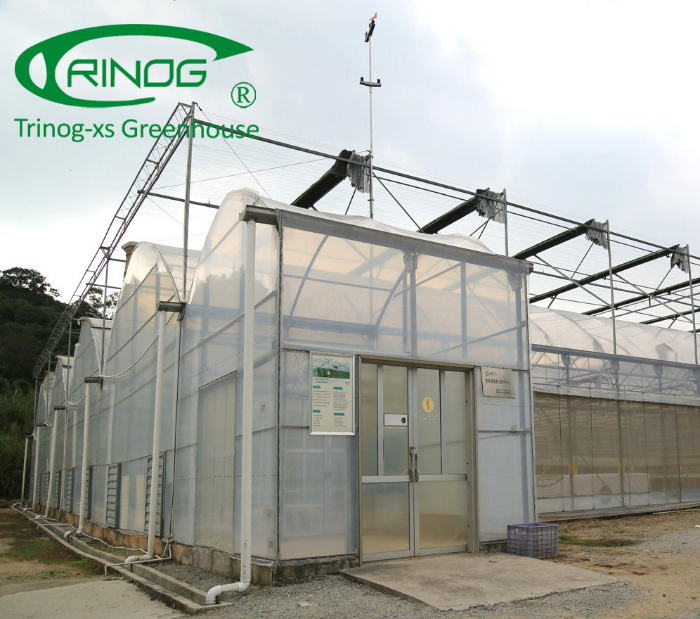

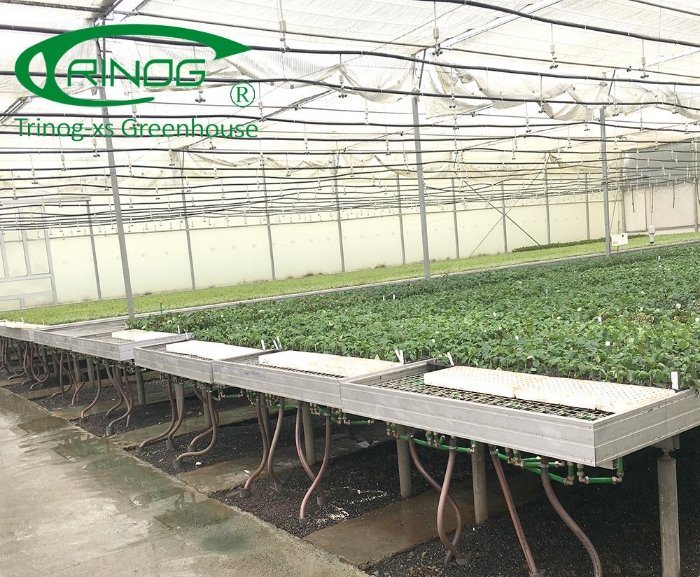

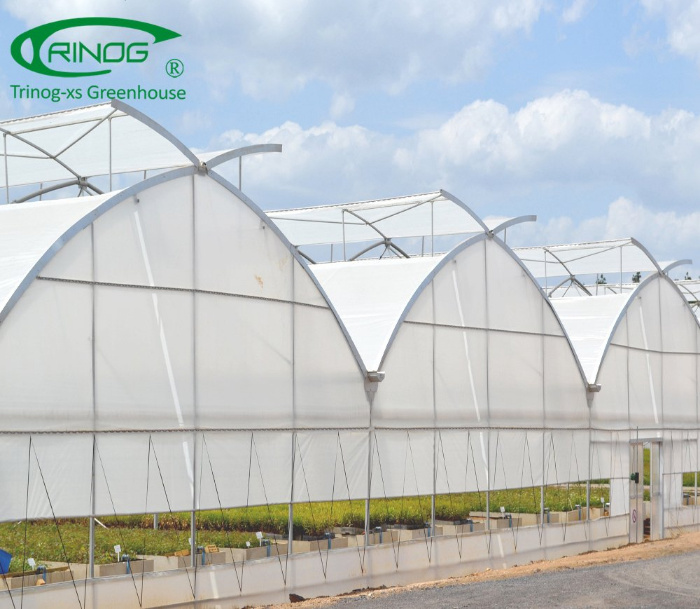

III. Film greenhouse Pictures





IV. Company introduction
Trinog-xs (Xiamen) Greenhouse Techwas founded in 2004. Our company specializes in greenhouse design, development, assembly, and distribution. We collaborate extensively with our sister company, AGDC Agricultural Technology, to undertake the immersive development and production of soil-less cultivation facilities, and provide customized complete hydroponics growing solutions. And we also provide affordable pre-fabricated housing solutions for different needs (residential houses, warehouses, and packaging workshops, etc).

Our technology development center is operated by ahighly proficient team of professionals. These talented individuals are tasked with the design of new products and the optimization of existing models. They can also provide custom solutions based on client requirements.

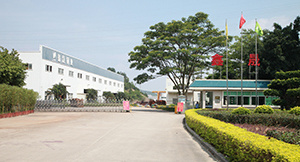

We are presently headquartered Xiamen city,an international container port city. Our 250,000 square meter production base is situated within the Xingtai Industrial Zone of Changtai County, a45minutes drive from Xiamen. Our operating staff includes 200 employees. Their dedication has allowed us to successfully pass the ISO9001 certification.

As an export-oriented enterprise, more than 90% of our greenhouse projects have been placed overseas. Our products have found destinations in more than 60 countries and regions including Australia, Cyprus, Egypt, Japan, Indonesia, Italy, Kenya, Peru, South Africa, Sudan, Thailand, the US, Uzbekistan, etc.

Our finished projects include the 10-hectare hydroponic project for the Kingdom of Bahrain and the one-hectare hydroponic greenhouse for the Abu Dhabi royal quarters within the UAE. Thus far, all of our engineering projects have received the approval of satisfied customers.





V. Contact us

You are welcomed to contact us for your inquiry and for more information.

Company: Trinog-xs (Xiamen) Greenhouse Tech. Co., Ltd
Address: Suite 403-404, Bld. No.25, Wanghai Road, Software park II,
Xiamen, China 361008

Website: trinog.en.made-in-china.com
Contact: Dawn Lee (sale manager)
