- Model NO.：
- XG
- Certification：
- CE, ISO

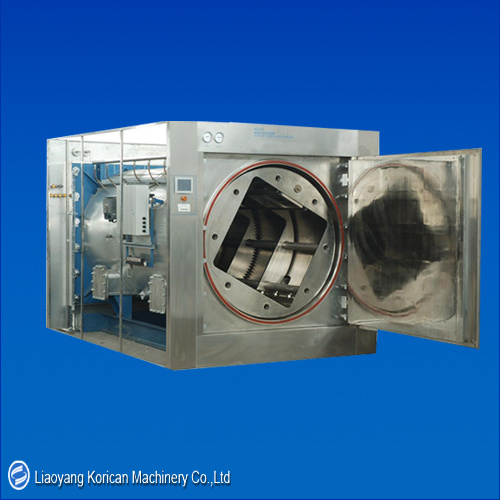

This sterilizer is designed especially to sterilize fluids in sealed containers using a spray water system.This process has the advantage of excellent cycle time vastly reducing conventional cooling periods for fluids loads. In order to obtain a homogenous heat transmission and to avoid coagulation in certain liquid loads such as amino acids,fat emulsions etc,the sterilizer can be provided with a rotating cage assembly which is specially constructed to guide and support the loading carts whilst they are rotated in the chamber.
Our precise design and exquisite processing technology will provide your products with the best sterilizing results.
Size & Utilities
| Model | Overall Size L*W*H(mm) | Steam Consumption(kg/cycle) | Pure Water (kg/cycle) | Tap Water (kg/cycle) | Loading Cart (pcs) | Power (KW) | Net Weight (kg) |
| XG-0.6 | 1825*1905*1850 | 90 | 80 | 1500 | 2 | 6 | 2200 |
| XG-1.2 | 2565*2070*2050 | 170 | 150 | 4500 | 2 | 6 | 3500 |
| XG-2.5 | 3355*2215*2200 | 300 | 250 | 7000 | 4 | 8 | 5800 |
| XG-3.0 | 4155*2215*2200 | 400 | 300 | 8000 | 4 | 10 | 6200 |
| XG-5 | 3480*4000*2820 | 580 | 500 | 15000 | 4 | 12 | 7500 |
| XG-7 | 4330*4000*2820 | 700 | 750 | 18000 | 4 | 15 | 9700 |
| XG-11 | 7130*4000*2820 | 850 | 1000 | 30000 | 6 | 18 | 12000 |
| XG-12 | 5180*5200*3300 | 1000 | 1200 | 35000 | 4 | 18 | 13500 |
Vessels is designed to the China National Standard -GB150"Steel Pressure Vessel"
Control system is integrated by PLC+ HMI, advanced function for recording,printing and storing.
The GMP validation port is provided for insertion of 16 temperature sensors for validation.
Independent temperature monitoring system
Stepless variable-frequency speed control
Main Parameters& Utilities
| Design Pressure | 0.245Mpa | Steam Pressure | 0.4-0.6Mpa |
| Working Pressure | 0.22Mpa | Water Pressure | 0.1-0.3Mpa |
| Design Temperature | 139ºC | Compressed Air Pressure | 0.5-0.7Mpa |
| Working Temperature | 60-134ºC | Pure Water Pressure | 0.1-0.2Mpa |
| Heat Equilibrium | ≤±0.5ºC | Rotation Speed | 1-20rpm |
Loading capacity
| Model | 500ml | 250ml | 100ml | 10ml | 5ml | 2ml |
| XG-0.6 | 220 | 400 | 720 | 8960 | 14840 | 28800 |
| XG-1.2 | 440 | 800 | 1440 | 17900 | 32000 | 76500 |
| XG-2.5 | 896 | 1280 | 2880 | 38400 | 59248 | 133120 |
| XG-3.0 | 1120 | 1920 | 3840 | 49920 | 77280 | 178944 |
| XG-5 | 2000 | 3600 | 6480 | 84500 | 138000 | 305000 |
| XG-7 | 2400 | 4224 | 8320 | 147800 | 232000 | 529000 |
| XG-11 | 4320 | 7392 | 14040 | 186500 | 299000 | 734000 |
| XG-12 | 5700 | 10260 | 18470 | 227000 | 368000 | 892800 |
Note: The loading above is just for reference, the actual loading will be different because of the loading method and bottle sizes.
