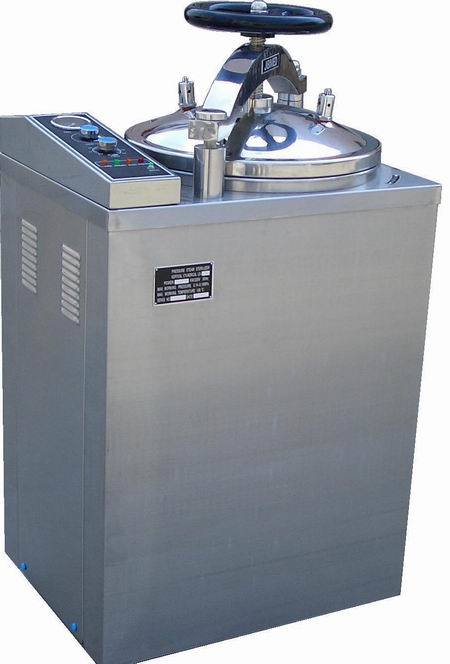

Vertical Pressure Autoclave ( Hand roundautomatic )
Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature&over pressure auto-protection
6.Double scale indication pressure gauge
7.Self-inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate,safe and reliable
11.With two stainless steel sterilizing baskets
Technical data:
Model | MS-V35L-III | MS-V 50L-III | MS-V 75L-III | MS-V 100L-III |
technical data | ||||
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | 0.14MPa | ||
Working temperature | 134ºC | 126ºC | ||
Max working pressure | 0.23MPa | 0.165MPa | ||
Heat average | ≤±1ºC | |||
Timer | 0~60min | |||
Adjustment of temperature | 105~134ºC | 105~126ºC | ||
Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 400×580×1000(mm) | 410×600×1030(mm) | 460×660×1110(mm) | 510×730×1220(mm) |
Transport dimension | 730×500×1170(mm) | 730×500×1290(mm) | 760×550×1290(mm) | 820×600×1380(mm) |
G.W/N.W | 88Kg/ 69Kg | 93Kg/ 73Kg | 105Kg/ 81Kg | 120Kg/ 95Kg |
