- Model NO.：
- MS-H150A
- Certification：
- CE

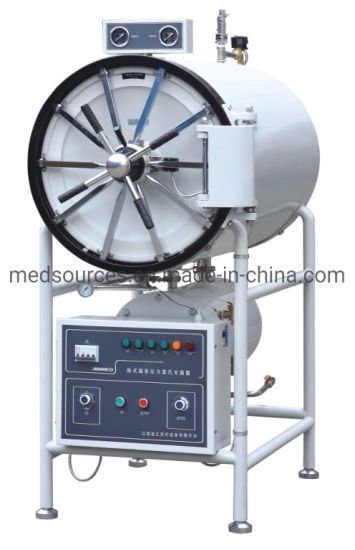

Horizontal cylindrical pressure steam sterilizer
Characteristics:
Sterilizing course automatic sterilization controlled,easy to operate.With drying function,suitable dressing drying.With over-temperature,over-pressure auto-protect device.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
Technical da
ta:
| Technical data | MS-H150A | MS-H200A | MS-H280A | MS-H400A | MS-H500A | |
Sterilizing chamber
volume | 150L
φ440×1000mm | 200L
φ515×1000mm | 280L
φ600×1000mm | 400L
Φ700×1100mm | 500L
Φ700×1300mm | |
| working pressure | 0.22MPa | |
| working temperature | 134ºC | |
| Adjustment of temperature | 105ºC - 134ºC | |
| Time of sterilization | 0-60 min | |
| Time of drying | 0-60 min | |
| Heat average | ≤±2ºC | |
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
| Dimension | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
| G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |
