- Model NO.：
- TR-XB20J/24J
- Certification：
- CE, ISO13485

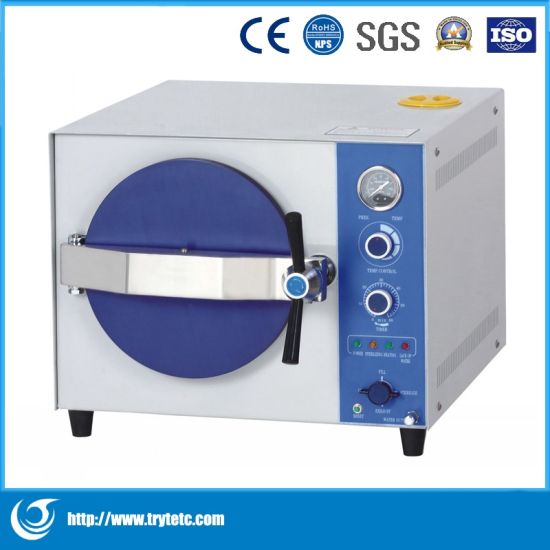

TABLE TOP STEAM STERILIZER
Charcteristucs:
1.Indicator light indicates working state.
2.For 4~6 minutes rapidly sterilizing.
3.Sterilizing temperature and time can be preset.
4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5.Over temperature & over pressure auto-protection.
6.Safe protection of water lacking.
7.Exhaust the cool air automatically.
8.With three stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Technical data:
| MODELTECHNICAL DATA | TR-XB20J | TR-XB24J |
| Sterilizing chamber volume | 20L(φ250×420 mm) | 24L(φ250×520 mm) |
| Maximum working pressure | 0.22Mpa | |
| Maximum working temperature | 134ºC | |
| Adjustmentoftemperature | 105-134ºC | |
| Timer | 0-60 min | |
| Chambertemperatureequal | ≤ ± 1ºC | |
| Source power | 1.5KW/AC 220V 50Hz (AC110V 60HZ) | |
| Sterilizing plate | 340×200×30 mm (3piece) | 400×200×30 mm (3piece) |
| Dimension | 480×480×384 mm | 580×480×384 mm |
| Package dimension | 700×580×500 mm | 800×580×500 mm |
| G. W/N.W | 44/40 kg | 50/45 kg |
