- Model NO.：
- HC01A
- Certification：
- CE
| Technical Specification | ||
| MODEL | HC01A(Venturi atomization) | |

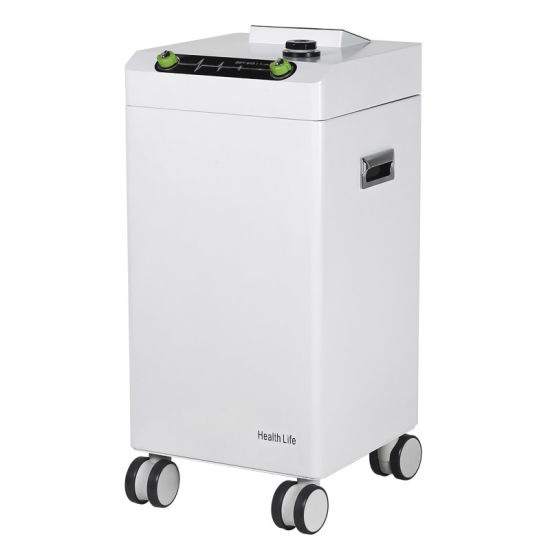

| Product Name | Disinfectant Sprayer with touch screen panel | |
| Net Dimension (L*W*H) | 360*248*598 mm | |
| Net Weight | 15 kg | |
| Packing Size | 435*310*700 mm | |
| Gross Weight | 17 kg | |
| Power | 243W | |
| Use pressure | 260Kpa - 300Kpa | |
| Diameter of area directly covered by atomization | ≥6m | |
| Atomized particles size | 1-6μm | |
| Atomization movement method | Disperse in the air to form Brownian motion, and quickly fill the entire room | |
| Liquid tank capacity | 2 liter | |
| HC01A A. 7.5% Hydrogen Peroxide Solution We recommend the hydrogen peroxide solution at the concentration of 7.5%. Unit dosage of disinfectant: 14-20ml/m³, and it shall be determined according to the actual disinfection requirements: The higher the disinfection requirements are, the greater the unit dosage will be. When the disinfection effect should be 99%, the unit dosage of disinfectant should be 14ml/m³; When the disinfection effect should be 99.9%, the unit dosage of disinfectant should be 16ml/ m³; When the disinfection effect should be 99.99%, the unit dosage of disinfectant should be 18ml/ m³; When the disinfection effect should be 99.999%, the unit dosage of disinfectant should be 20ml/ m³; The total dosage of hydrogen peroxide solution with concentration of 7.5% each time shall be equal to the room volume * unit dosage of disinfectant. For example: For a room of 200 m3, if 99.999% disinfection effect is required and the unit dosage of disinfectant is 10ml/m³, then the disinfectant dosage can be calculated as follows: 200 * 20 = 4000ml; The validity period of hydrogen peroxide disinfectant is 12 months. Do not prepare or change the concentration of hydrogen peroxide solution by yourself in order to ensure the disinfection reliability. Before starting disinfection, it is necessary to confirm that the disinfectant is sufficient for this disinfection. B. Hypochlorous Acid Solution Recommended unit dosage of disinfectant: 20~24ml/m³; please refer to the calculation method of hydrogen peroxide disinfectant above. Note: For disinfectants that tend to form crystals, please rinse the machine with 500ml pure water spray after use. The atomization speed of the sterilizer is 55ml/min, and the time that the sterilizer should execute the spray in the room is calculated according to the dosage. For example: The 4000ml disinfectant should be sprayed for a room of 200m³, then: Required spraying time: 4000/55≈72min (round up to an integer); the sum of the site standing time should be greater than or equal to 72 minutes. ( You can spray 60 min ) will be OK 1 m³ need 18 seconds time ( 1m³ , use 20ml , 20 /55 ≈0.3min = 18 seconds ) | ||
