- Model NO.：
- CLASS N-YF-XD50J
- Certification：
- CE

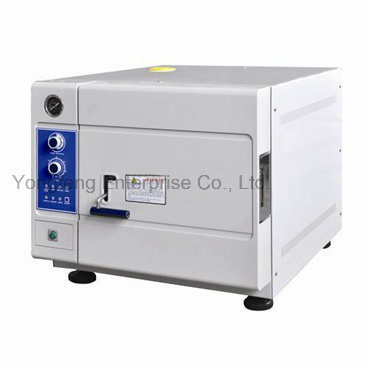

50L Tabletop Fast Autoclave Steam Sterilization For Tattoo
Use
The sterilizer is a table type in safety and autocontrolled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food and other goods.
Characterstics·Indicator light indicates working state.
·For 4~6 minutes rapidly sterilizing.
·Sterilizing temperature and time can be preset.
·Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
·Over temperature & over pressure auto-protection.
·Safe protection of water lacking.
·Exhaust the cool air automatically.
·Door safety lock system.
·With three stainless steel sterilizing plates.
·The chamber of the sterilizer is made of stainless steel.
·Automatically shut off with beep reminding after sterilization.
Technical Data
| Technical Data | CLASS N-YF-XD20J | CLASS N-YF-XD24J | CLASS N-YF-XD35J | CLASS N-YF-XD50J |
| Sterilizing chamber volume | 20L (Ø250×420mm) | 24L (Ø250×520mm) | 35L (Ø300×500mm) | 50L (Ø340×550mm) |
| Working pressure | 0.22Mpa | |||
| Working temperature | 134ºC | |||
| Adjustment of Temperature | 105-134ºC | |||
| Timer | 0-60min | |||
| Heat average | ≤±1ºC | |||
| Power | 1.5KW/AC220V50Hz | 2.7KW/AC220V50Hz | ||
| Sterilizing plate | 340×200×30mm | 400×200×30mm | 400×200×30mm | 500×250×30mm |
| (3pcs) | (3pcs) | (4pcs) | (4pcs) | |
| Dimension | 480×480×384mm | 580×480×384mm | 730×550×510mm | 770×600×540mm |
| Package dimension | 700×580×500mm | 800×580×500mm | 820×680×650mm | 880×730×700mm |
| G. W/N.W. | 43/38kg | 50/44kg | 90/73 kg | 105/86 kg |
