- Model NO.：
- M-AB23P
- Certification：
- CE, ISO13485
wet heat steam sterilizer M-AB23P
Desktop steam autoclave ,designed for small volume instruments and fabrics sterilization, especially for dental and Eye clinics .
Features:
Modes : Pre-set cycles for solid instrument , rubber ,packed device ,user definition.
3.5" LCD display: modes,temperature ,pressure and other sterilization status .
Door safe system : mechanical and electromagnetic double lock device .
Pre&post Vacuum : discharging the cold air from camber ,drying the sterilized articles.
Post sterilization cool unit:internal steam condensate collector,and heat ex-changer cool down the post waste gas and water. Make the drainage in low temperature.
Internal high efficiency steam generator,with water level monitor sensor.
Steam generator water inlet equipped with a water quality monitoring sensor,to keep the sterilization steam clean ,avoiding the second time contamination and extending the machine service time .
big volume top water tank ,can support several sterilization cycles .
Mini printer ,record the pressure ,temperature ,time ,alarms during process .
USB port , download past sterilization records to a U-disk or computer for checking.
Alarm : over-temperature ,water lack , over pressure , progress ending ,other faults .
Parameters:
| Equipment name | desktop vacuum steam autoclave |
| Inner chamber size | Ø24x47 |
| Machine size | 70x45x40 cm |
| Weight | 50Kg |
| Power supply | AC 220V /50Hz / AC 110V/60 Hz 1.7KW |
| Material | 304 stainless steel chamber |
TECHNICAL CHARACTERISTICS | Working pressure : -80 kpa - 230kpa |
| Pressure accuracy 0.1Kpa | |
| Working temperature : 121-134 ºC | |
| Temperature measure precision not greater than 0.1ºC | |
| Microprocessor control | |
| Overheat shutoff and over pressure safety valve | |
| Vacuum valve for air discharge | |
| Pressure lock to be incorporated to prevent door opening at pressure | |
| Internal steam electrical generator | |
| Available cycles for a variety of items and tests, alarms, safety systems, adjustable temperature working range, user-reset time elapsed indicator, filtered air intake system, vacuum pump and vacuum sustainability diagnostic system, double protection for over pressure. | |
| Bowie-Dick test kit and standard cycles controls/tests | |
PHYSICAL CHARACTERISTICS | 1.meshed internal trays removable and replaceable 2.chamber door including sealing gasket, handle, sealing ring and sealing groove 3.easy to read display indicating chamber pressure, temperature, steam generator pressure, door status and alarms. |
ACCESSORIES | 1.shelving holder 2.basket , shelving 3.water inlet and drainage soft tube 4.door spanner |
| QUALITY MANAGEMENT | CE ISO13485 . ISO9001. CFDA Certificate . One year quality warranty |
Machine material application
Material explain :
metal : unpacked metal instruments
Packed : tools in packing bags or packed by non-women fabric .
Fabric : dressings
Rubber : plastic and rubber which sterilization temperature at 121 ºC or below .
BD test : Bowei-dick test .
Vacuum test : vacuum pump diagnose .
Parameter setting
User can check the parameter set by manufacture at each material select ,commonly don't need to change them , if you have special parameter request , you can set your unique parameters .

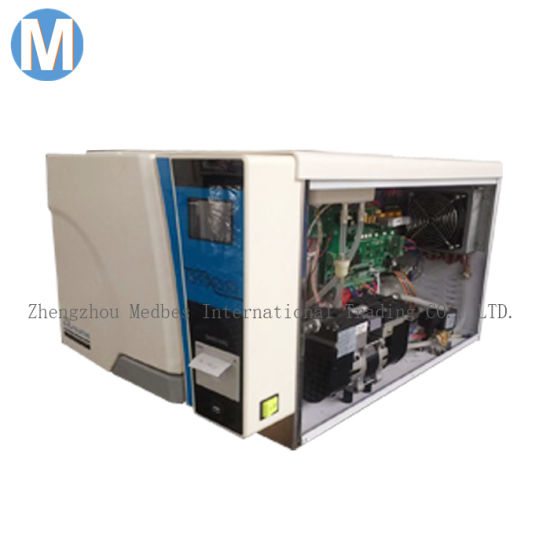

Machine parts we are better than competitors
1.Two Cool unit
One for sterilization exhaust steam cooling before drainage The other for vacuum drying articles exhaust gas and water cooling before drainage .
This device ensure the drainage water and gas not so hot , avoiding the high temperature burns to operator and environment.
2.The gas-mist separator
1.air-mist separator 2. vacuum pump
During vacuum dry process ,the air and steam mixture go though the air-mist separator , water fall in the separator and the air without mist is sucked into vacuum pump though pipes .
only dry air though vacuum pump ,this measure protects the pump and extend it's service time.
2.water quality detector
We add a water quality detect probe in water tank ,when i water quality is bad ,there will be a " bad water quality " fault on display screen . remind user to use clean water like pure water or distilled water .
Packing and transport
Machine weight :50 KG Wood case size : 52x58x82 cm
Gross weight:61 KG HS code : 84192000
