The1year
- Model NO.：
- ACE-SJG-A80
- Certification：
- CE, CE, ISO
Description:

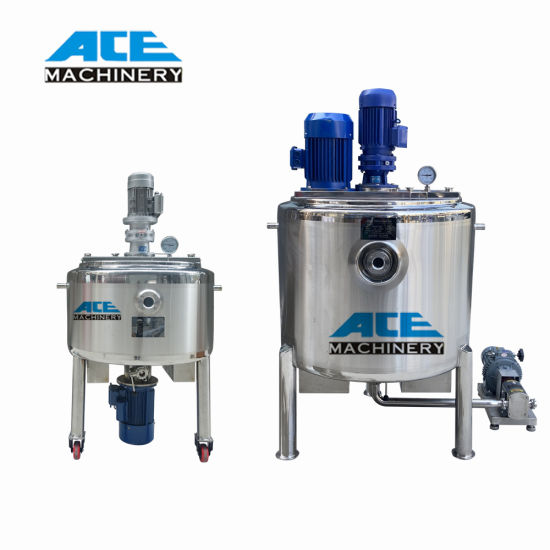

1.Pasteurizing tank consists of pot body, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by stainless steel 304.2.The milk pasteurization machine is mainly used for making milk products in dairy making factory, and also used for medicine, beverage, scientific research and industry departments.
3.The style and working capacity can be customized, with wide experienced technical service engineer team. 4.The pasteurization temperature can be designed based on client requirements.
Fresh milk pasteurization machine is divided into 100L,150L 200L, 300L, 400L, 500L, 600L, 800L, 1000L, 2000L, 3000L and so on.according to the output.
In addition, we also have large fresh Small Batch Pasteurizers, fermenters, and refrigeration tanks.
Main Features:
1.It is used for liquid materials,such as,milk,yoghurt,honey,water,juice,sauce.
2.The pasteurization temperature and time can be setted.
3.Add stirring device to ensure uniform temperature of each part and no materials crust in pasteurization.
4.Power saving,heating fast,energy saving, rapid heating,no materials paste.
5.Stainless steel, beautiful, sanitary,long life.
| NOTE: The style and capacity of our pasteurizer are all customizable. If you have any problems about our products, please feel free to contact us! |
Plate sterilizer
Description:
Plate sterilizer is widely used in food industry, especially for sterilization or ultra-high temperature sterilization of heat
sensitive materials such as milk, soybean milk, juice, rice wine, beer and other liquids. It is composed of plate heat exchanger,
centrifugal sanitary pump, material balance cylinder and hot water device.
Features:
1. Material: stainless steel SUS304 316L
2. Capacity: 0.5-10T/H
3. Heating Type: steam heating/electric heating
4. Control: automatic
5. The materials and heating medium are heated by non-contact heat exchange in their own systems to ensure the hygiene and safety of materials.
6. Short sterilization time ensure the nutrient content of the material is not damaged. Good heat transfer effect, high heat recovery and less energy consumption.
7. Main control elements, valves and accessories are famous brands.
8. PLC control, heating temperature and steam flow regulation of each section of the material can be controlled automatically.
9. Simple structure, easy to clean and operate.
Tubular UHT Sterilizer
Description:
The equipment adopts multiple-tube type, the multiple tube consist of many parallel small tubes, then connect many section multiple tubes. Each segment called a lift, the inner tube of every lift connected by U type tube, the outer tube connected by branch pipe. Material flow in the inner tube, the heating medium reverse flow in the outside tube, through the inner wall to heat transfer. The qty and dimeter in each shell and tube can change, to meet the quality of the material and requirement of heat.
The tube(pipe) in tube pasteurizer can take hot process on the liquid foods and beverage. Compared to the sterilizer of other model, it has the following characteristics:
1.High heat effect,90% of the heat can be recycled after heating the material
2.Temperature ap between the medium and the material is small, so to realize gentally heating, the heating pipe adopts wave pipe, the material and the medium are both in flow.
3.It is of high automatic degree, can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the material.
4.It is of precise and reliable sterilizing temperature control, automatically control the affecting sterilizing temperature system such as steam pressure, flow and material flow.
5.The inside of the material pipe adopts advanced polish technology, pipe joints automatically, pipe design realize complete automatically clean, and the whole process sterilizes, so to ensure the system aseptic.
6.It is of strong system safety, the fittings all adopts reliable product with good capacity, the design values the human, safe equipment, and the steam, hot water and the material all adopts pressure protection methods and alarm system.
7.It is of high reliability system, the main fitting such as material pump, hot water pump, valves, electric elements of controlling system, and the executive elements are all world famous. Tube pasteurizer and yoghurt sterilizer can be designed according to customer requirement. The tube UHT sterilizer of our company is to filling the aseptic package. It fits to various aseptic package, such as: aseptic paper package, aseptic paper, plastic, composite film package, aseptic PE bottle package, especially fit to the production of all kinds
