- Model NO.:
- UVM
- Certification:

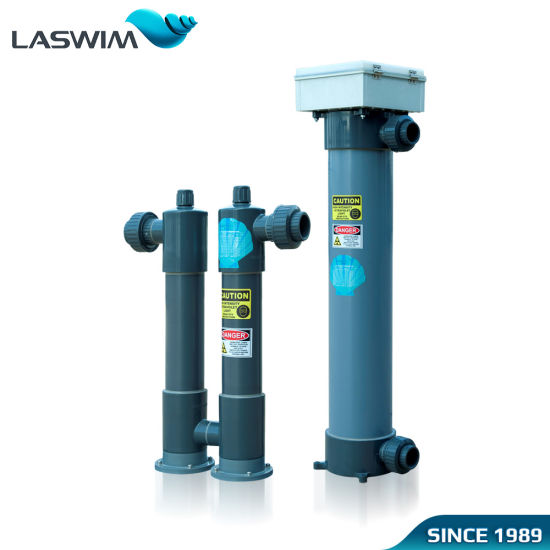

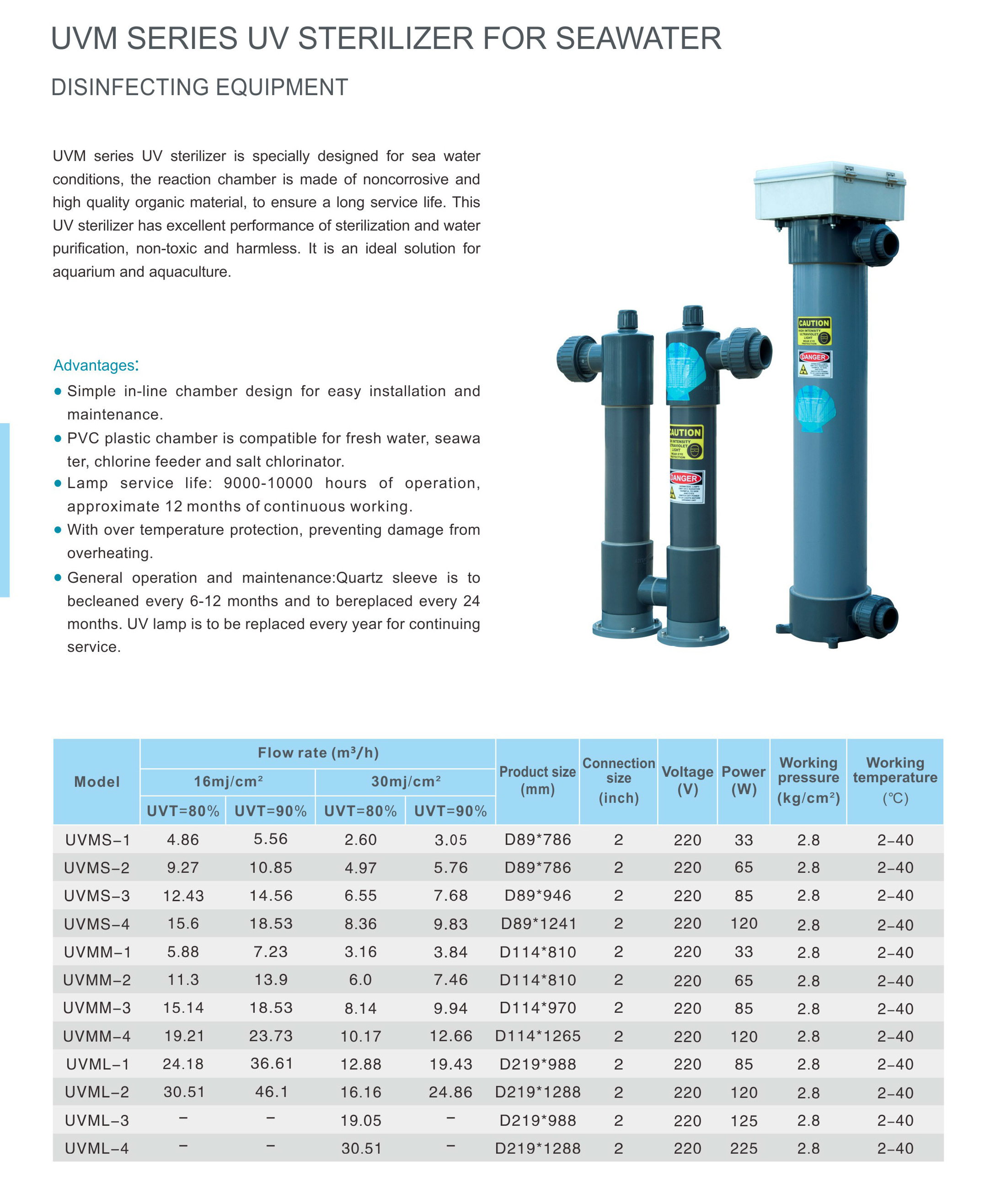

UVM SERIES UV STERILIZER FOR SEAWATER
DISINFECTING EQUIPMENT
UVM series UV sterilizer is specially designed for sea water conditions, the reaction chamber is made of noncorrosive and high quality organic material, to ensure a long service life. This UV sterilizer has excellent performance of sterilization and water purification, non-toxic and harmless. It is an ideal solution for aquarium and aquaculture.
Advantages:
1.Simple in-line chamber design for easy installation and maintenance.
2.PVC plastic chamber is compatible for fresh water, seawater, chlorine feeder and salt chlorinator.
3.Lamp service life: 9000-10000 hours of operation, approximate 12 months of continuous working.
4.With over temperature protection, preventing damage from overheating.
5.General operation and maintenance: Quartz sleeve is to be cleaned every 6-12 months and to be replaced every 24 months. UV lamp is to be replaced every year for continuing service.
Product Parameters
Mode | Flow rate(m³/h) | Product size(mm) | Connection size(inch) | Voltage(V) | Power(W) | Working pressure (kg/c | Working temperature(ºC) | |||
16mj/cm2 | 30mj/cm2 | |||||||||
UVT=80% | UVT=90% | UVT=80% | UVT=90% | |||||||
UVMS-1 | 4.86 | 5.56 | 2.6 | 3.05 | D89*786 | 2 | 220 | 33 | 2.8 | 2-40 |
UVMS-2 | 9.27 | 10.85 | 4.97 | 5.76 | D89*786 | 2 | 220 | 65 | 2.8 | 2-40 |
UVMS-3 | 12.43 | 14.56 | 6.55 | 7.68 | D89*946 | 2 | 220 | 85 | 2.8 | 2-40 |
UVMS-4 | 15.6 | 18.53 | 8.36 | 9.83 | D89*1241 | 2 | 220 | 120 | 2.8 | 2-40 |
UVMM-1 | 5.88 | 7.23 | 3.16 | 3.84 | D114*810 | 2 | 220 | 33 | 2.8 | 2-40 |
UVMM-2 | 11.3 | 13.9 | 6 | 7.46 | D114*810 | 2 | 220 | 65 | 2.8 | 2-40 |
UVMM-3 | 15.14 | 18.53 | 8.14 | 9.94 | D114*970 | 2 | 220 | 85 | 2.8 | 2-40 |
UVMM-4 | 19.21 | 23.73 | 10.17 | 12.66 | D114*1265 | 2 | 220 | 120 | 2.8 | 2-40 |
UVML-1 | 24.18 | 36.61 | 12.88 | 19.43 | D219*988 | 2 | 220 | 85 | 2.8 | 2-40 |
UVML-2 | 30.51 | 46.1 | 16.16 | 24.86 | D219*1288 | 2 | 220 | 120 | 2.8 | 2-40 |
UVML-3 | / | / | 19.05 | / | D219*988 | 2 | 220 | 125 | 2.8 | 2-40 |
UVML-4 | / | / | 30.51 | / | D219*1288 | 2 | 220 | 225 | 2.8 | 2-40 |
