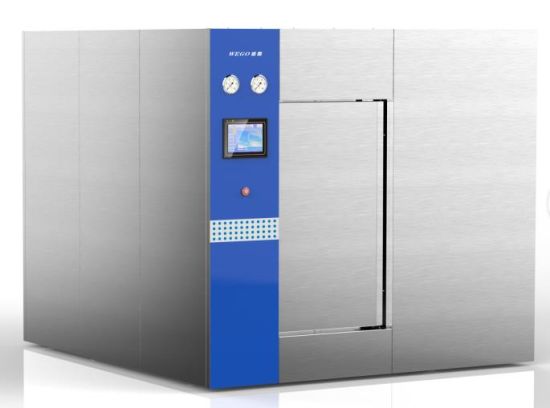

- Model NO.：
- STY-WG02
- Certification：
- CE, ISO13485
Application:
It is suitable for items which are high temperature-resistingand high pressure-resistingincluding packaged, unpackaged, solid, A hollow, B hollow and device with built-in pipe in the fields of supply room, pharmaceutical factory, lab, etc to be sterilized.
Technology advantage:
Major controller adopts high cost performanceprogrammablecontroller imported from OMRON, which has a powerful function, stability and reliability.
Man-machine interface adopts 7 inch touch screen with 6 ten thousand 5 thousand color TEF true-color, which has a powerful function with rich colors, shows animationand curve report, etc.
Besides elegant appearance, man-machine interface software design is more considered on the convenient of user operation, which fully adopts menu program design, one-key touch screen operation and all kinds of operation intensive design. It is a full-color real-time dynamic displayfor each running process.
Controller software design realizes real-timely feedback module of its own based on fuzzy controltheoreticalto ensure accurate processing control, which guarantees the bond,fluctuation and uniformity of temperature thoroughly.
Special warning function of maintenanceis designed to remind user of maintenance, which includes cleaning sealing ring, wiping main body and checking filter regularly.The safe, simple, and reliableelectricity-lifted sealing door has a pneumatic sealing structure.
The imported high quality pneumatic valveand solenoid valveensure stable performance and a long lifespan.
Perfect fault information warning and fault self-diagnosis function.
Optional protection system of three-level user privilege is convenient for user to manage equipment.
Remote monitoringcan be achieved by optional ethernet module
Optional barcode scanner to connect the medical HIS system can be convenient to realize.
Optional USB storage system real-timely can store the operating situation into USB storage device.
Remote operation can be achieved by optional central monitoring system.
Safety feature:
Mechanicalpressure relief safety valvefor chamber and jacket
Over-pressure protective device of chamber
Over-temperatureprotective device of chamber
Fault self-checking device of temperature sensor
Fault self-checking device of pressure sensor
Overload protective device of door motor
Overload protective device of vacuum pump
Protective measure device of door safety
Interlock function device of double door
Phase sequencedetection function device of power network
Losing electricityprotection function device of door seal
Undervoltagedetection device of compressor
Main parameters:
Design pressure: 0.35MPa
Max.working pressure: 0.23MPa
Max.working temperature: 138ºC
Working temperature range: 105ºC~138ºC
Vapour pressure: 0.3MPa~0.5MPa
Water source requirement: soft water with 0.15~0.3Mpa pressure
Pulsationtimes range: 0~99 times
Sterilization time range: 0~9999 seconds
Drying time range: 0~9999 seconds
Control power:AC220V/50HZ/0.5KW
Compressed airsource: 0.50MPa~0.70MPa filter of oil,water, dust removal
