The1year
- Model NO.：
- BKS-Y-800
- Certification：
- CE
Production Introductions:

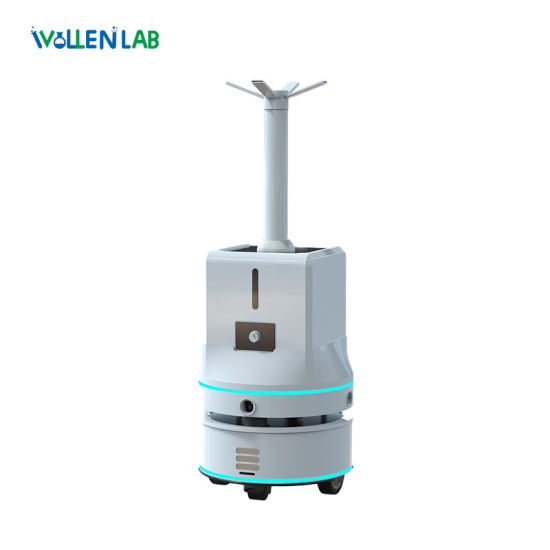

The atomization disinfection robot achieves effective air purification by quickly atomizing the disinfectant and automatically spraying the disinfection area.
The robot can navigate autonomously, autonomously avoid obstacles and reach the disinfection area for full coverage disinfection. At the same time, it supports mobile phone App operation to achieve human-machine separation, reduce personnel contact, and greatly improve the safety of use. And the deployment is simple, easy to maintain and manage.
It can be widely used in hospitals, airports, office buildings, shopping malls, schools, factories and other public places.
Product Advantages:
1. 16L large water tank, 6H long battery life.
2. >99.99% sterilization rate, 360° precise sterilization.
3. APP is simple and easy to use, compatible with multiple scenarios.
4. Full coverage automatic navigation, unattended automatic charging.
Technical Parameters:
| Model | BKS-Y-800 | |
| External Size | φ500x1335mm | |
| Atomization Efficiency | 2L~3L/H(adjustable) | |
| Disinfectant Capacity | 16L | |
| Spray Diameter | 5-6m | |
| Disinfection Medium | Hypochlorous acid,Chlorine dioxide,Hydrogenperoxide,Peroxyacetic acid, etc. | |
| Spray Method | Four-direction spray, large opening spray(optional) | |
| Moving Way | Autonomous path planning and automatic navigation | |
| Moving Speed | 0~0.6m/s | |
| Power Supply | AC220±10%V 50Hz | |
| Consumption | 150W | |
| Drive Method | Differential drive | |
| Ability to Cross Obstacles | ±10mm | |
| Gradeability | ≤8° | |
| Driving Channel Width | ≥700mm | |
| Noise | ≤50dB | |
| Operating Time | 5~6h | |
| Battery | Lithium battery 28AH 24V | |
| Charging Mode | Automatic charging | |
| Charging Time | 3~4h | |
| Safety System | Lidar obstacle avoidance, power-off protection of disinfectant shortage | |
| Package Size | Main Body | 430*430*660mm |
| Chassis | 650*650*770mm | |
| Gross Weight | Main Body | 10kg |
| Chassis | 62kg | |
