- Model NO.：

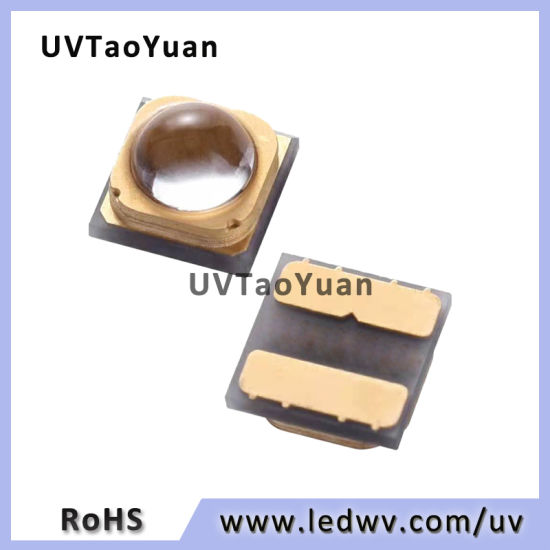

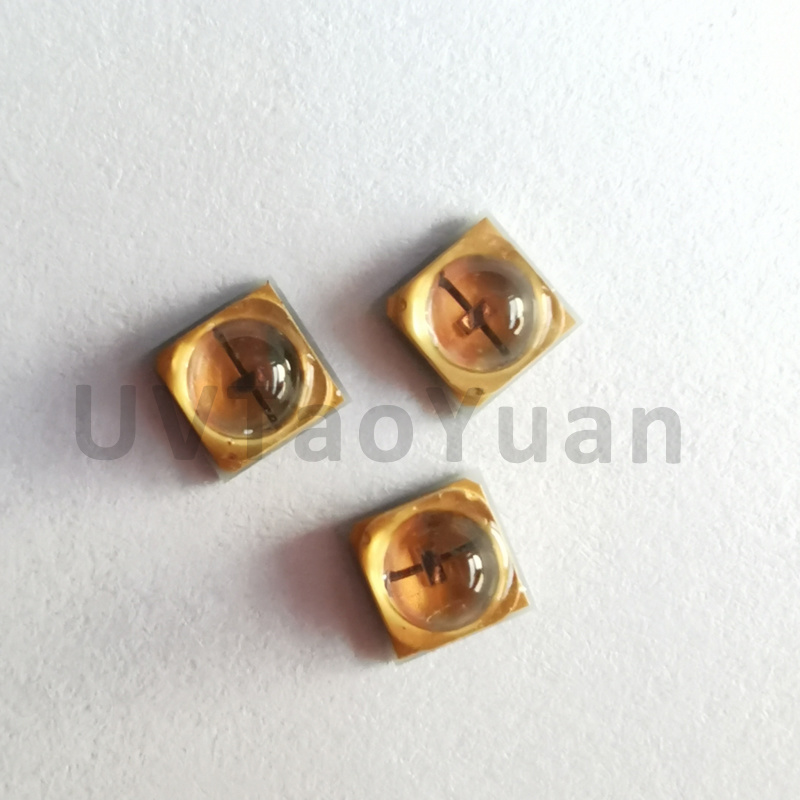

- TY-SMD-275nm-3939
- Certification：
- RoHS

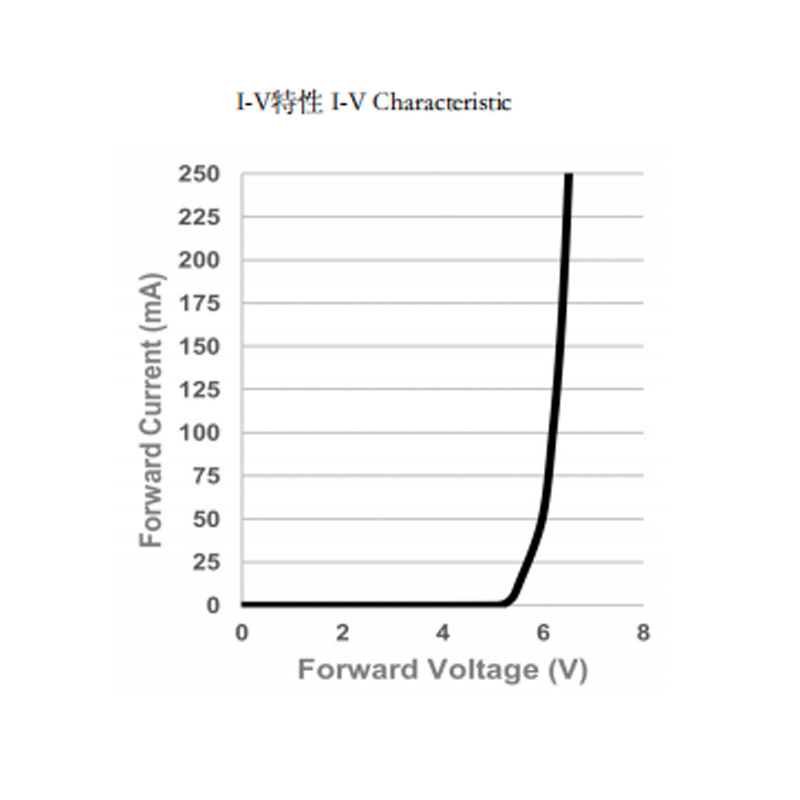

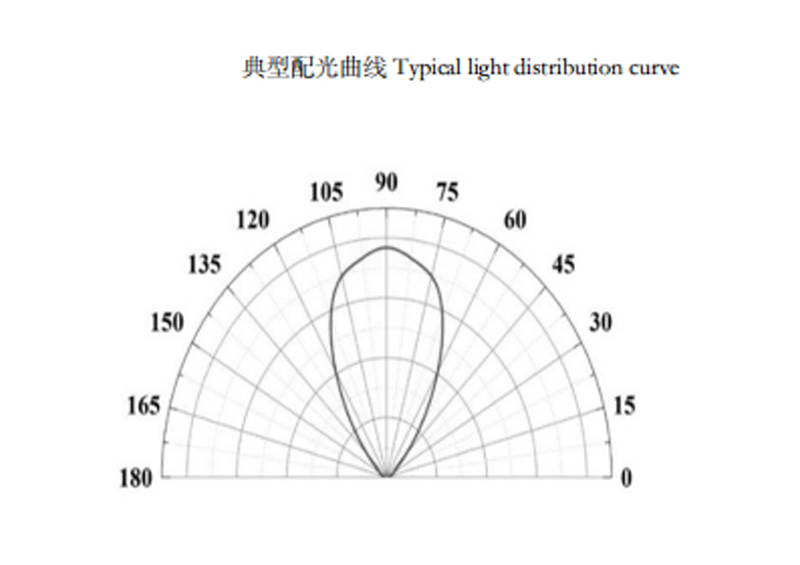

| Model | Size | Optical power(MW) | Wavelength | Forward voltage | Beam Angle | ||
| IF=100mA | VF[V] | ||||||
| Minimum | Maximum | Minimum | Maximum | ||||
| TY-275S39CL-100 | 3.9*3.9mm | 17 | 20 | 275 | 5 | 6 | 60 |
Mechanical Dimensions

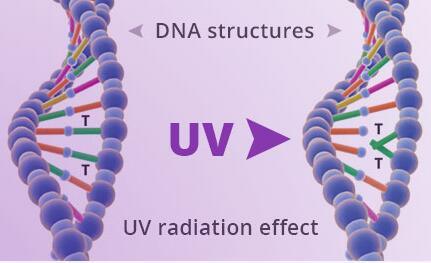

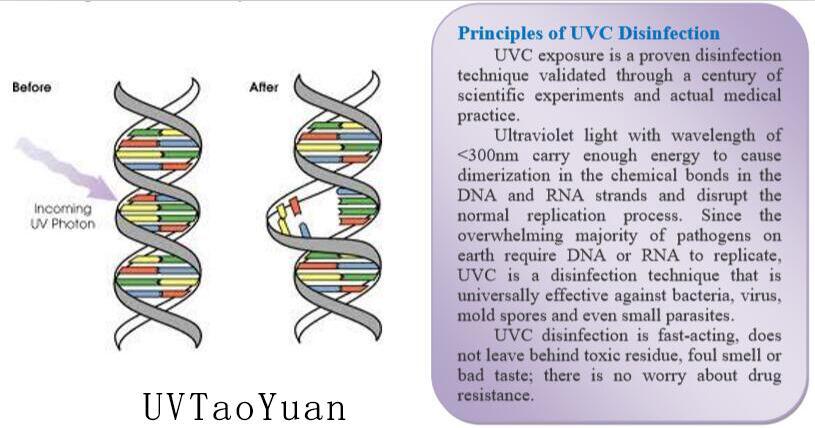

a. Efficient: sterilization effect can be up to 99.9% in short time.
b. Energy saving: Compared with the traditional lamps, the energy-saving is up to 80%
c. Environmental protection: non-metal gas or harmful substances emitting technologies.
d. Instant start
e.Life of more than 10,000 hours.
Note:
a. Do not touch the LED, or will affect the normal light-emitting devices.
b. Power devices must confirm the positive and negative, reversing polarity may damage the device.
c. Strictly operate in accordance with electrical parameters, too high voltage may damage the device.
d. UVC-LED status should be avoided close observation with the naked eye.
