Beer brewery
♦♦♦♦♦Beer distribution tanks are also called serving tanks, tax determination tanks or clear beer tanks (=CBTs), bright beer tanks (=BBTs) or maturation/storage or conditioning tanks. These tanks are used for the storage of the beer prior to being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be located in a walk-in cooler. For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location. ♦♦♦♦The brew house system could be included two-vessels brew house, three-vessels brew house and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank. The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency.
Conical fermentation tank with cooling jacket structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone section,columnar part has three cooling jackets.
| Capacity/batch | 100L | 200L | 300L | 500L | 1000L |
| Model | TS-100L | TS-200L | TS-300L | TS-500L | TS-1000L |
| Area | 15M2 | 25M2 | 35M2 | 45M2 | 80M2 |
| Power | 8kw | 12kw | 20kw | 35kw | 35/15kw |
| Frementation cycle | 8~20days | 8~20days | 8~20days | 8~20days | 8~20days |
PRODUCT FEATURES:
1)Desiging tanks and heating system according to craft, mash tank warming≥10ºC/min
2)Energy saving stir structure : large cross-section impeller, 15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4)Plow knife of filter tank separated to one foot, feet and bow plow knife
5)Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6)Material includes stainless steel 304, 316 and red copper
Fermeners
Material: stainless steel 304, brushed outer shell
*Dimple plate cooling jacket on tank body and conical bottom
*Insulation: polyurethane, thickness: 80mm
*Interior thickness: 3mm
*Exterior thickness: 2mm
*Temperature sensor TP100
*Sidemanhole
*Taper angle 60°
*Inner tank mechanical polishing and out plate surface protection ribbon polished on welds
*1pcs x breathing valve*1pcs x mechanical pressure regulationvalve
*1pcs x sample valve *1pcs x racking arm
*1pcs x pressure gauge *1pcs x CIP spray device
*1pcs x drain outlet bottom *1pcs x solenoid valve
*4 heavy duty legs with leveling pad *Test pressure: 3bar
Product Description
Process Type
- Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge. - Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.
Features
- Unique three-dimensional surface runner: - High heat transfer coefficient - It is not easy to scale. - Not easily blocked - Compact structure - High temperature and high pressure resistance - Fully welded structure - Floating Head Design - Easy to clean - Lower flow resistance
Cleaning system

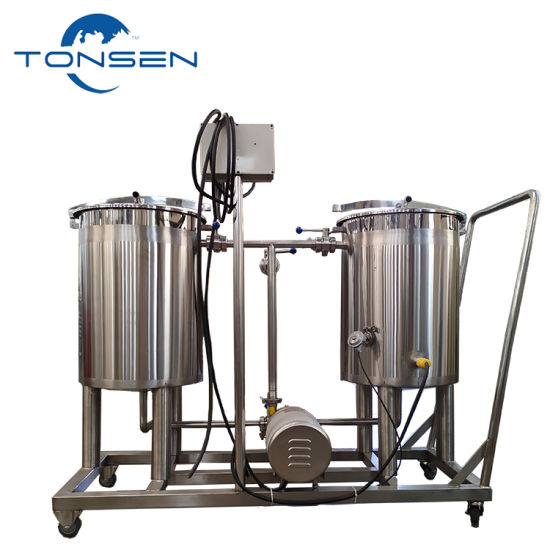

Cleaning system include lye tank ,Hydrogen peroxide tank and as line valves , if tha tank volume is smail , the tank can be fixed on trollery,so it`s easy to clean brewing system . alkalinecleaning can removed the fat and protein by saponificatgion , to improve product safety .after the CIP treatment ,clean bright surface ,no water , no savor , no dirt .
Application
1.Wide-channel plate-shell heat exchanger:
Combining the advantages of shell-and-tube heat exchanger and plate heat exchanger, it is easy for scaling materials to move
between boards and clean materials to move inside boards.
Usually floating head structure design is adopted. When cleaning, the whole group of plate bundles can be pulled out.
2.Wide-channel plate-shell heat exchanger:
Specially designed for working conditions with larger particles or higher viscosity, the medium can fully flow in the runner
without blockage under the above working conditions. Generally, the solid medium goes between the plates without contacts, and the
clean medium goes through the plate cavity with contacts:
Flow resistance is small and scaling is not easy.
High heat transfer coefficient.
Easy to clean.
3.Surface Condenser:
Condensation of steam
Condenser of evaporation station
Condenser/Air Cooling Island of Power Station
Condensation of Organic Steam
Condenser for Distillation/Distillation System
Condenser/Evaporative Condenser for Refrigeration System
4.Plate heat recovery unit:
It is a special case of plate and shell heat exchanger, which is used to recover various waste steam and waste heat.
5.Dimple Jacket:
It has high bearing capacity and can reach up to 5 MPa by special design.
Fermentation tank
Jacket Reactor
Other Heat Exchange Jacket Tanks
6.Chill System:
Used as evaporator in refrigeration system
Falling film ice water machine
Large Slip Ice Maker
7.Dehumidifier:
The dehumidifier is mainly composed of cooler, separator, etc.
8.Customized:
We can design and fabricate heat transfer elements of various materials and arbitrary shapes to meet your special requirements
Packing &shipping
1)All tanks will be packed with soft protection material and mounted on steel frame
2)All accessories and spare parts will be packed with soft protect
Company information
Successful project show
Our products sell all over the China and export to US ,Europ ,Canada ,Russia ,Norway ,Czech, Australia ,Germany , Poland , Brizal , India etc, more than 70countries and areas, and we have abtained many approvals and praise from them.
