The1year
- Model NO.：
- IN-T35 50 75 100HD
- Certification：
- CE, MSDS, ISO13485
Features:
1.Fully stainless steel structure |
2.Hand wheel type of quick-open door structure |

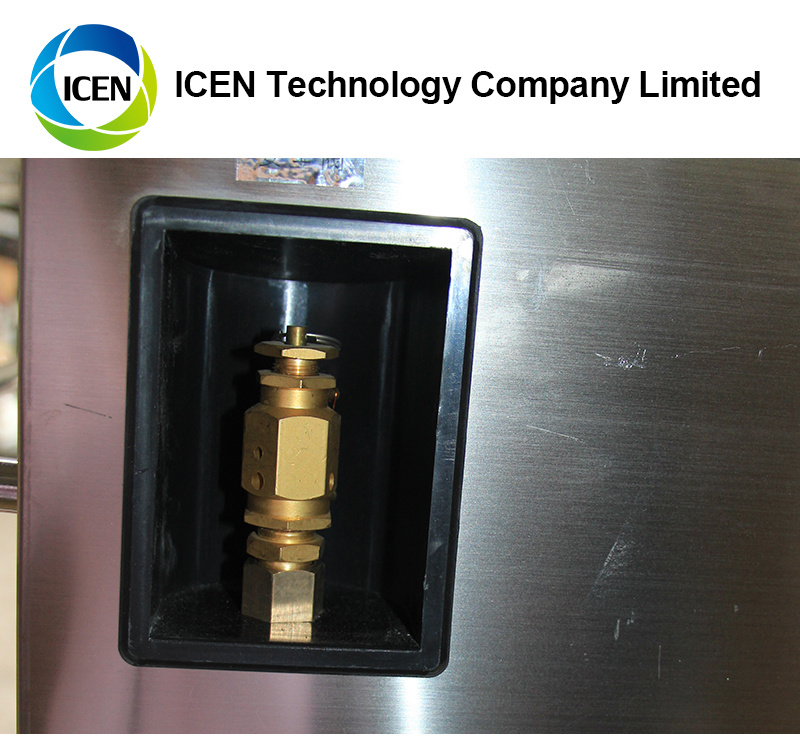

3.Pressure safety lock |

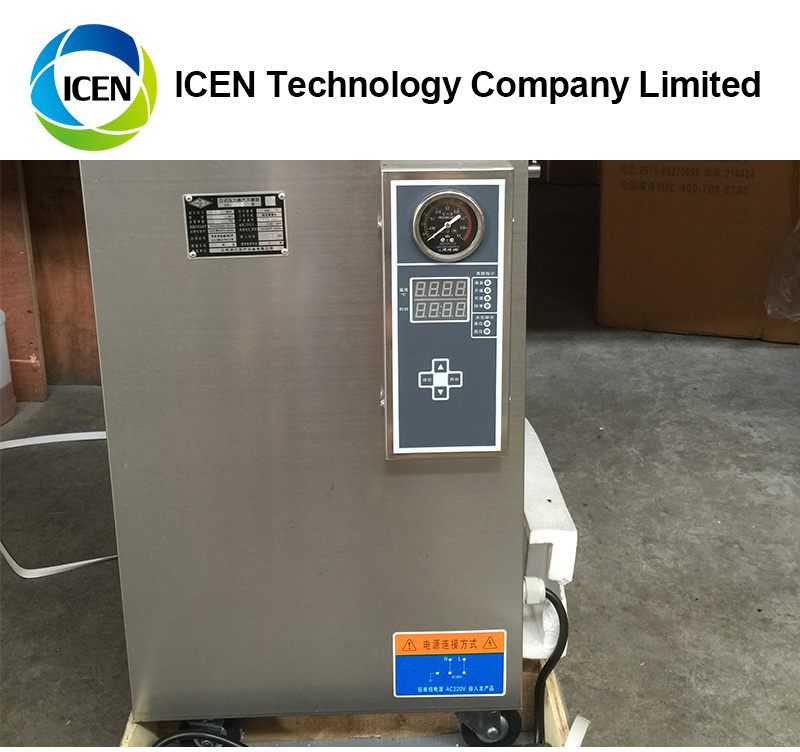

4.Indicator light indicates working state |
5.Over temperature & over pressure auto-protection |
6.Double scale indication pressure gauge |
7.Self inflating type seal |
8.Safe protection of water lacking |
9.Automatically shut off with beep reminding after sterilization |
10.Easy to operate,safe and reliable |
11.With two stainless steel sterilizing basket |
Modeltechnical data | IN-35HJ | IN-50HJ | IN-75HJ | IN-100HJ |
Chambervolume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
workingpressure | 0.22MPa | 0.14MPa | ||
Working temperature | 134ºC | 126ºC | ||
Max working pressure | 0.23 Mpa | 0.165MPa | ||
Heat average | ≤±1ºC | |||
Timer | 0~60min | |||
Adjustment of temperature | 105~134ºC | 105~126ºC | ||
Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120(mm) | 540×560×1250(mm) |
Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
G.W/N.W | 72Kg/ 56Kg | 88Kg/ 68Kg | 100Kg/80Kg | 110Kg/85Kg |
