- Model NO.：
- FSF-35HG
- Certification：
- CE, ISO13485

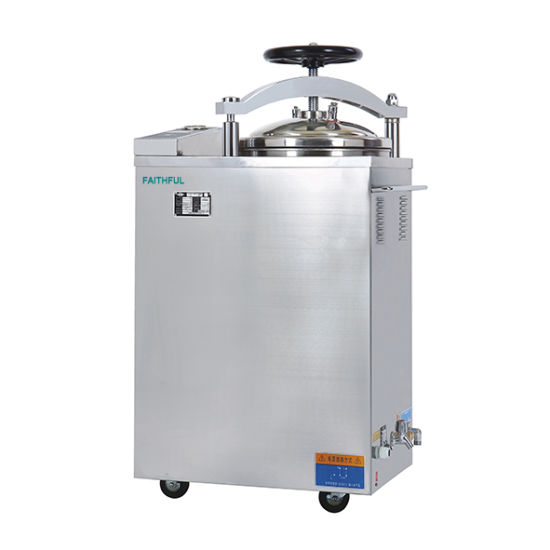

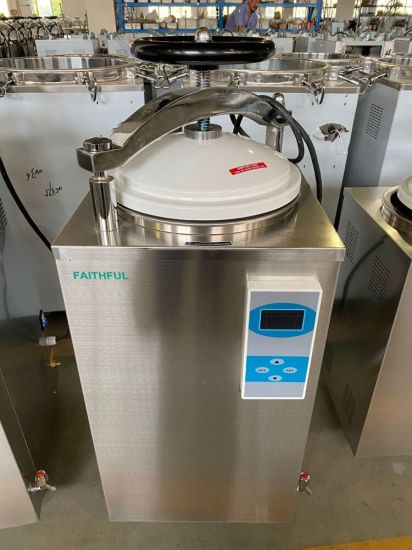

Electric-heated Vertical Steam Sterilizer
Characteristics:
1 -Fully stainless steel structure.
2.Hand wheel type of quick-open door structure.
3. Door safety lock system.
4.Automatically controlled by computer.
5.Digital display of working status, touch of key.
6.0ver temperature & over pressure auto-protection.
7.Steam-water inner circulation system: no steam dis- charge, and the environment for sterilizing will be clean and dry.
8. Self-inflating type seal.
9.Safe protection of water lacking.
10. The drying system is optional, which can be equipped according to the customers' request.
11 . Automatically shut off with beep reminding after ster- ilization.
12.With two stainless steel .sterilizing baskets.
Main Technical Parameters
Model | FSF-35HG | FSF-50HG | FSF-75HG | FSF-100HG |
Capacity | 35L(φ318*450)mm | 50L(φ340*550)mm | 75L(φ400*600)mm | 100L(φ440*650)mm |
Working pressure | 0.22Mpa | |||
Working temperature | 134ºC | |||
Temperature range | 0-134ºC | |||
Timer | 0-99min or 0-99hour 59 min | |||
Heat average | ≤±1ºC | |||
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | |
Exterior size(mm) | 600*410*1030 | 650*400*1140 | 690*470*1140 | 730*510*1270 |
Packing size(mm) | 730*500*1170 | 730*5800*1290 | 760*500*1290 | 820*600*1380 |
G.W/E.W | 96/77kg | 102/83kg | 120/98kg | 135/110kg |
