Production Instruction

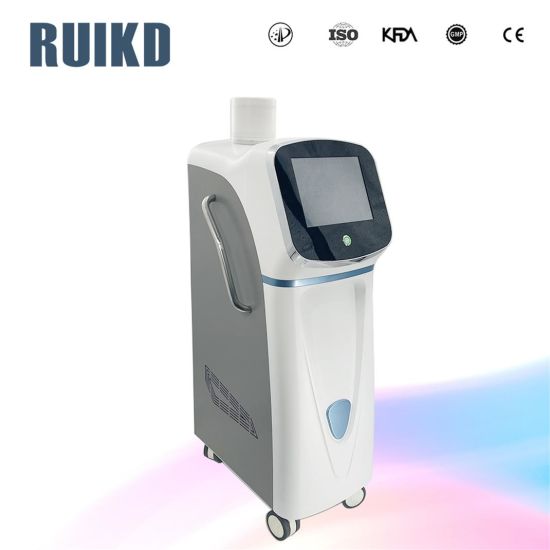

Intensivepulsed light Robot disinfection machine is a new type of environmental protection and high-efficiency sterilization product. based on the principle of pulsed xenon lamp high-pressure ionization polarization luminescence, through high-intensity ultraviolet band light, it can effectively and quickly inactivate all kinds of microorganisms on the surface of objects and in the air, to achieve the result of disinfection & sterilization.
Principle
This UV-C Robot uses the spectrum distribution is similar to the sunlight (100-1100nm), which is composed of ultraviolet (100-400nm), visible light (400-700nm) and infrared light (700-1100nm). Itsultraviolet light intensity is 200000 times of that ofsunlight reaching the ground.By using the principle of xenon to generate ultraviolet pulses, and through a special xenon lamp as the light source to generate high-intensity pulsed light which gathers high energy in a short time and releases it instantly in the form of light radiation.It can destroys the DNA & RNA, breaks the S-H and C-H bonds of organic molecules, and can effectively kills mold andgram-positive disease Bacteria, Gram-negative pathogens, aerobic bacterial spores and fungal conidia, Staphylococcus aureus, Bacillus subtilis, yeast and other bacteria can inhibit the reproduction of bacteria in a certain period of timeetc, and greatly improve the disinfection effect (killing rate of main pathogenic microorganisms > 99.9%) and time.
Applications
Due to the disadvantages of traditional UV disinfection technology, such as long disinfection time, low disinfection efficiency and mercury pollution, whichis difficult to meet the demandofthemodern disinfection market. This UV-C Robotadopts intensive pulsed light sterilization technology, which is not only greatly shortens the working timesrequired for sterilization, but also improves the sterilization efficiency and mercury free environmental protection. It is especially suitable for wards, clinics, operating rooms, hotels, airports, schools, restaurants and spas andother public places.to achieve high-efficiency sterilization to obtain a
safe and sterile environment.
Features1.Fast and efficient sterilization
2.Decompose the chemical pollutants (such as formaldehyde&benzene etc.) of the airand the surface of the subjects, and quickly purify the environment.
3. The Cold sterilization technology has no effect on the temperature-sensitive objects.
4.No need to preheat, it is on and off immediately, and the usage is efficient.
5.Environmental protection, no mercury, no pollution for the environment.
6.Low energy consumption and long service life of the lamp source
7.Produce slight ozone, to assist sterilization
8.It is suitable for a wide range of occasions: hospitals, public places, food manufacturing (to maintain food nutrients), and also provide solutions for central air conditioning sterilization (legionella).
9.Solve the existing traditional problems of long sterilization time, low efficiency, environmental protection, and dead angles.
10.Intelligent voice prompts to ensure safety.
Functions1).One-key sterilization
With the default sterilization mode by one-key start, it can destroys the cell structure of microorganisms by using the photochemical, photothermal and pulse effects of intense pulsed light, to quickly and efficiently obtain a safe and sterile medical environment.
2).Man-machine separation
Through the delay start or remote control function, the operator can be separated from the sterilization device to protect personal safety.
3). Remote control
Through the mobile terminal app, the working mode can be selected remotely to carry out sterilization operation.
4).Intrusion protection
Personnel intrusion detection & protection, to avoid personnel entering by mistake and being exposed to strong light radiation during sterilization operation.
Specification| Name | Intensive Pulse Light Disinfection Machine (UV-C Robot) |
| Light Source | Pulse Light Lamp |
| Effective Wavelength | 200-400nm |
| Voltage | 110-220v |
| Disinfection Area | 25 square metres |
| Frequency | 1-3HZ |
| Disinfection time | 5-10minutes |
| Lamp service time | 3 million times |
| Warranty period | 1 year |
| Lamp power | 1800w |
