- Model NO.：
- MSLTA28
- Certification：
- CE, ISO13485
Product Description1. INSTRUCTION

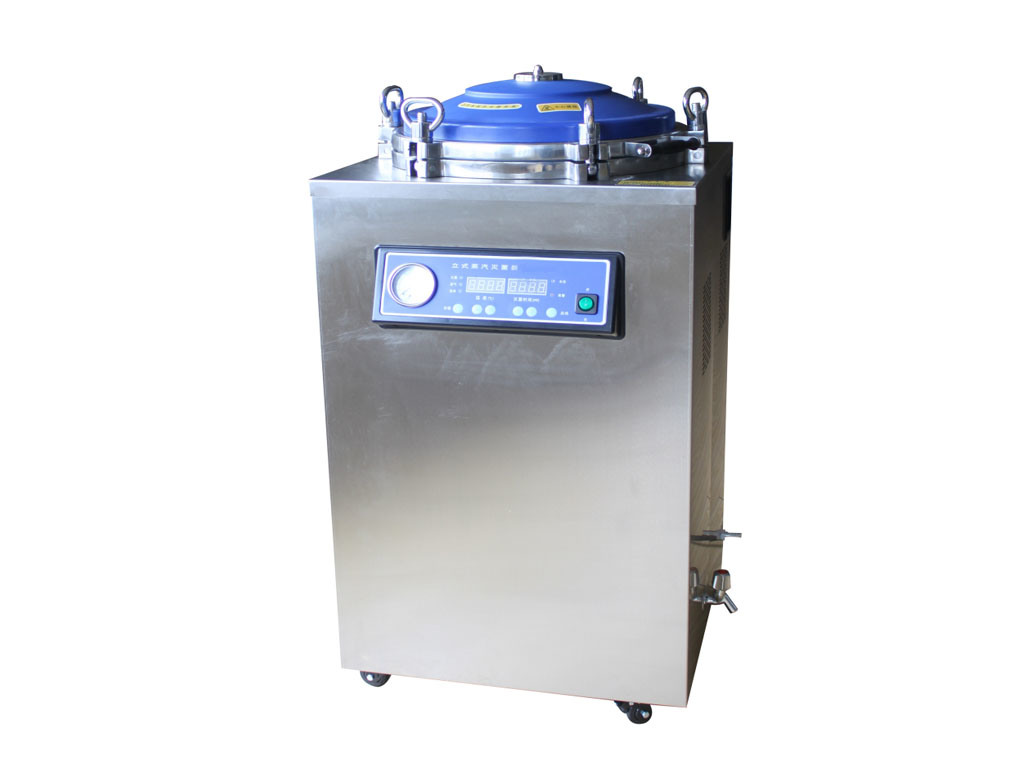

Welcome to use DENGGUAN MEDICAL vertical steam sterilizer.(below we called autoclave or machine or device)
This instruction introduces the operation steps, so ensure using this product correctly,please reading this instruction carefully.
Our company ensure the quality of products, according to regulations of the country and industry , our company provides three guarantees about one year(except quick-wear part) and takes responsibility for the problems with the quality of the product.
When you meet any problems during using this product, you can ask our company for free. Our company provides hotheaded services to you.Our company promises our company or the person who had been authorized can provide the information about fixing machine when it is indeed.
2. SAFETY INSTRUCTIonSPlease read the manual carefully before use and understand all the warnings and the requirements. The user must check the safety performance of the sterilizer to ensure the sterilizer is in good condition.The sterilizer shall be used in accordance with the scope of application, method of use, precautions specified in this manual, otherwise, it may damage the protection provided by this sterilizer which will cause the failure of the sterilization.The equipment is supplied with some safety protection devices to prevent the operator from the injury and the equipment damage. The operator should know the rules before starting the operation.For operating personnel requirements: The operator must pass the training of equipment performance characteristics, working principle, field operation, etc and has certain sterilization process knowledge. The operator must read and know carefully about the manual before they start the operate.In the design and manufacturing process, we have fully considered the safety of this product, but the operator should check and observe the working state of the equipment frequently.The connection of the power supply shall comply with the requirements of the national electrical safety standards. When the voltage fluctuation exceeds 10%, the equipment may not work properly.The equipment meets the requirements of GB/T 18268.1-2010. The user should evaluate the electromagnetic environment before use in order to ensure the normal operation.The equipment meets the safety requirements of GB 4793.1-2007,GB 4793.4-2007.The safety valve and other instruments should be inspected regularly according to the state regulations.The power must be cut off before the installation of fuse of electrical maintenance.In order to ensure the safety of use and avoid electric shock damage, the equipment must be well grounded. Please do not change the grounding protection line inside or outside of the equipment or remove the connection of grounding protection section, otherwise, the protective function of the equipment will be invalid and the electric shock will be dangerous.The user should pay attention and be away from the hot area, such as the vent, drain, so as to avoid scald.When the equipment fails, the power supply must be disconnected immediately. The power supply can be reconnected when the faults remove.The equipment and the attachments should be used within the prescribed life span. Overdue use may bring safety risks.Therefore, the user should check the safety before each use and replace in time.If there is interfere in the power grid during the use of this equipment, it may appear the phenomenon of white screen. The users can use a voltage regulator to solve the problem.3. BRIEF
The Btype steam sterilizeris the sterilization equipment that can sterilize medical equipment, surgical dressing, medicine liquid, glassware etc by saturated steam. They enjoy follow merits such as fashionable and attractive appearance, reasonably frame, multiple functions, fast heating, complete disinfection.
Purpose:they are used to sterilize follow goods by clinical medical treatment organization: medical equipment, dressing, glassware and culture medium.
Product forbidden: non
Location: medical and health institutions, surgery and laboratory.
Intended for people : personnel of medical and health work units.
4. FEATURES Vertical steam sterilizerare made by shell , sterilizing chamber, steamer, pipe network and control system. According to the sterilizing function, they are divided into normal (A type), auto-control (b TYPE) .According to the volume of sterile chamber, they are divided into 30L, 35L, 40L, 50L,60L,75L ,80L,100Land 150LShapes are square vertical. Sterilization barrel's shell and themselves are made by stainless steel. Sterilization barrel(pressure vessel)and safety accessory conform to GB 150,<special equipment's safety regulation> and nationality legal pressure vessel provisions by laws and regulations, they must have nameplate and quality certificates that were registed on the legal pressure vessel safety supervision organization.3,safety valve is fixed on vessel's cover. It can release over pressure to sure equipment's safety when inner pressure exceeds 0.24MPa.
4,During heating and warming,deflation valve ,that is controlled by temperature controller, will discharge cold air automatically. when the temperature on temperature controller exceed 102ºC,deflation valve will auto closes after several minutes. Then equipment goes into auto intermittent deflated function and rise the vessel's steam saturated degree, lt can add sterilization effect.
5,operating front panel includes pressure gauge that shows pressure state clearly.
6,They can defense by themselves. Circuit can auto shut off when short warter in vessel,heater auto stops operating,protect the equipment in effect. At the same time, water indicator light is red colour to remind user to add water until enough.Detailed Photos
Product Parameters| Seq. | type | volume | Pressure limit | Sterilizing temperature limit | Range of sterilizing time | Power KW |
| 1 | MSLTA28A | 35L±3 | 0.22MPa | 134ºC | 4-120min | 2.0 |
| 2 | MSLTA28B | 50L±5 | 3.5 | |||
| 3 | MSLTA28C | 75L±5 | 4.5 | |||
| 4 | MSLTA28D | 100L±10 | 4.5 | |||
| 5 | MSLTA28F | 100L±10 | 6.5 | |||
| 6 | ||||||
| 7 | ||||||
| 8 | ||||||
| 9 |
2.Rated operating pressure:0.22MPa; rated operating temperature:134ºC.
3. when normal operation on sterilization's circle, noisy shouldn't be more than 65dB, portable type shouldn't be more than 70dB(A).
4. setting sterilization temperature scope:50ºC~134ºC. Sterilizing time scope that can be set:60min / 4~120min;drying time scope that can be set:5~240min (drying type sterilizer).
5.safety class:class I.
6.Use it in environmental temperature:+5ºC~+40ºC;relative humidity:no more than 85%;atmospheric pressure 70kPa~106kPa.
7.the used water shouldn't effect sterilizing process, damage vessel or sterilizing items
The water quality must meet theYY 1007-2010annex A standard.Certifications
