- Model NO.：
- VMC640
- Certification：
- CE, ISO 9001

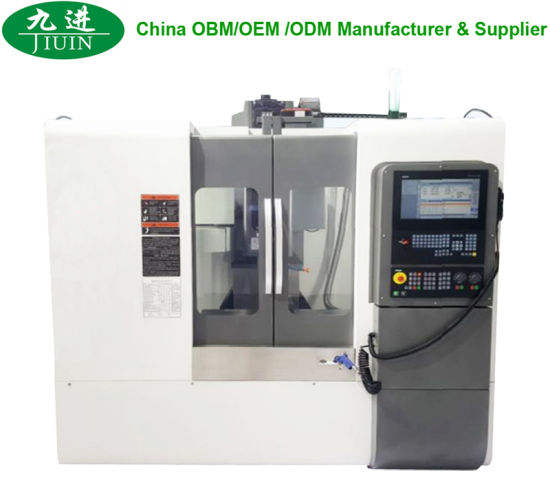

| Small Size High Precision Positioning VMC Vertical Machining Center CNC Milling Boring Drilling and Reaming Machine |
| Product Performance | |||
| Drilling, boring, milling, expanding, reaming, tapping, linear interpolation, circular interpolation, spiral interpolation, three coordinate linkage and other functions. |
| Technical Parameters |
| Technical Parameters | Unit | VMC640 |
| Travels | ||
| X/Y/Z Axis | mm | 650/400/500 |
| Distance from spindle nose to table | mm | 120-620 |
| Work table | ||
| Size (L x W) | mm | 920x400 |
| T-Slot (width x slot number x spacing) | mm | 14x3x120 |
| Maximum loading capacity | kg | 300 |
| Spindle | ||
| Speed | rpm | 40-6000 |
| Taper | # | BT40 |
| Spindle motor power | kw | 5.5/7.5 |
| Feed rate | ||
| Rapid feed rate(X/Y/Z) | m/min | 30/30/18 |
| Cutting feed rate(X/Y/Z) | mm/min | 1-10000 |
| Auto tool change system | ||
| Tool magazine capacity | pcs | 16 |
| Maximum outside diameter of tool | mm | 78 |
| Maximum weight of tool | kg | 8 |
| Time of tool change (Tool to Tool) | sec | 1.5 |
| Accuracy | ||
| Positioning accuracy | mm | 0.005/300 JIS |
| Repeated positioning accuracy | mm | 0.003 JIS |
| CNC control system | ||
| Controller | # | FANUC |
| Others | ||
| Air Pressure | Mpa | 0.5-0.7 |
| Overall dimension (LxWxH) | mm | 2180x2535x2280 |
| Weight | kg | 3500 |
| Product Feature |
| 1.Taiwan high speed spindle. 2.Linear guideways on X,Y, box guide ways on Z axis. 3.Full protection and electric cabinet, safe and beautiful. 4. Taiwan ballscrew, Japan bearing. 5.Taiwan famous tool magazine | |
| Product Configuration |
| Standard: 1. Three axes utilize C3 grade ball screw of Taiwan PMI or HIWIN. 2. Three axes utilize WH or P grade linear guideway of Taiwan PMI or HIWIN. 3. Three axes utilize P4 grade bearings of NSK. 4. Volumetric lubricator. 5. X axis utilizes accordion shield, Y axis utilizes steel plate shield. 6. Coupler from Taiwan. | |
| Product Details |

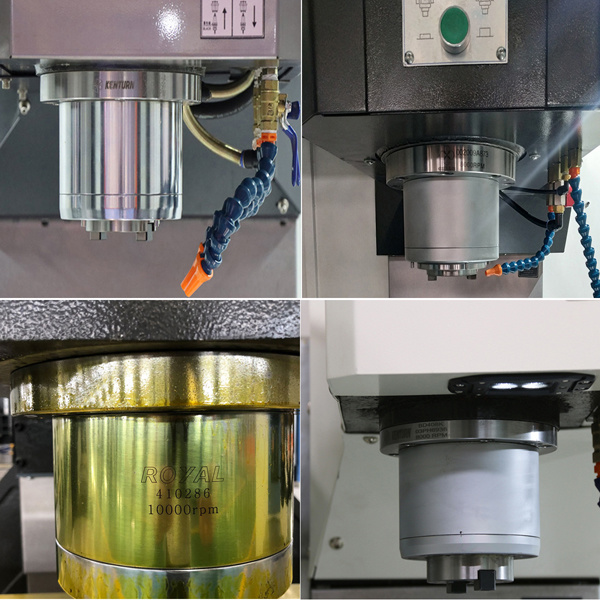

| Spindles utilize KEYTURN, CELLS, HANN KUEN, POSA, ROYAL and other famous brands. |  |

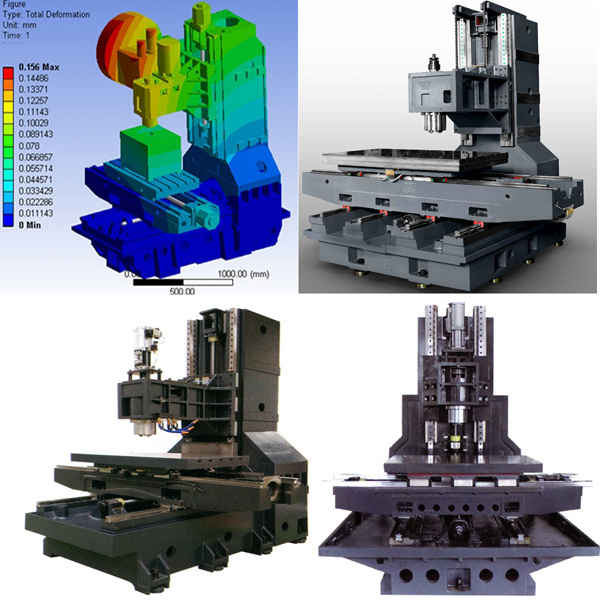

| FEM finite element analysis and optimizing technique are used in the overall structure design of the machine to obtain higher rigidity. |  |

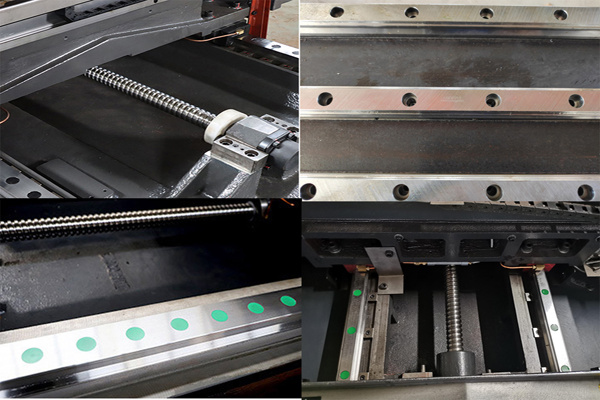

| C3 Grade ball screwsutilize Taiwan famous brand PMI and HIWIN. WH/PGrade linear guideway utilize Taiwan famous brand PMI and HIWIN. |  |

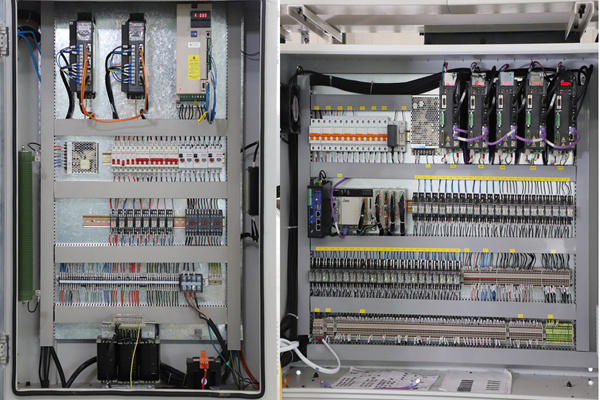

| Electrical components utilize Schneider, Siemens, Omronand other famous brands. |  |

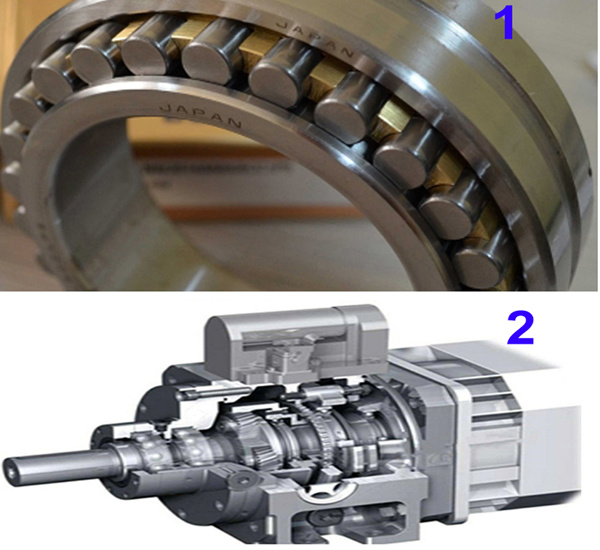

| 1.P4 Grade bearings utilize Japan NSK and Germany FAG. 2.Gearbox utilizes German GF. |  |

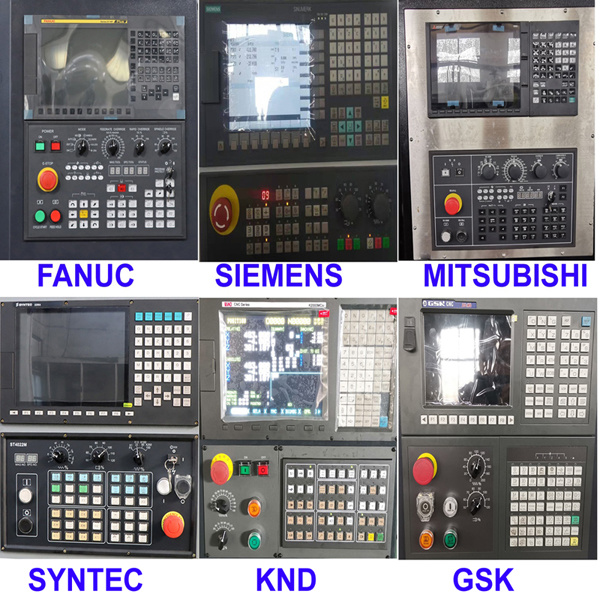

| Control System ofFANUC, SIEMENS, MITSUBISHI, SYNTEC,KND, GSKand others are available. |  |
| Product Application | |||

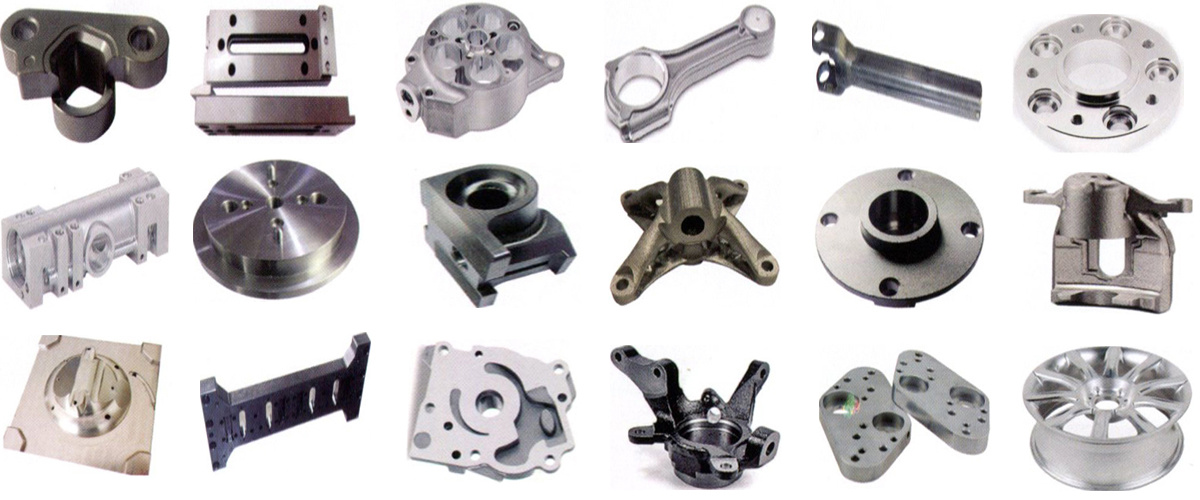

| These machines are mainly used in aerospace, shipbuilding, power generation, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries. |
 |
| Our Suppliers | |||
| FANUC | MITSUBISHI | SIEMENS | HEIDENHAIN |
| FAGOR | SYNTEC | GSK | KND |
| KEYTURN | NSK | PMI | NTN |
| HIWIN | SCHNEIDER | RENISHAW | GF |
| OMRON | SMC | SKF | SHOWA |

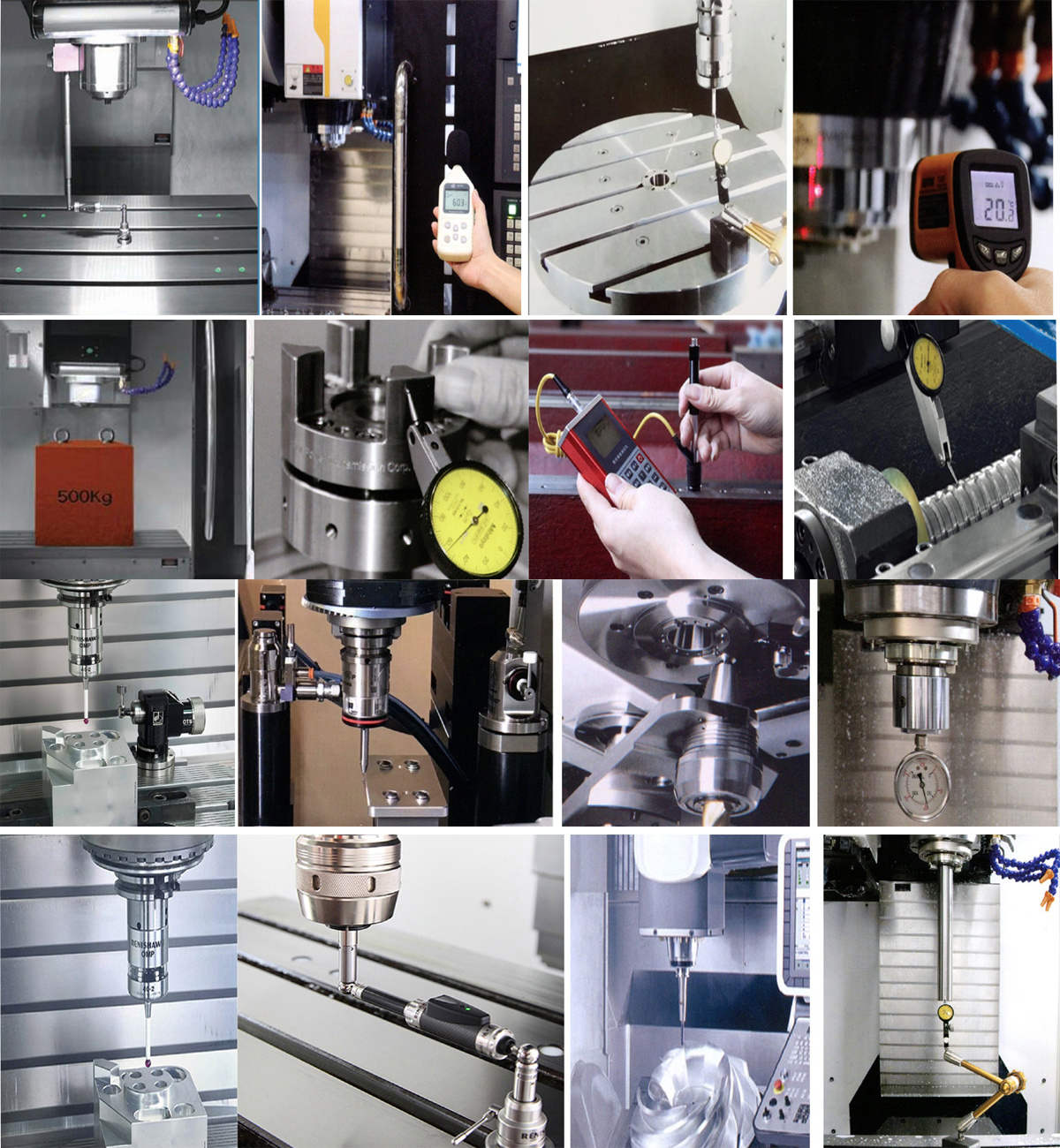

| Test & Inspection | |||
| We have our own professional testing center with number of precision measurement instruments imported from the UK and the United States. Every product must pass strict quality inspection before leaving the factory to ensure the quality of products. |
 |
| Our Company |

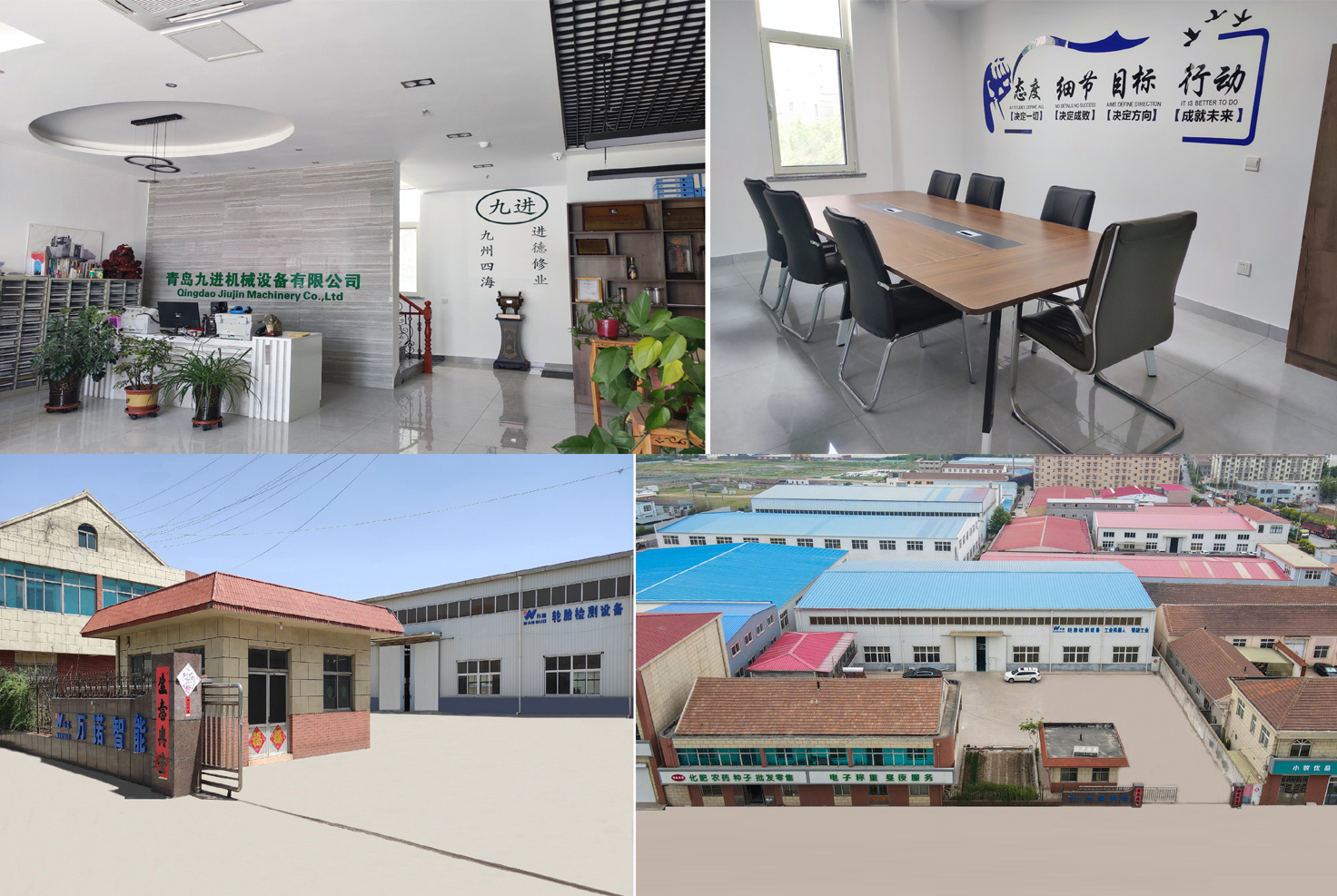

| Qingdao Jiujin Machinery Co., Ltd is located in Nanquan industrial park, Jimo District, Qingdao, China. It takes half an hour to Qingdao port. Convenient transportation will ensure delivery on time. Jiujin machinery has rich experience of serving big customers such as HYUNDAI, KIA and others with over 20 years' experience of R&D, production, assembly, inspection and after-service team. You will be provided with fully customized OEM service and new products. Jiujin machinery attends five time exhibitions every year averagely to communicate with current customers, find new customers, update new products, make market research as well as provide professional machine solutions based on market and customer demand periodically. Jiujin machinery has his own professional testing center with several of precision measurement instruments imported from the UK and the United States. Every product must pass strict quality inspection before leaving the factory to ensure the quality of products. |
 |
| Why Choose Qingdao Jiujin Machinery? | |||
| 1. Convenient transportation will ensure delivery on time with taking onLY 30 Minutes to Qingdao port. 2. Over 20 years experience in serving big customers such as HYUNDAI, KIA and others. 3. Professional industry and trade company in this field over two decades. 4. Communicate with current customers, update new products, make market research as well as provide professional machine solutions based on market and customer demand by attending average five times trade exhibitions every year. 5. Ensure the quality of products with having our own professional testing center with number of precision measurement instruments imported from the UK and the United States. |
