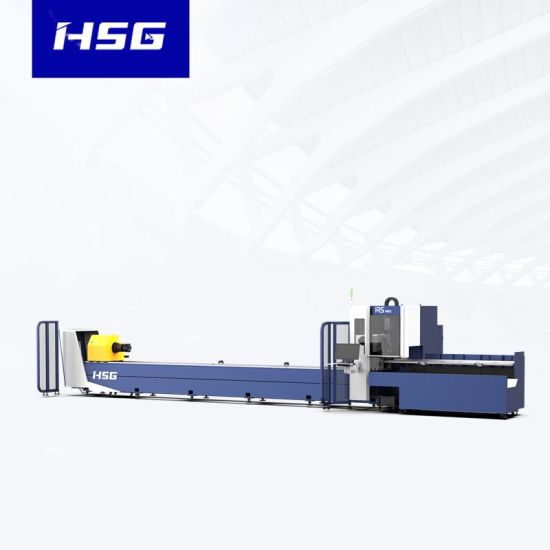

Product Type: R5 II Professional Full-automatic Tube Laser Cutting Machine 1500W - 4000W
The point of R5 II

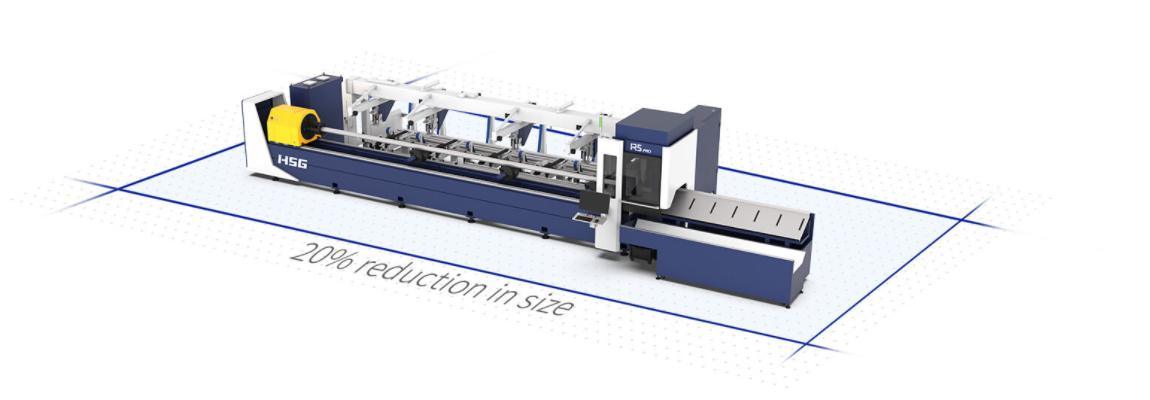

1.Small Size with Wide Functions
R5 II is 20% smaller in size than same-grade models and easily operated in a crowded workshop, helping to make the utmost of workshop.

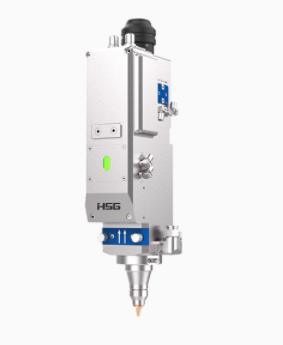

2.Autofocus Laser Cutting Head
KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens for long service life.
Self-developed by HSG LASERAutofocus accuracy ±0.01mmGood flow control for mirror-like surface cutting by less gasconsumptionPrevent spark splashing and scalds by SS protective pipes

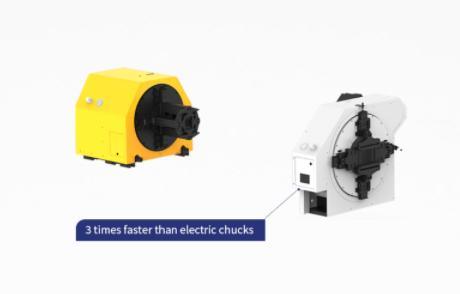

3.Unique Squircle Double Pneumatic Chuck
4.HSG-X9000 Bus CNC System
X9000, based on German CNC bus control system, is compatible with conventional tubes and various profiles. With rich auxiliary functions, such as, tube error detection and welds check, X9000 can make laser cutting simple, automatic and intelligent.
5.Intelligent Production Line
Turning Plates for Unloading
Convey finished heavy tubes stably from high to low while unloading and protect tubes from any possible harm and scratch
Full-/Semi-automatic Loading Device (Optional)
Reduce labor intensity, save labor force and make cutting efficient
Product Parameters| Technical Parameters | R5 II |
| Power | 1500-4000W |
| X/Y-axis Positioning Accuracy | ±0.03mm/m |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Max. No-load Speed | 100m/min |
| Max. Acceleration | 1.0G |
| Max. Rotating Speed of Chucks | 100r/min |
| Round Tube Processing Dim | Φ20-Φ240mm |
| Square Tube Processing Dim | 20*20-240*240mm |
| Max. Length of Tube | 6500mm |
| Max. Weight of Single Tube | 200kg |
| Min. Tailing | 85mm |
| Overall Dimensions (L*W*H) | 12400*3100*2500mm |

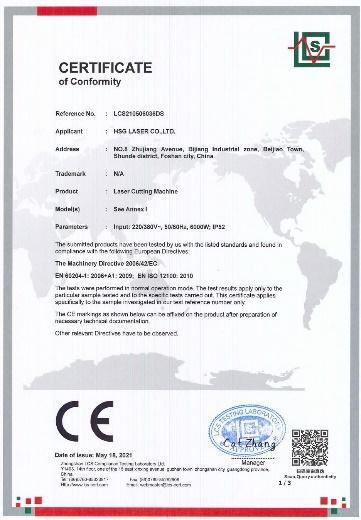

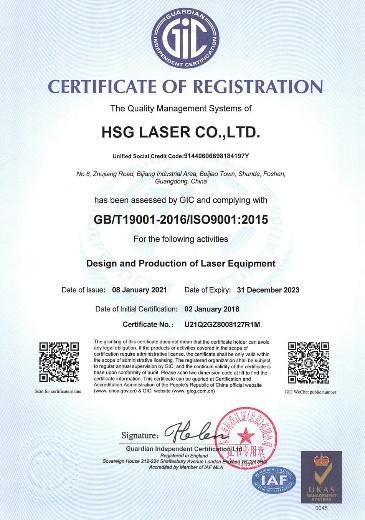

Certifications
Packaging & Shipping
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 16 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
