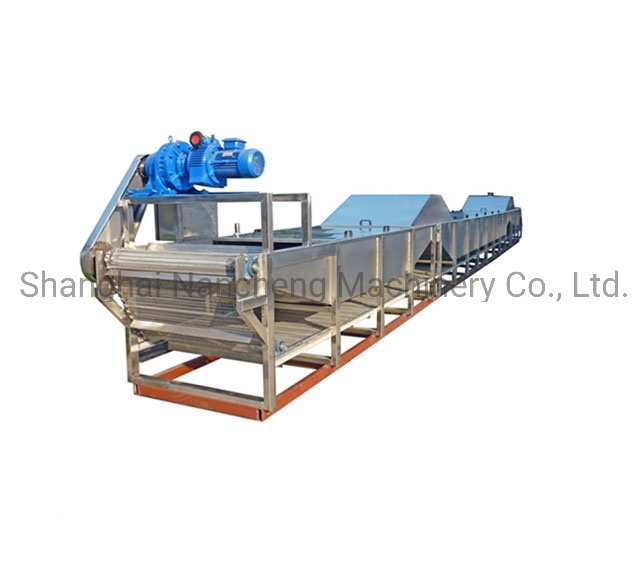

Food Grade Continuous Water Bathing Type Sterilizer
Specifications:
Food sanitary stainless steelSuitable for sterilizing to glass bottle,cans,jelly..etc
PLC touch screen control

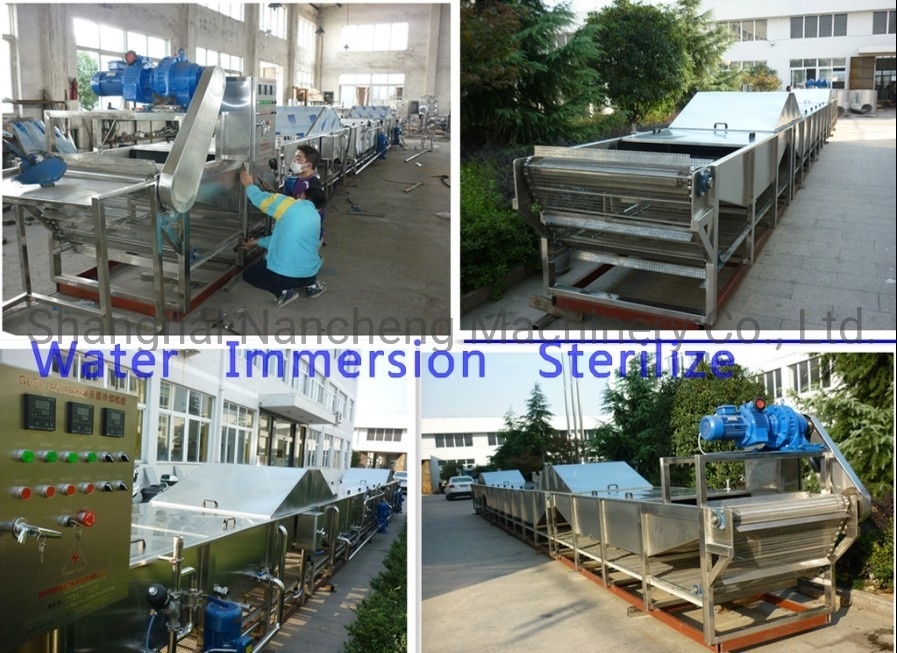

The Continuous Water Soaking Sterilizer is newly designed on the basis of Japanese light industry technology. It is specially applied for second time sterilization of dairy, beverage and jelly products. All direct contact of the product is made of SUS304 stainless steel, and the large chain board and chain wheel are also made of the same stainless steel material. It has the functions of anti-acid, anti-alkali, anti-corrosion. The water tank is heated by steam, and the steam volume is automatically controlled by steam solenoid valve. The hot water can be completely used. The whole machine has asimple design, fine manufacturing, stable operation and beautiful appearance.
Technical parameter
Production capacity | 1000-5000 L/h |
Sterilizing temperature | < 98 ºC (can be decided by customer) |
Sterilizing time | 10-35 min (adjustable speed) |
Cooling temperature | 20 ºC |
Cooling time | 10-25 min (adjustable speed) |
Steam pressure | 0.4 Mpa |
link belt speed | 0.17 -10 m/min (adjustable) |
Centrifuge blower fan | 3 kW |
Weight | 6000 kg |
Size (mm) | 1600x2600x 2000 |
Our Services
1.Providefor equipment inspection certificate and manual, to ensure that users properly install and use.
2.Equipment to reach the destination, the company will send engineers to guide installation and commissioning and customer training until satisfied.
3. The warranty period will be free to customers wearing accessories, after one year warranty period, our company to provide parts at cost.
4.we provide lifelong maintenance service, including if necessary, to send engineers to the customer at the service.
