The1year
- Model NO.：
- LHS-24C
- Certification：
- ISO13485
The company specializes in the production of steam pressure sterilizer, which is widely use in the sterilization of instruments, measuring tools,accessories, utensils, culture media and other items.
Take pressure steam as medium, carry on thorough and effective sterilization.
It is widely used in hospitals, clinics health care centers, pharmaceutical factories, food factories, laboratories, beauty agencies, teaching, scientific research,agriculture and other disinfection and sterilization places.
Details:
1.Adopt Mechanical automatic temperature control.
The corresponding functions of the instruments could be adjusted on the operation panel according to the needs of sterilization.
After sterilization, the power is to automatic cut off and the alarm is given, is convenient to operate.
2. The structure of safety interlock shift type quick opening cover, when under internal pressure the cover will not be opened, so it is safe and convenient to use.
3. Equipped with liquid level device, low water level alarm and power-off function,container water shortage,electric circuit will cut-off and alarm automatically, the heater will stop, effective protect the equipment.
4. Equipped with double scale pressure gauge, display internal pressure and temperature at the same time, to read parameters intuitively and accurately.
5. Equipped with full open safety valve, release valve,excessive pressure self release, constant pressure exhaust, to keep constant pressure,safe and reliable.
6. Immersion stainless steel electric heating pipe is adopted, which has longer service life
7. Self expanding sealing ring is more safer and convenient.
8. Use water tap to drain water and avoid scald.
9. Double layer safety protection, fashionable and beautiful.
Parameter of Pressure Steam Sterilizer
| Model | LHS-8C | LHS-12C | LHS-18C | LHS-24C |
| Volume | 8L | 12L | 18L | 24L |
| Voltage | 220V | 220V | 220V | 220V |
| Power | 2KW | 2KW | 2KW | 2KW |
| Working temperature | 126ºC | 126ºC | 126ºC | 126ºC |
| Working pressure | 0.142Mpa | 0.142Mpa | 0.142Mpa | 0.142Mpa |
| Sterilizing room size | Φ240*130mm | Φ240*240mm | Φ260*270mm | Φ260*380mm |
| Weight | 8kg | 9kg | 14.5kg | 16.5kg |
| Packing size | 40* 40* 54cm | 40* 40* 64cm | 40* 40* 66cm | 40* 40* 77cm |

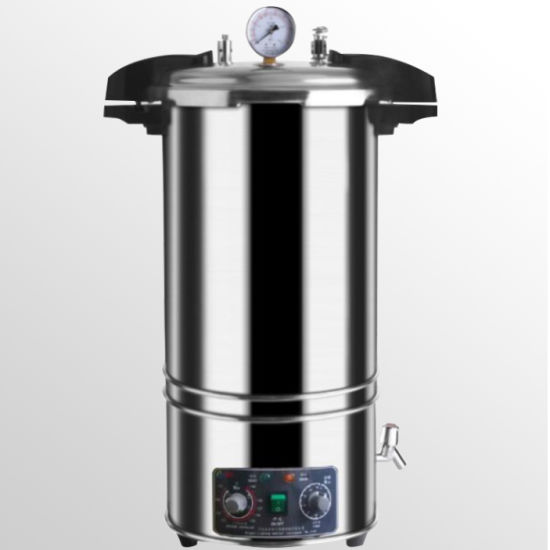

Images of Pressure Steam Sterilizer
LHS-8C
LHS-12C
LHS-18C
LHS-24C
