The1year
- Model NO.：
- 14L, 17L, 23L
- Certification：
- CE, ISO13485
2. Pass CE, ISO9001, ISO13485
3. Multi-language
4. Full automatic operations
5. Usb connector or printer
6. New type of separte steam gentator
7. Multi-language convient for the dentist.
8. The temperature accurate to the first decimal place, the pressure accurate to the second decimal place.
9. Have very detail print. Can make the record of monitoring temperature and pressure per 6 seconds.
10. Automaticly door lock system
11. LCD display, 10programs easy to choose
12. Automaticlly feeding water and excess water and air to be drained away.
13. Show the reason of failure on LCD directly
14. Connector for USB and outprinter or internal printer
SafetyDevices:
a. Overheatcontrol: Wheninnertemperatureisoverheated, powerwillbeshutdown
automaticallyandalarmsystem
b.Overpressurecontrol:ithasalarmsystemwhenoverpressure.
c.Safetydoorlocksystem
d.Lowwaterlevelindictor: Ithasalarmsystemwhenlowwater
Warranty: 2 years warranty time ! during this period, we will supply you free parts for maintenance if necessary ! out of date you should bear the freight and spare parts cost ! of course we will support you technical service for lifetime !
After service:
Please contact with the telephone and emails at any time.
Because of the time difference, therefore, sending Email is thebest and convenient way to contact us.Upon receipt of your e-mail, wegive you reply immediately,offering solutions to equipment failures. Tonsor will extend the greatest effort to help your getting spare parts, speeding up your feed-back to customer demand.
QC:
100% inspection and random check on the parts and machine, ensure 100% products with high quality.

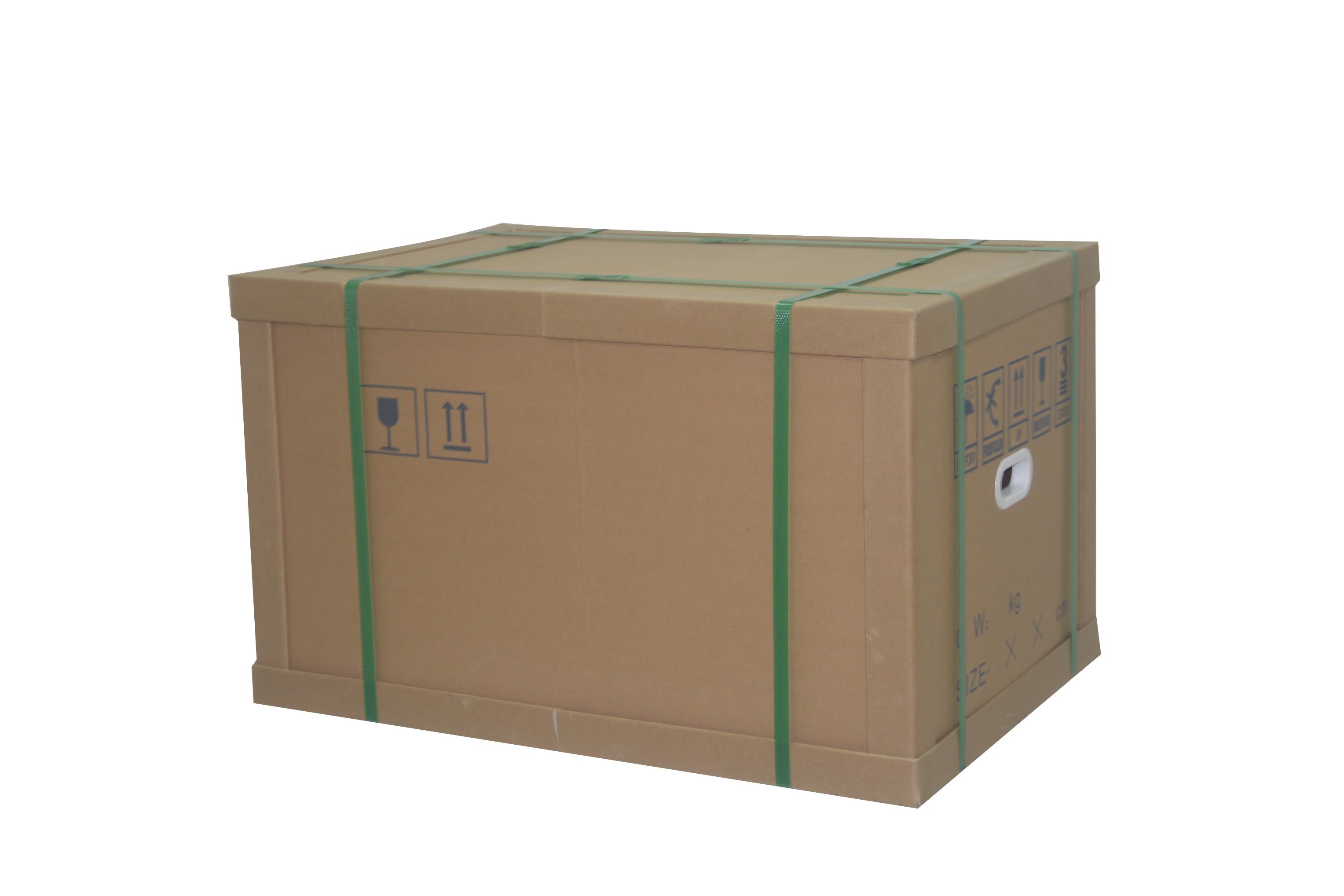

Package: 1PCS/CTN
14L : 67 x 58x 48 CM
17L : 67 x 58 x 48 CM
23L: 79 x 58 x 48 CM
Transportation: by air, by sea, by express if you like . as my experience, for sample order, under 3 units, you can choose to delivery by DHL, it is more convenient and faster than other 2 ways ! but it will be much more expensive than others !
Delivery time : we can delivery your machines within 4 days after receiving your payment if under 5 units !
| Model | T& S 14B+ | T& S 17B+ | T& S 23B+ |
| Chamber Dimensions(mm)(Φ × D) | 250× 270 | 250× 380 | 250× 500 |
| Chamber Capacity(liter) | 14L | 17L | 23L |
| Overall Size(cm)(L× W× H) | 48× 48× 52 | 48× 48× 52 | 48× 67× 42 |
| Heater | 1600W | 1800W | 2000W |
| NetWeight(KGS) | 37 | 46.5 | 56 |
| GrossWeight(KGS) | 45 | 55 | 65 |
| Packing Size(cm) | 68× 60× 50 | 73× 60× 50 | 87× 60× 50 |
| Minimum DesSize(cm) | 48× 35 | 48× 35 | 48× 5 |
| PowerSupply | 220± 10%, 50/60HZ, 10A | ||
| Sterilize | Temperature121/134 | ||
| Sterilize Time | Please refertodifferentprograms. | ||
| Dry Procedure | Vacuum drying | ||
| Sterilizer Construction | Stainless steel SUS#304 | ||
| Water tank | internal | ||
| Stainless steel instrument container: | 5 trays | ||
