The1year
- Model NO.：
- YWM60
- Certification：
- CE, ISO13485

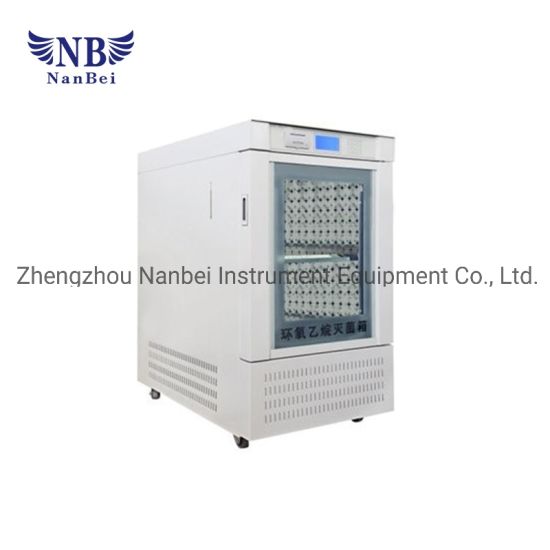

Medical disinfection ethylene oxide sterilizer With CE certificate
The scope of application of epoxy ethane sterilizer:
1. Medical supplies: operation instrument, syringe, infusion, catheters, birth control equipment.
2. Medical devices: endoscope, cardiac pacemaker, artificial heart, medical telephone, dialyzer, aspirator.
3.Health supplies: lady napkins, disposable tableware etc..
4. Medicine: Chinese medicine and Western medicine, cosmetics.
5. Textiles and biological products: cotton fiber, leather clothing, blankets, brush etc..
6. Instruments: electronic instrument, optical instrument, telephone etc..
7. Other: money, tickets, records, files, correspondence, collection of historical relics, silk satin products, animal specimens.
The products using epoxy ethane mixed gas, flame retardant, anti explosion, safety (temperature, pressure, leakage and other abnormal automatic alarm system for sterilized articles), no corrosion, no pollution to the environment damage.
Product structure:
1.Sterilizing chamber using 304 stainless steel mirror,anticorrosion.
2. A3 steel cabinet,durable.
3. Equipped with a thermal barrier layer
4. Double protective doors,insulation,sealing and leak prevention.
Product Features Configuration:
1.Sterilization process automatic computer control,LCD display panel
2. Sterilizing effect of doubling the anti-leak vacuum pumping system
3. Sterilization efficiency of automatic humidification system
4. Sterile water cycle automatic heating system efficiency
5. Air and water vapor auto exhaust purification of ethylene oxide residue analytical sound processing system.
6. Efficiency and prevent environmental pollution discharge residue heating air purification system
7. Sterilization automatic printing system the whole process (optional)
8. Temperature,pressure,leakage and other abnormalities of the automatic alarm system
9. After the accident off the job site automatic recovery system
Product specification:
Working equipment external ambient temperature:5-60C
The equipment sterilization room temperature:20-60C arbitrarily set.
Temperature accuracy:±1C
Vacuum pressure:-7~-70Kpa, arbitrarily set.
Sterilization time regulation range:1-9h, arbitrarily set.
Sterilization humidity:60%-80%, arbitrarily set.
The number of rows of residues: arbitrarily set.
Resolution time:arbitrarily set.
Clean: arbitrarily set
Voltage: 220v/50Hz
data:
Model | Room size(mm) | External size(mm) | Volume(L) | Power(kw) |
YWM30 | 392*290*320 | 630*440*770 | 30 | 1.1 |
YWM60 | 520*320*400 | 780*480*1020 | 60 | 1.1 |
YWM65 | 570*320*400 | 830*480*1020 | 65 | 1.2 |
YWM150 | 732*420*558 | 900*575*1110 | 150 | 1.4 |
YWM200 | 708*450*670 | 880*650*1370 | 200 | 1.9 |
YWM240 | 510*300*1480 | 690*780*1690 | 240 | 1.9 |
YWM300 | 812*500*802 | 960*700*1500 | 300 | 2.1 |
YWM600 | 1030*630*930 | 1410*850*1700 | 600 | 2.6 |
YWM1000 | 1300*800*1000 | 1700*1020*2000 | 1000 | 3.1 |
FAQ
1.How canIchoose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer,we make sure to offer you the best quality with competitive price.
3.How canIpay?
Dear customer,we accept many payment term, such as T/T, Western Union…
4.WhenIreceive it after pay?
Dear customer,normal models can be delivered with 5-7days, pleasecontactus to check transport time to your address.
5.How to deliver?
Dear customer,we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer,please do not worry, we do standard export package.
7.What shouldIdo ifIdo not know how to use?
Dear customer,please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What shouldIdo if some parts broken?
Dear customer,please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
Pre-sale service
·24hours online to ensure quick response to customers' inquiry or online message;
·Guide customers to choose the best suitable machine model;
·Offer detailed specification and competitive prices;
Contract execution
·Machine production will be arranged strictly according to the contract;
·Machine photos will be sent to you for inspection during production;
·Send customs clearance documents by DHL;
·Update latest news after delivery and prepare customs clearance;

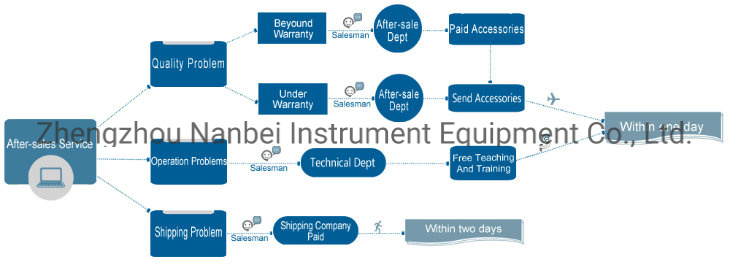

After-sale service
·12 months warranty except for wear parts;
·Broken spare parts (except for wear parts) will be sent for free due to quality problems;
·In time response to customers technical problems;
·New products update for customers' reference
Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales.We are all professional!
Factory Show:
Certification:
Our products have international certifications such as SGS, CE, ISO!
Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
